Why Julia’s GPU-Accelerated ODE Solvers are 20x-100x Faster than Jax and PyTorch

You may have seen the benchmark results and thought, “how the heck are the Julia ODE solvers on GPUs orders of magnitude faster than the GPU-accelerated Python libraries, that can’t be true?” In this talk I will go into detail about the architectural differences between the Julia approaches to generating GPU-accelerated solvers vs the standard ML library approach to GPU usage. By the end of the talk you’ll have a good enough understanding of models of GPU acceleration to understand why this performance difference exists, and the many applications that can take advantage of this performance improvement.

TipLecture Overview

You may have seen the benchmark results and thought, “how the heck are the Julia ODE solvers on GPUs orders of magnitude faster than the GPU-accelerated Python libraries, that can’t be true?” In this talk I will go into detail about the architectural differences between the Julia approaches to generating GPU-accelerated solvers vs the standard ML library approach to GPU usage. By the end of the talk you’ll have a good enough understanding of models of GPU acceleration to understand why this performance difference exists, and the many applications that can take advantage of this performance improvement.

This talk is about the results of the publication titled “Automated translation and accelerated solving of differential equations on multiple GPU platforms” which was published in 2024 demonstrating that the Julia GPU-based ODE solvers, specifically DiffEqGPU.jl, are 20x-100x faster than Jax (diffrax) and PyTorch (torchdiffeq). The publication goes into detail as to the architectural reasons for the performance difference, even going as far as recreating the ML style of GPU acceleration in Julia in order to demonstrate that such an approach loses the performance advantage, along with testing against alternative CUDA C++ implementations of a similar form to showcase exactly the effects of the architectural decisions on the resulting performance. However, as a highly technical article it can many times not be as easy to understand as it should. In this talk we’re going to give a barebones “no HPC background required” explanation of how the Julia GPU stack enables a completely different approach from the “standard” ML libraries form of GPU acceleration, and how for some applications this can be majorly beneficial. We will note that the GPU design of the ML libraries is actually optimal for ML applications, but certain properties of some applications of ODE solvers make it require a completely different formulation.

We will additionally talk about other projects which have seen similar results, such as solving nonlinear systems in Julia (with NonlinearSolve.jl), GPU-accelerated optimization with Optimization.jl, and new global optimizer methods in ParallelParticleSwarms.jl which all rely on this technique and the special aspects of the Julia GPU infrastructure.

Paper

TipSpeakers:

Chris Rackauckas

Dr. Chris Rackauckas is the VP of Modeling and Simulation at JuliaHub, the Director of Scientific Research at Pumas-AI, Co-PI of the Julia Lab at MIT, and the lead developer of the SciML Open Source Software Organization. For his work in mechanistic machine learning, his work is credited for the 15,000x acceleration of NASA Launch Services simulations and recently demonstrated a 60x-570x acceleration over Modelica tools in HVAC simulation, earning Chris the US Air Force Artificial Intelligence Accelerator Scientific Excellence Award. See more at chrisrackauckas.com. He is the lead developer of the Pumas project and received a top presentation award at every ACoP from 2019-2021 for improving methods for uncertainty quantification, automated GPU acceleration of nonlinear mixed effects modeling (NLME), and machine learning assisted construction of NLME models with DeepNLME. For these achievements, Chris received the Emerging Scientist award from ISoP.

• Contact:
  • 🌸 Personal Website
  • 🤗 repo
  • 𝐗
  • Medium
  • 💼 LinkedIn profile

Outline

Introduction

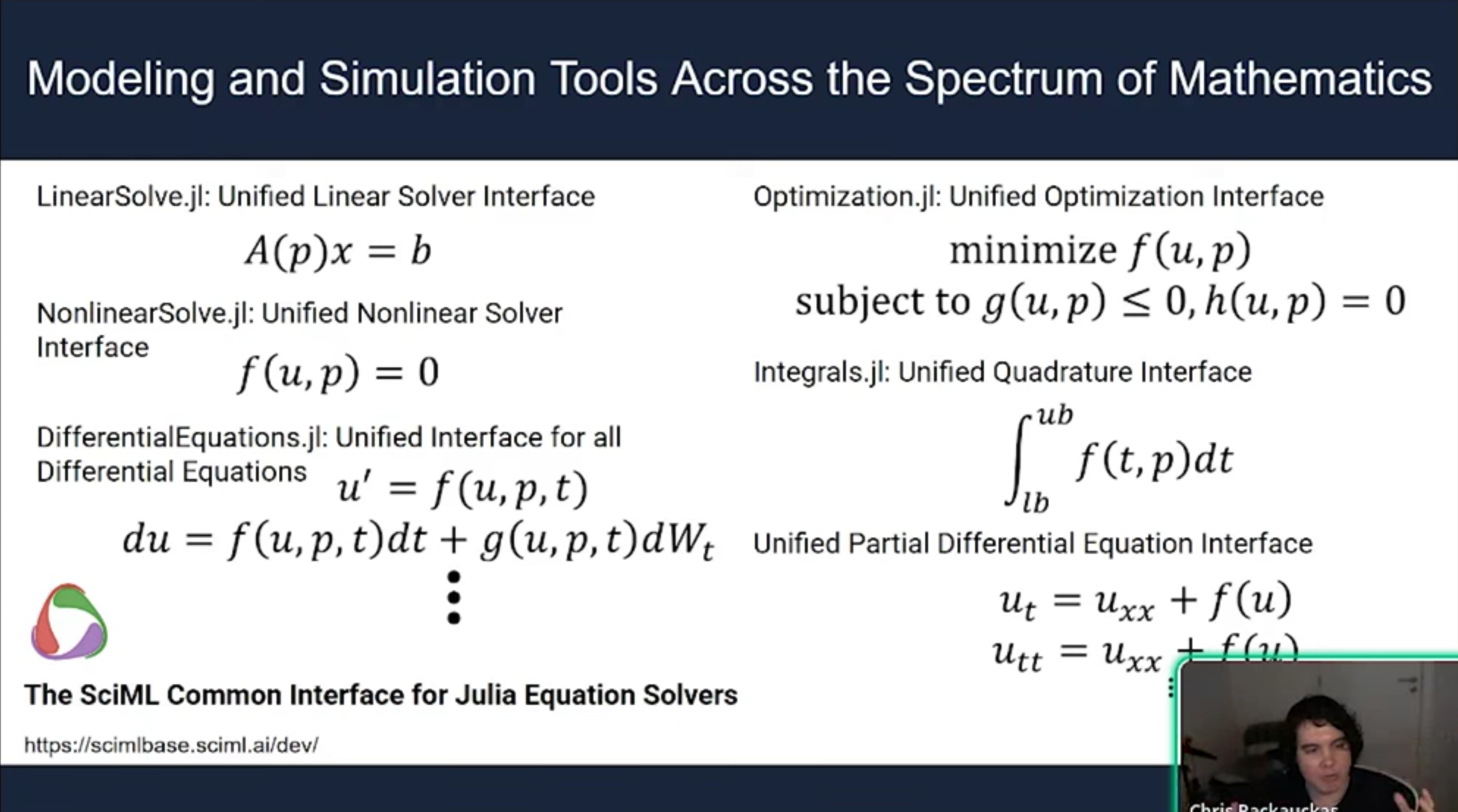

Modeling and Simulation Tools Across the Spectrum of Mathematics

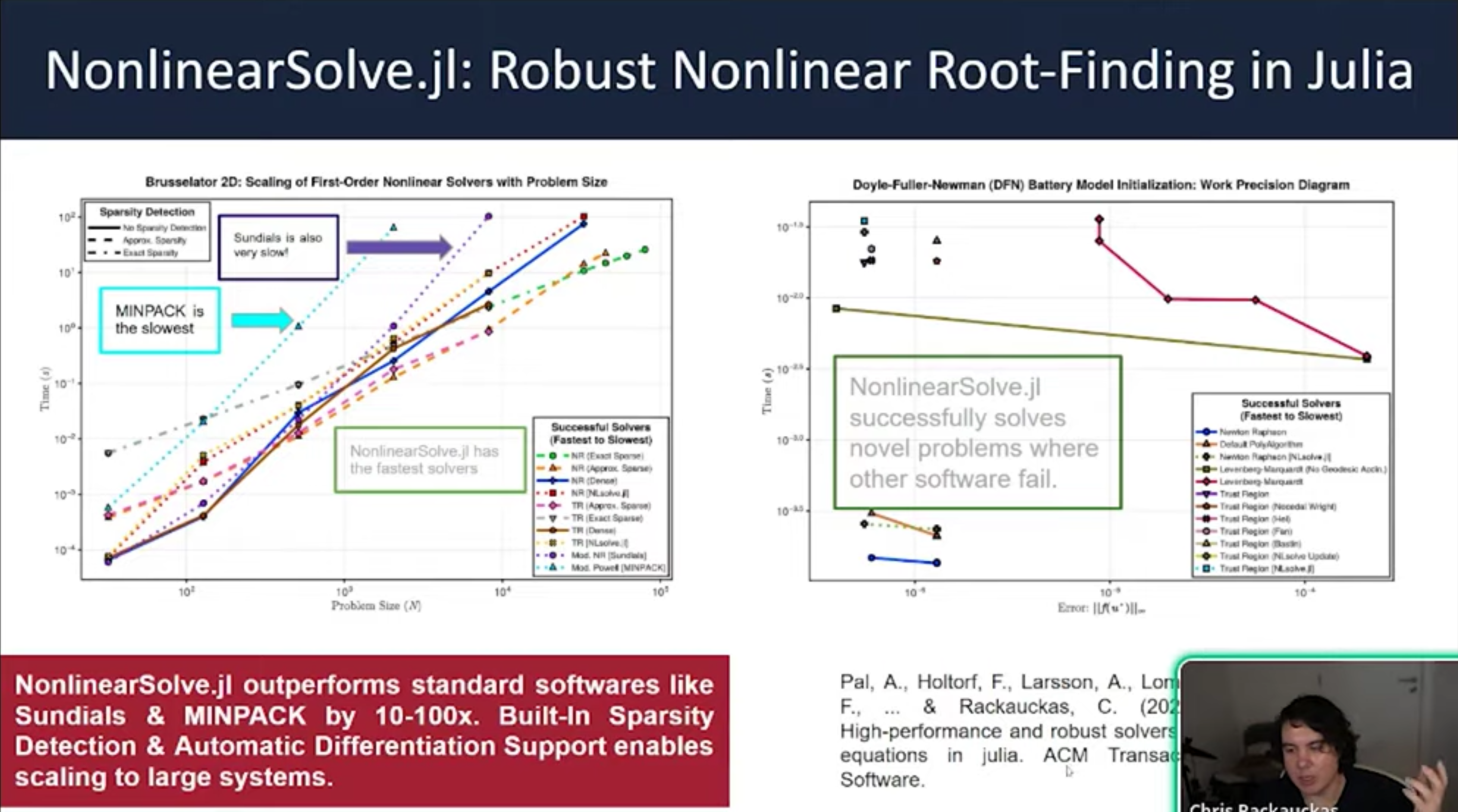

NonlinearSolve.jl Robust Nonlinear Root-Finding in Julia

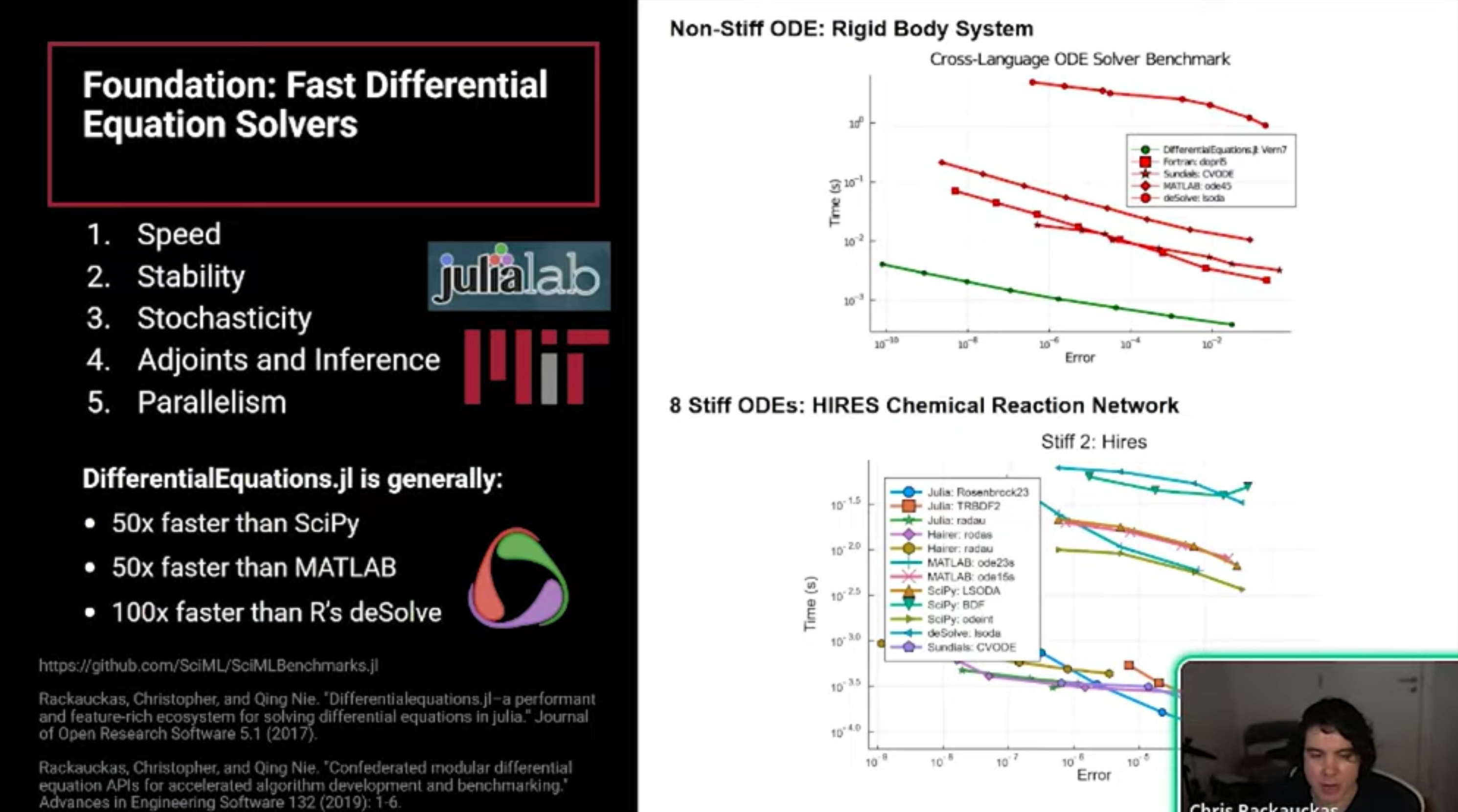

Foundations: Fast Differential Equation Solvers

Reasons for Performance in these ODEs

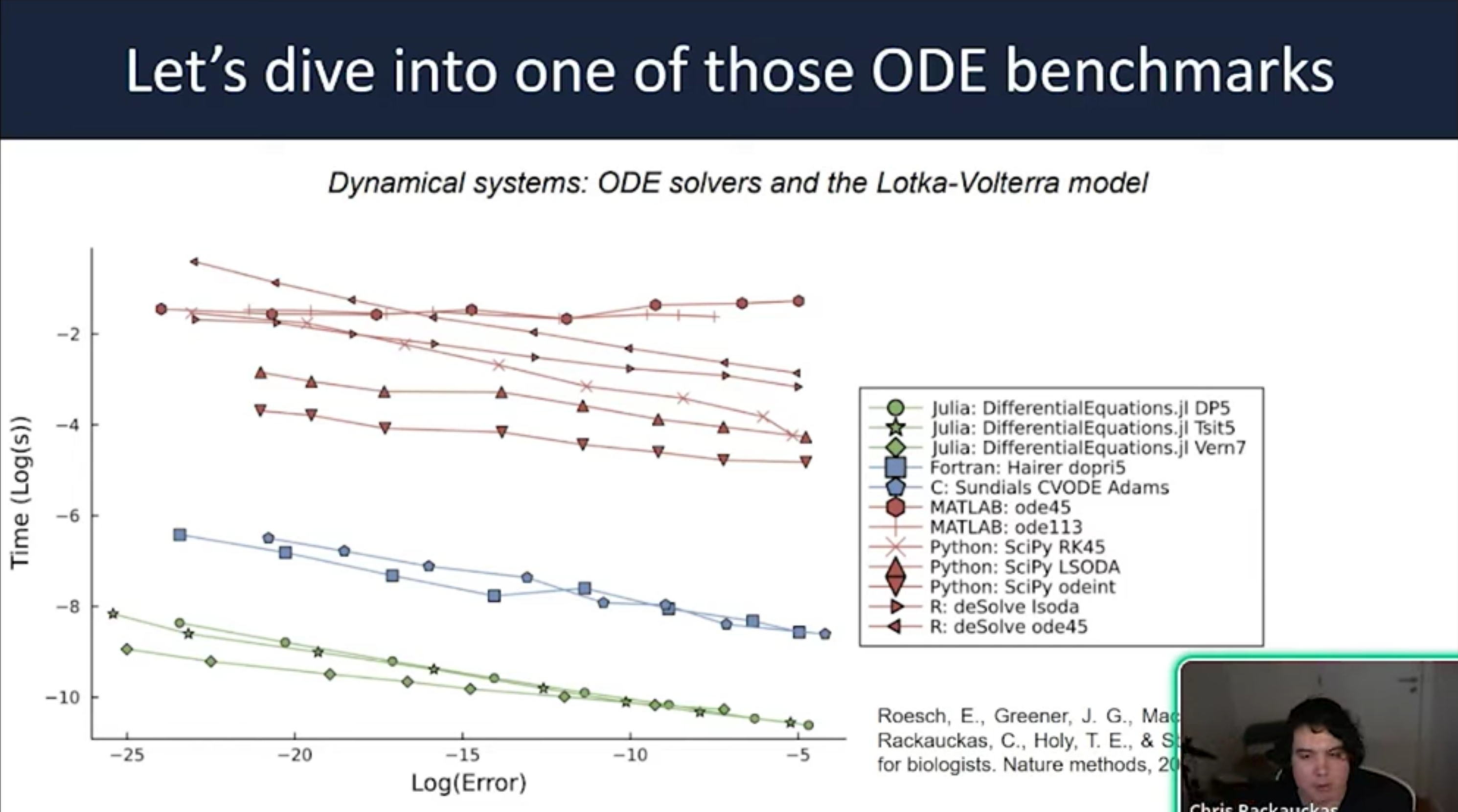

Let’s dive into one of those ODE benchmarks Lotka-Volterra

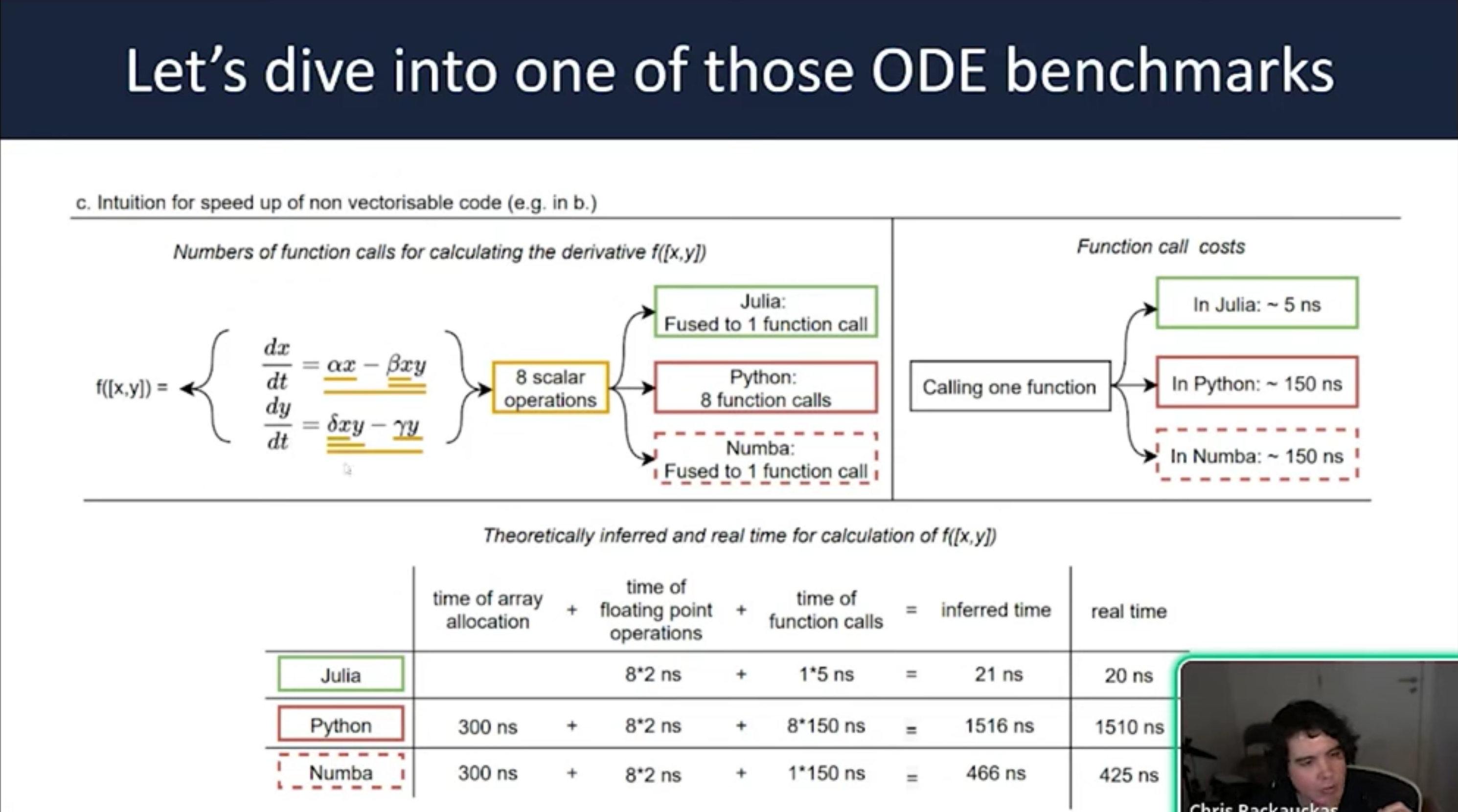

Let’s dive into one of those ODE benchmarks

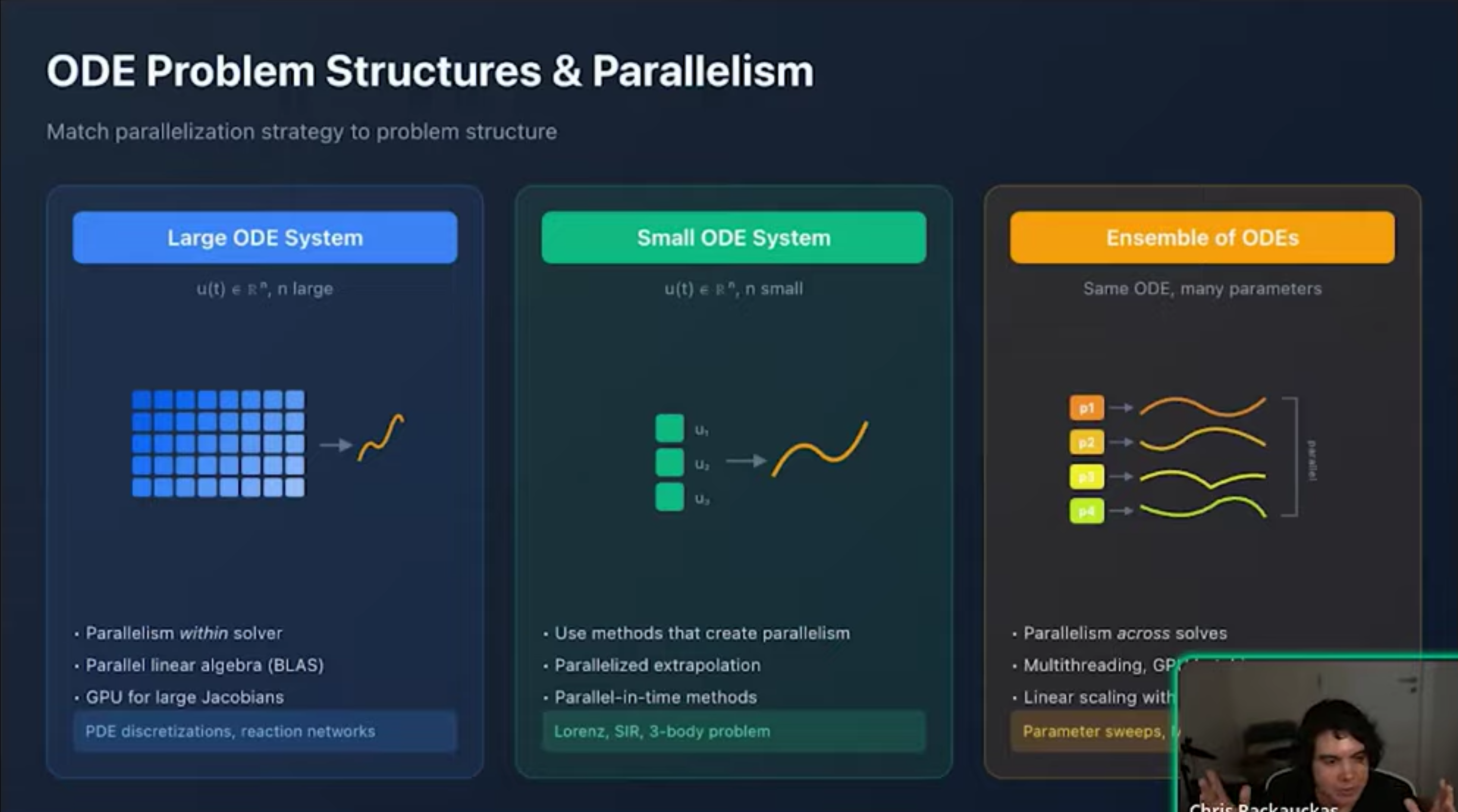

ODE Problem Structures & Parallelism

Large ODEs

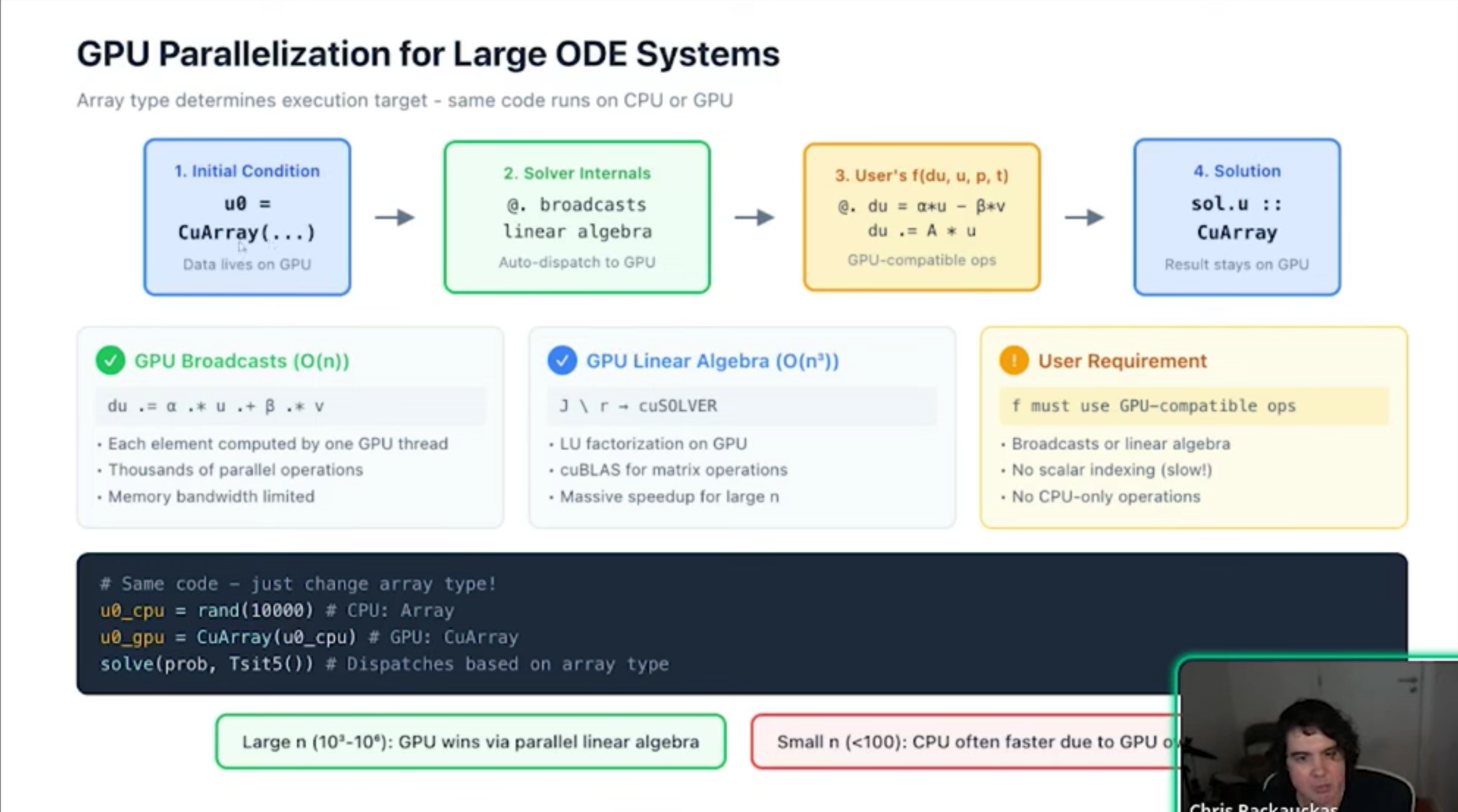

GPU Parallelism for Large ODE Systems

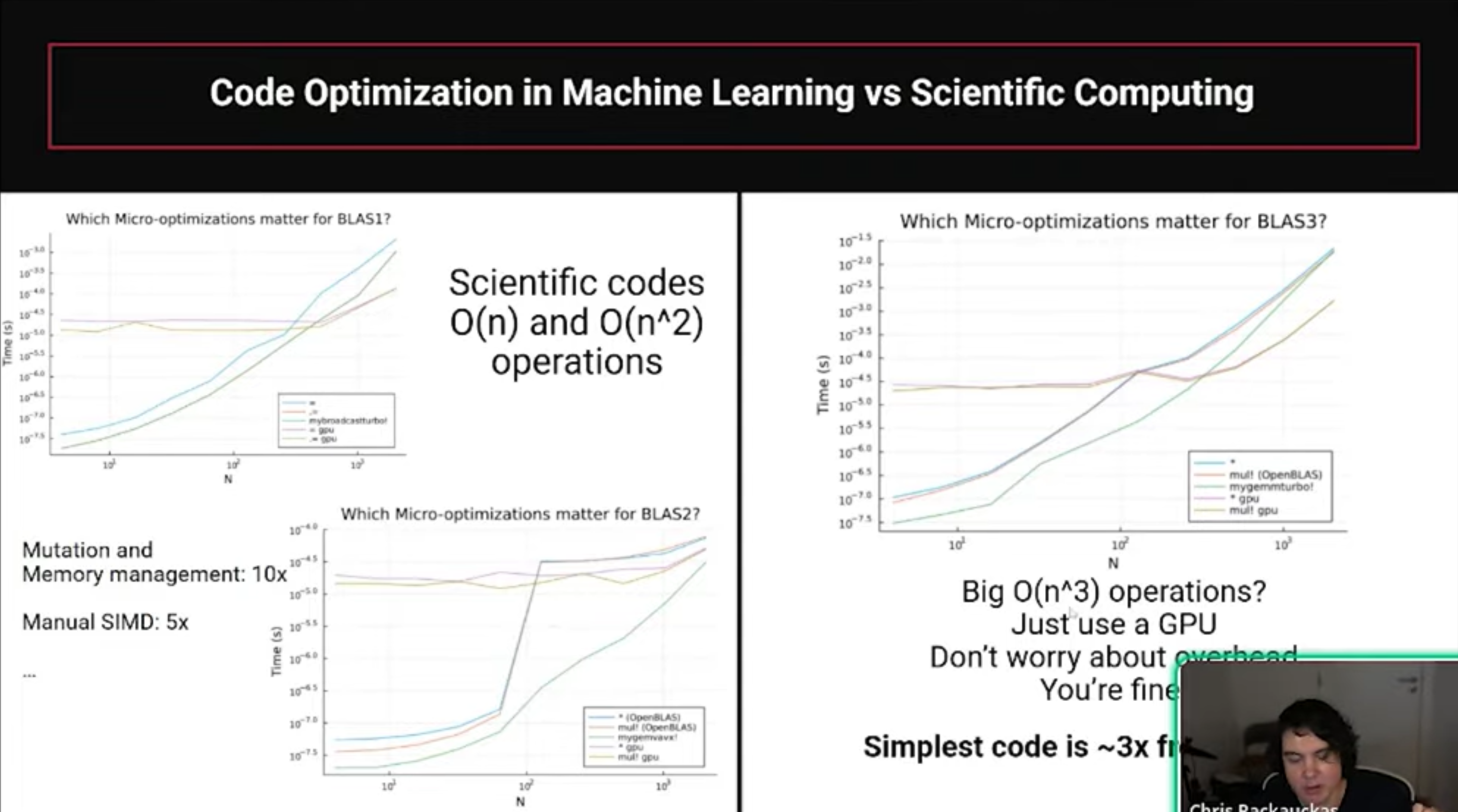

Code Optimization in Machine Learning vs Scientific Computing

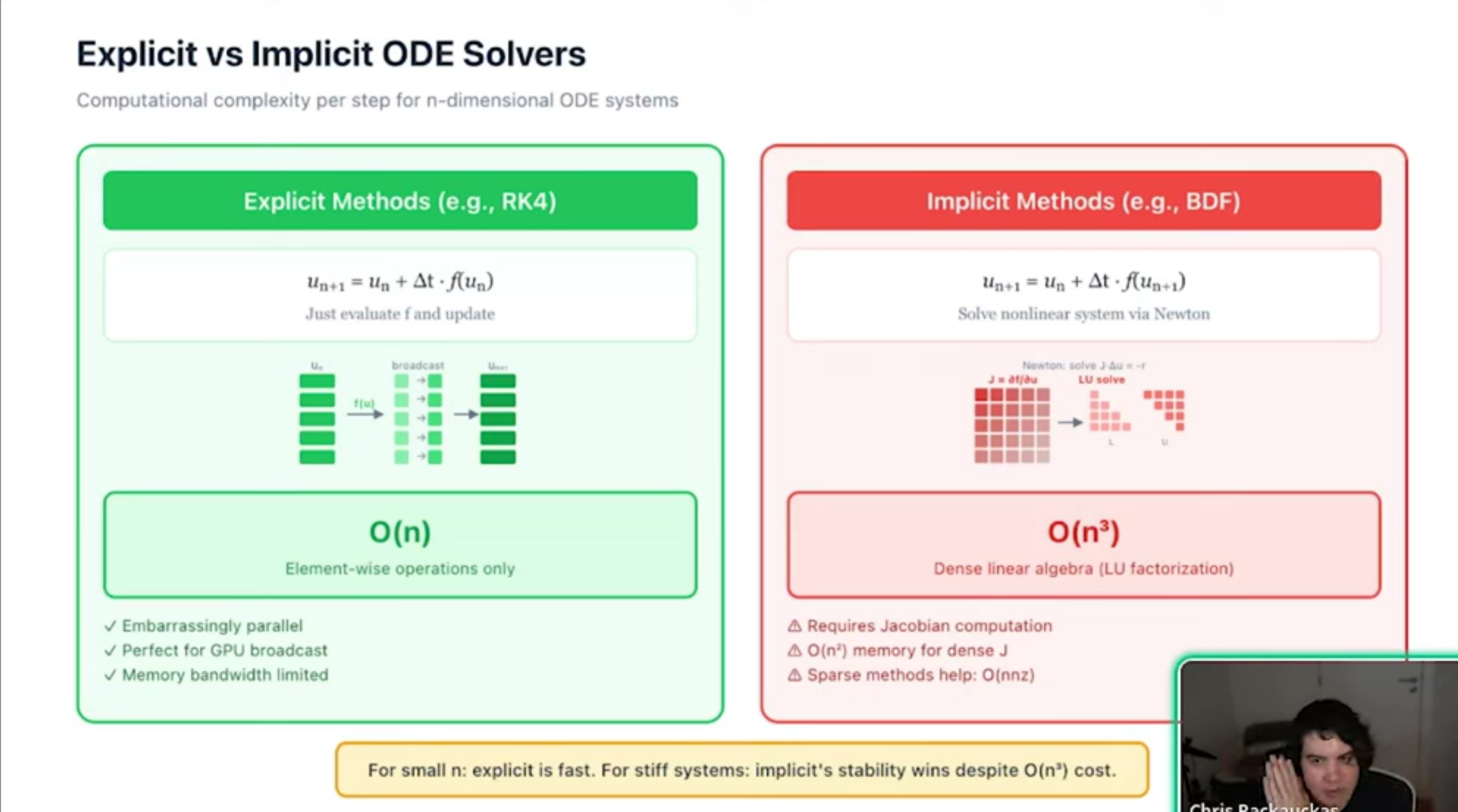

Explicit vs Implicit ODE Solvers

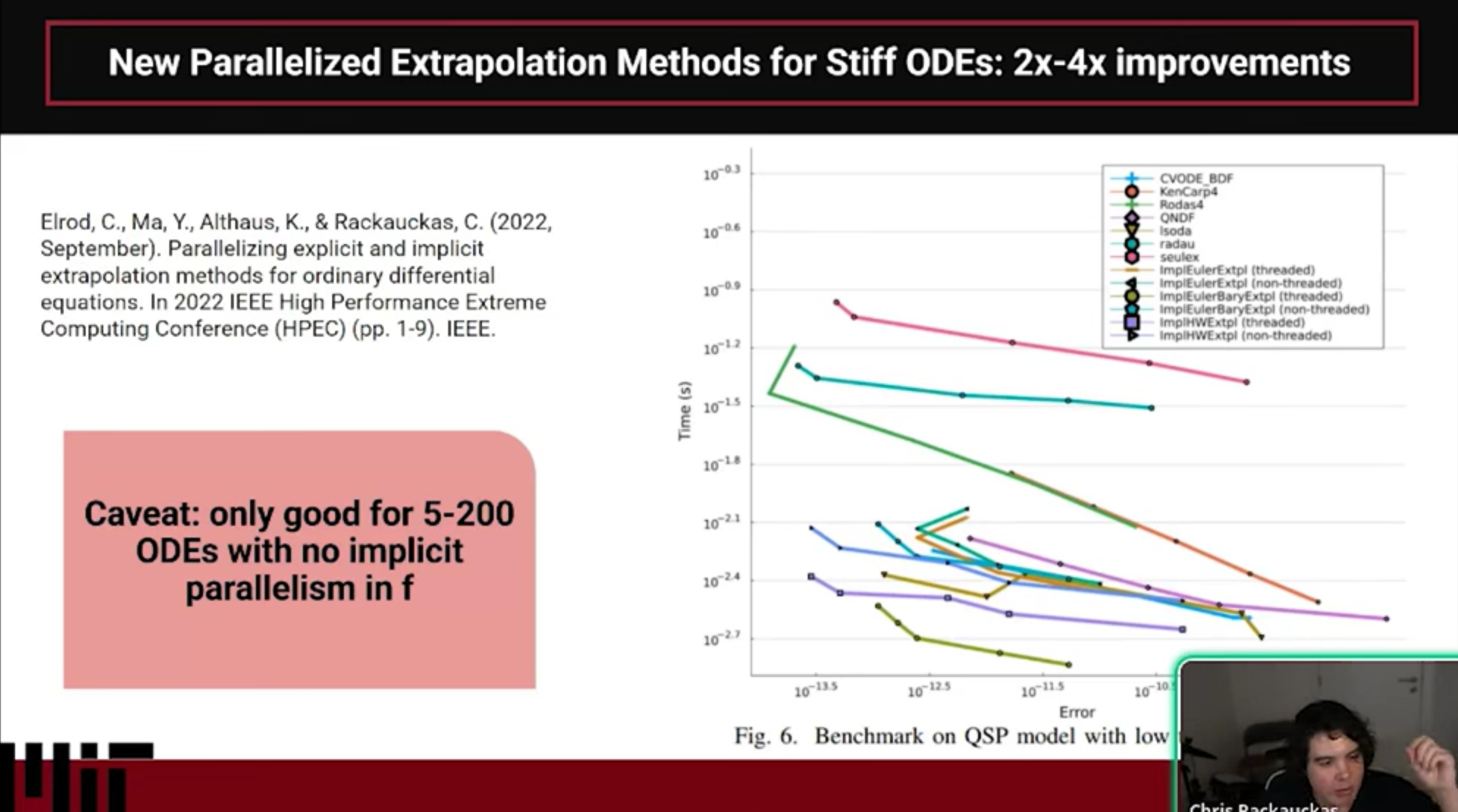

New Parallelized Extrapolation Methods for Stiff ODEs

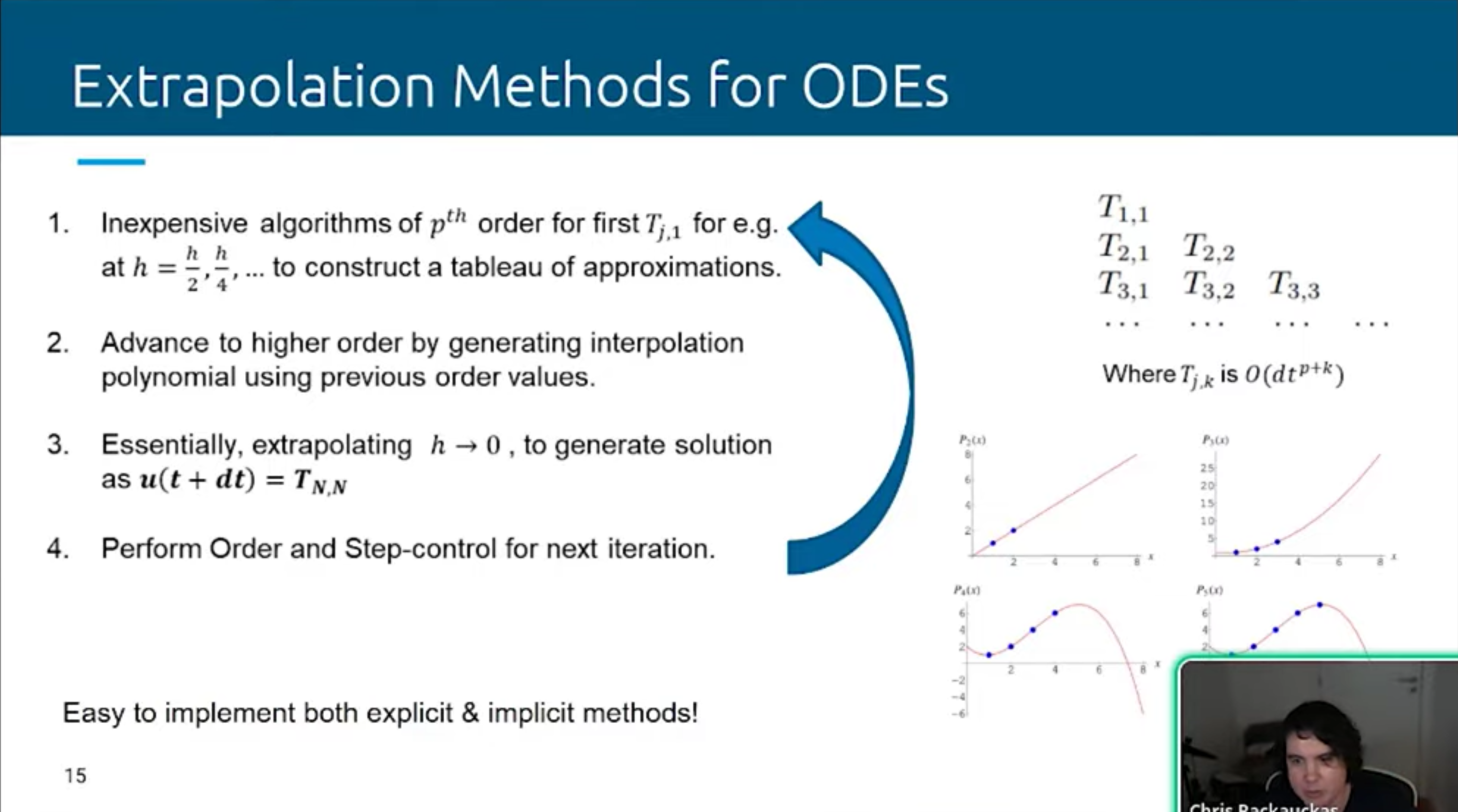

Extrapolation Methods for ODEs

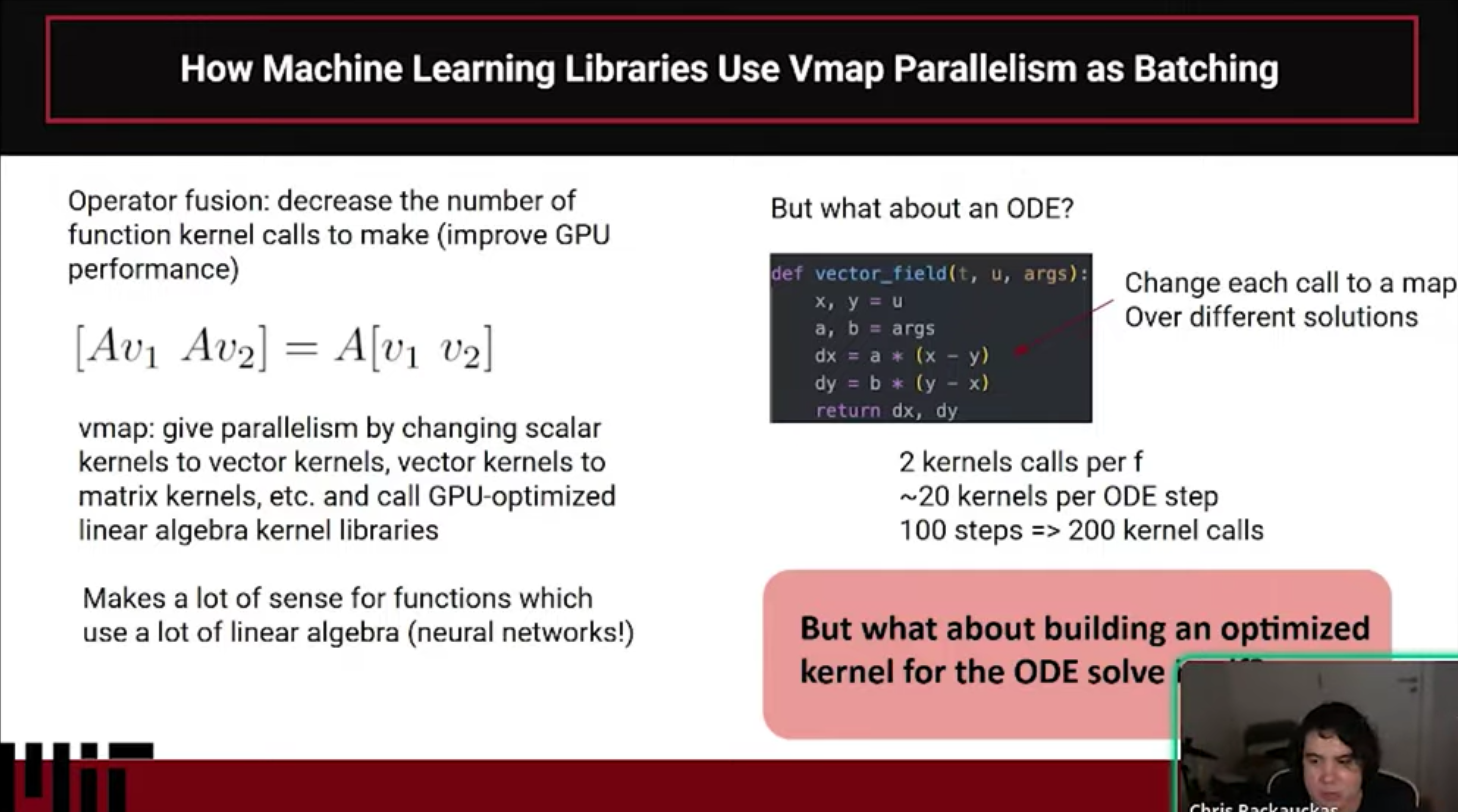

How machine learning libraries use Vmap Parallelism as Batching

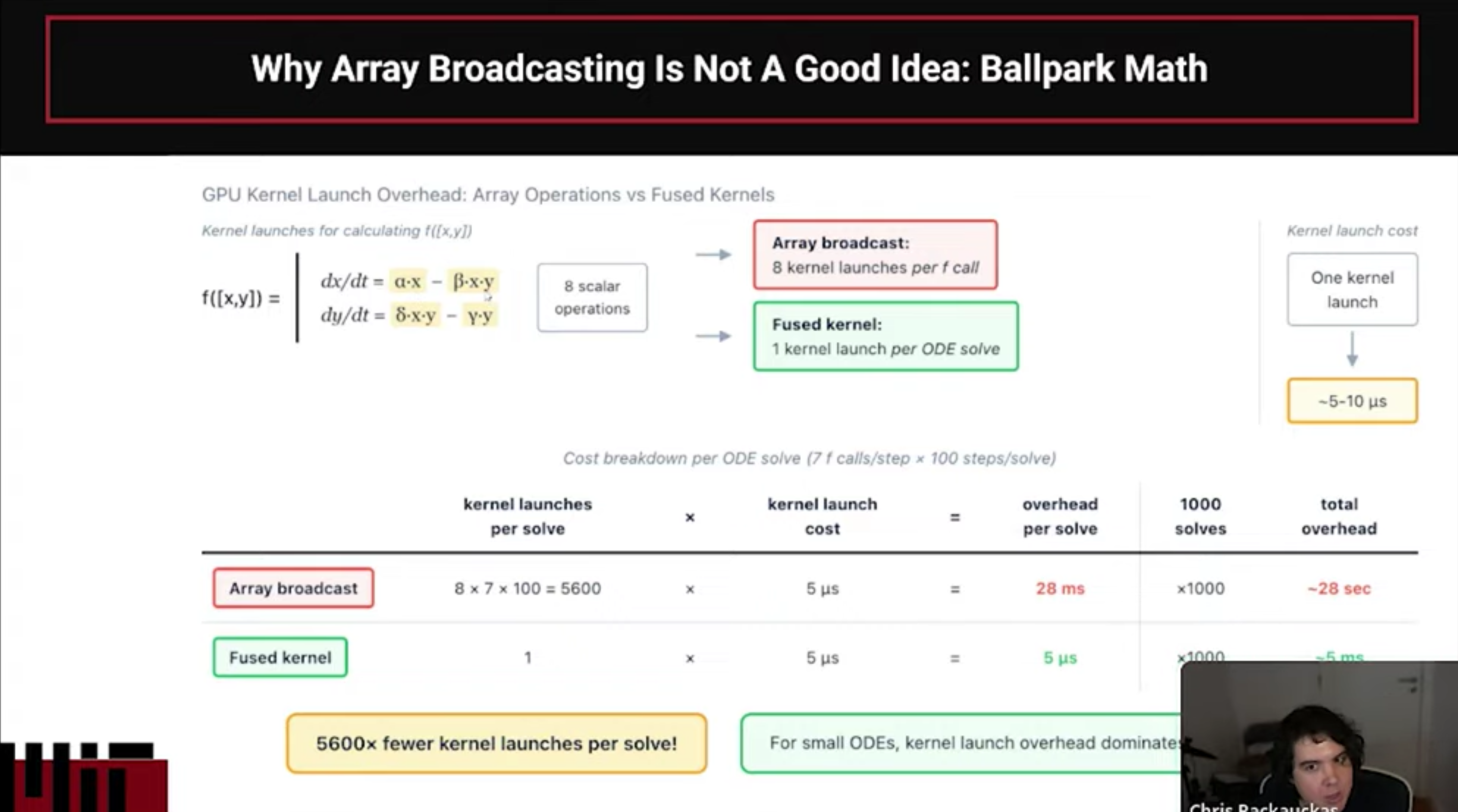

Why array Broadcasting is Not a Good idea: Ballpark Math

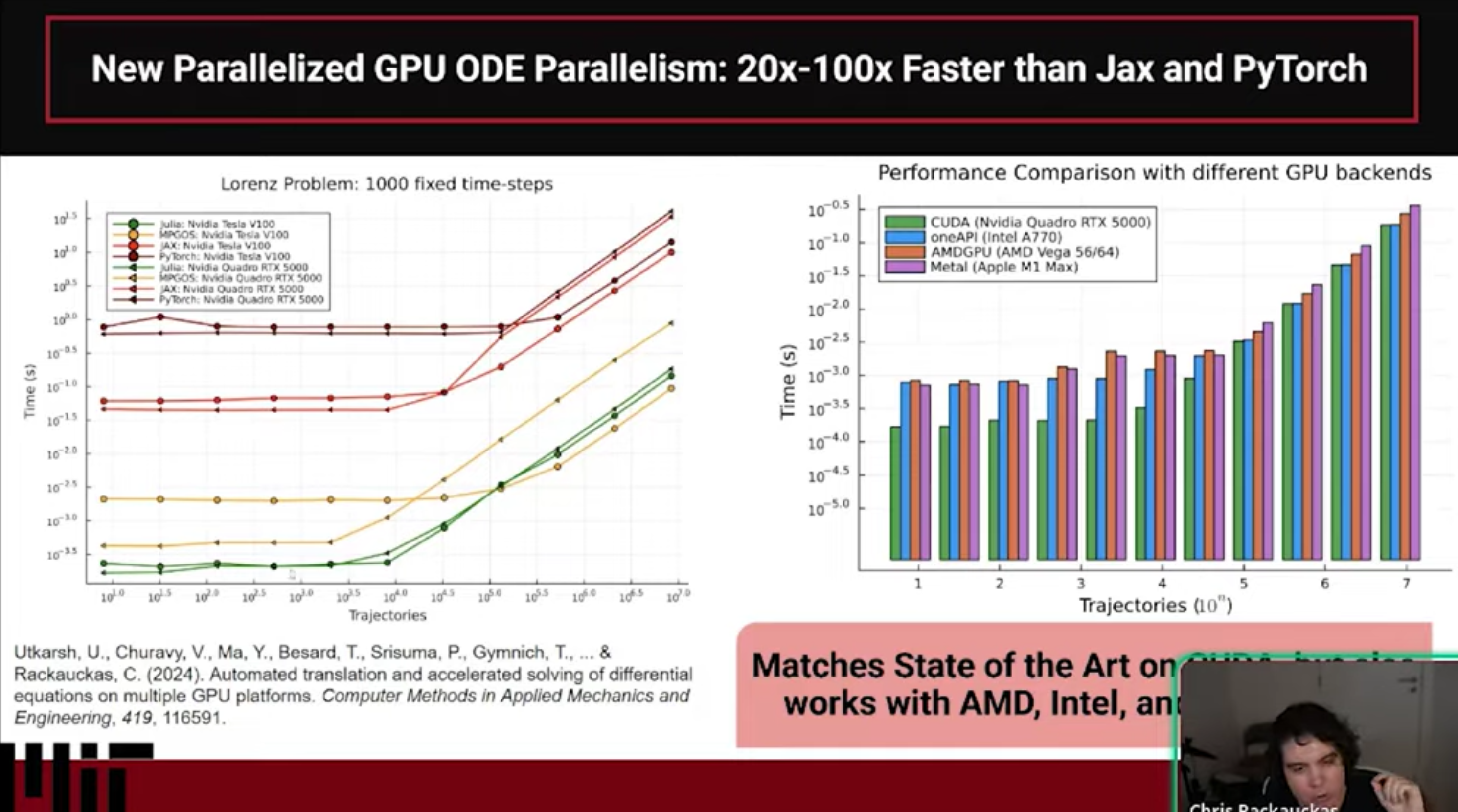

New Parallelized GPU ODE Parallelism

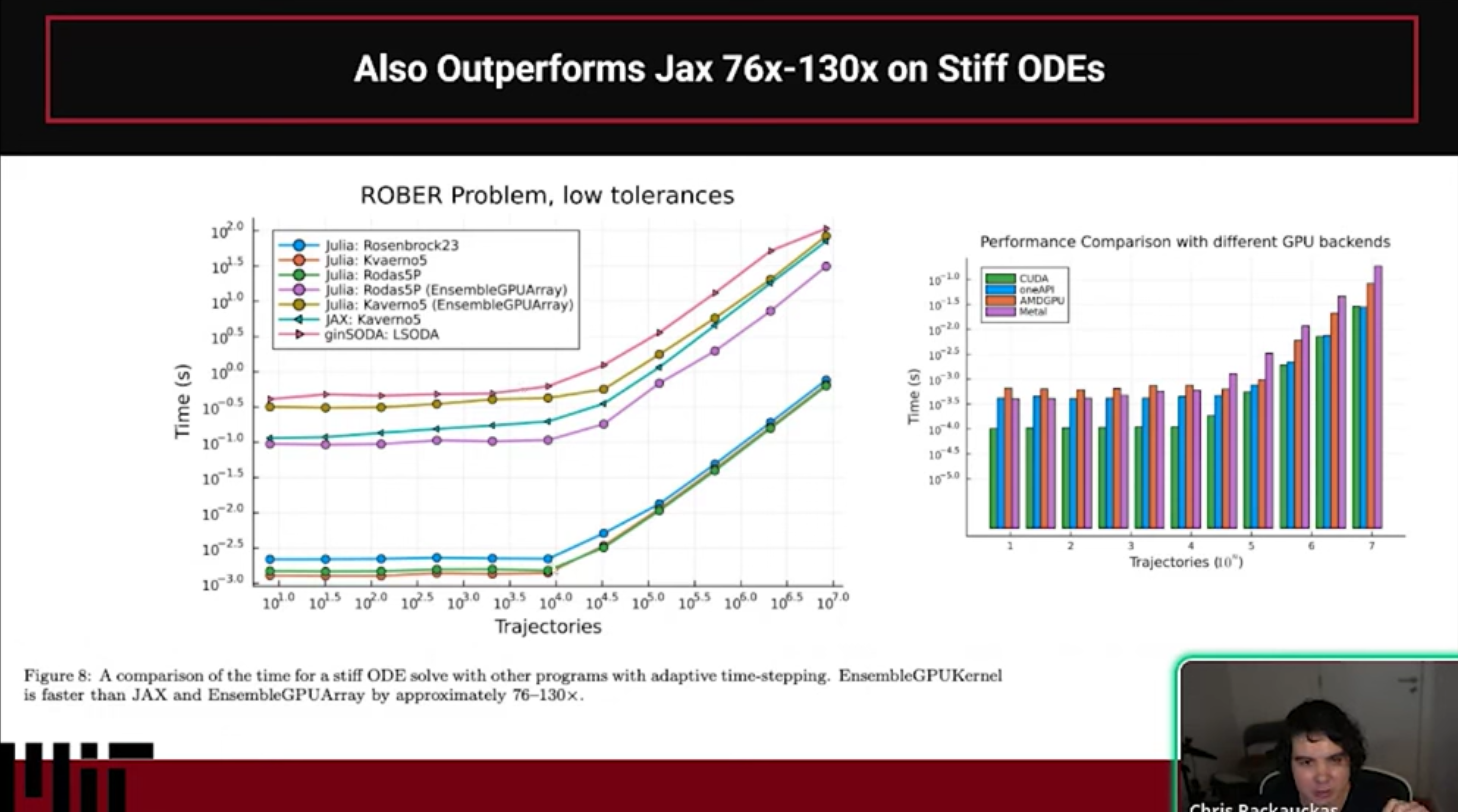

Also Outperforms Jax

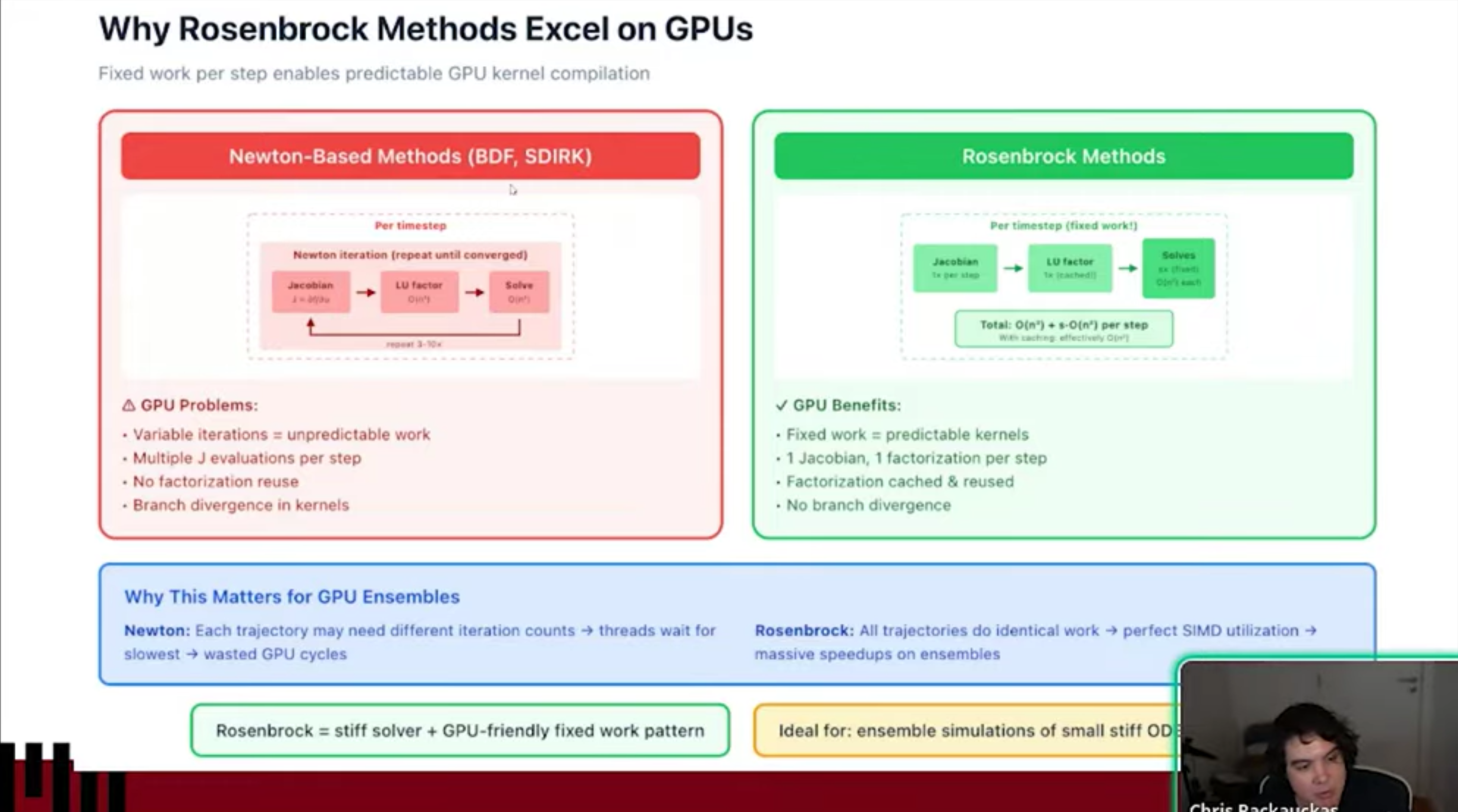

Why Rosenbrock Method Excel on GPUs

Apply this to other domains

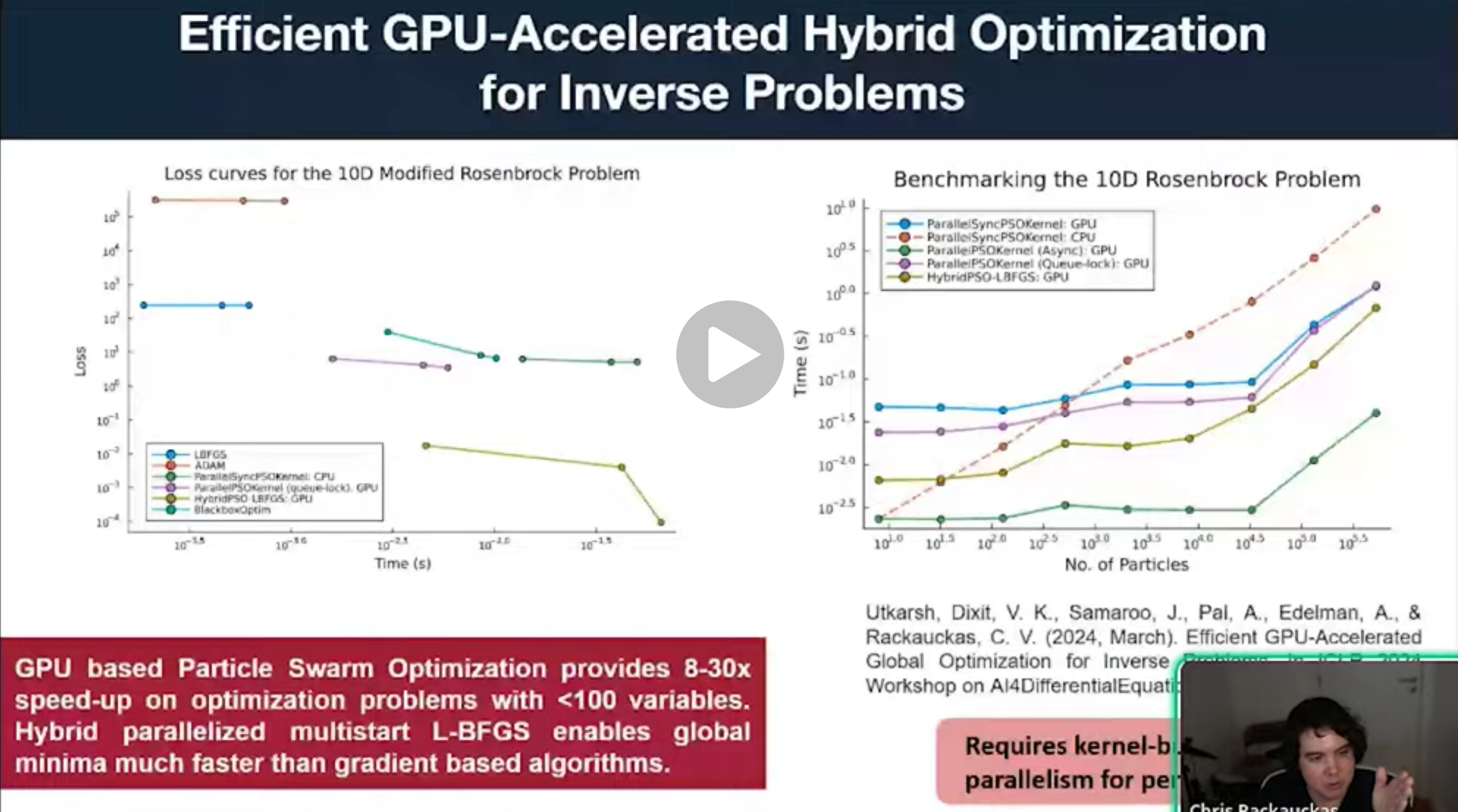

Efficient GPU Accelerated Hybrid Optimization for Inverse Problems

Conclusion

This presentation by Dr. Chris Rackauckas explains the architectural factors that allow Julia’s SciML differential equation solvers to outperform traditional Python/ML libraries like Jax and PyTorch by 20x to 100x.

1. Performance Context Julia’s SciML ecosystem integrates numerical solvers with machine learning and symbolic computing. Benchmarks show Julia achieving order-of-magnitude speedups over Python, MATLAB, and R by combining modernized implementation with new mathematical methods specifically designed for modern hardware.
2. The CPU Performance Gap Julia avoids the overhead inherent in Python/SciPy interpreters by using two key principles: Mutating Arrays: Avoiding the allocation of new memory for every derivative computation. Inlining: Compiling user-defined functions directly into the solver to eliminate interpreter overhead.
3. GPU Parallelism Models Efficient GPU usage depends on the problem structure: Large systems: Parallelization within the solver (e.g., for PDEs). Small systems: Parallelization in time. Ensembles: Parallelization over parameters (best for parameter sweeps). Machine learning libraries often struggle with ODEs because they treat operations as large kernels, which is efficient for dense matrix math but inefficient for the O(N) operations common in ODE solvers.
4. Why Julia Outperforms on GPUs Standard ML libraries (like Jax/PyTorch) often use vmap or array-based approaches, which launch individual GPU kernels for every step of the integration, creating massive overhead. Julia generates a custom, specialized CUDA kernel for the entire ODE solve. This allows the GPU to execute the entire computation in one kernel launch, effectively eliminating the overhead that slows down other frameworks.
5. Limitations and Conclusion Limitations: The kernel-generation approach is ideal for smaller systems (up to ~200 ODEs) due to GPU register space constraints. Key Takeaway: Achieving high performance is not just about using a GPU; it requires selecting the correct parallelism model and design architecture for the specific problem at hand.
