132.1 Understanding uncertainty via mean and covariance
132.1.1 Review of probability

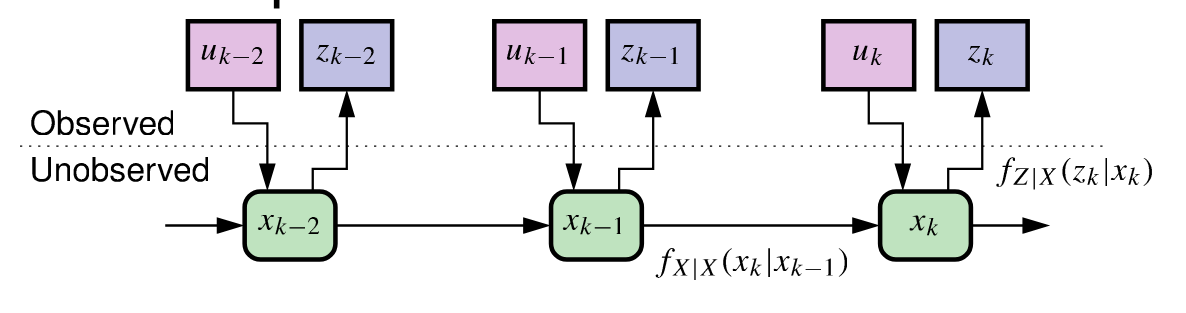

- Sequential probabilistic inference (and hence also any type of Kalman filter) seeks to find the best state estimate in the presence of unknown process and sensor noises.
- By definition, noise is not deterministic, it is random in some sense.
- To discuss the impact of noise on the system dynamics, we must understand (vector) random variables (RVs).
- We can’t predict exactly what we will get each time we measure the RV, but,
- We can characterize the likelihood of different possible measurements by the RV’s probability density function (PDF).
132.1.2 Review of random vectors
- As review, define random vector X, sample vector x_0:
\begin{aligned} X = \begin{bmatrix}X_1 \\ X_2 \\ \vdots \\ X_n\end{bmatrix} \quad \text{and} \quad x_0 = \begin{bmatrix}x_{1} \\ x_{2} \\ \vdots \\ x_{n}\end{bmatrix} \end{aligned}
Where X_1 through X_n are themselves scalar RVs, and x_1 through x_n are scalar constant values these RVs can take on.
- Random vector X is described by (scalar function) joint PDF f_X(x) of vector x:
- f_X(x_0) means f_X(X_1 = x_1, X_2 = x_2, \ldots, X_n = x_n)
- f_X(x_0) dx_1 dx_2 \ldots dx_n is the probability that X is between x_0 and x_0 + dx.
- f_X(x_0) is the scaled probability or likelihood of measuring sample vector x_0.
132.1.3 Key properties of joint PDF of random vector
- f_X(x) \geq 0 \forall x \qquad \text{(Non-negativity)}.
- \displaystyle{\int_{-\infty}^{\infty} \int_{-\infty}^{\infty} \ldots \int_{-\infty}^{\infty} f_X(x) dx_1 dx_2 \ldots dx_n = 1 \quad \text{(Normalization)}}.
- \displaystyle{\bar{x} = \mathbb{E}[X] = \int_{-\infty}^{\infty} \int_{-\infty}^{\infty} \ldots \int_{-\infty}^{\infty} x f_X(x) dx_1 dx_2 \ldots dx_n \qquad \text{(Mean)}}
- Correlation matrix (note outer product, not inner product):
\Sigma_X = \mathbb{E}[XX^T] = \int_{-\infty}^{\infty} \int_{-\infty}^{\infty} \ldots \int_{-\infty}^{\infty} xf_X(x) dx_1 dx_2 \ldots dx_n
- Covariance matrix: Define \tilde{X} = X - \bar{x}. Then,
\begin{aligned} \Sigma_X &= \mathbb{E}[(X - \bar{x})(X - \bar{x})^T] \\ &= \int_{-\infty}^{\infty} \int_{-\infty}^{\infty} \ldots \int_{-\infty}^{\infty} (x - \bar{x})(x - \bar{x})^T f_X(x) dx_1 dx_2 \ldots dx_n \end{aligned}
132.1.4 Properties of Correlation and Covariance
\Sigma_{\tilde{X}} is symmetric and positive-semi-definite (PSD). This means: y^T \Sigma_X y \geq 0 \quad \forall y:
Notice that correlation = covariance for zero-mean random vectors.
The covariance entries have specific meaning: \begin{aligned} (\Sigma_X)_{ii} &= \sigma^2_{X_i} \\ (\Sigma_X)_{ij} &= \rho_{ij}\sigma_{X_i}\sigma_{X_j} = \text{Cov}(X_i, X_j) \\ (\Sigma_X)_{ji} &= (\Sigma_X)_{ij} \end{aligned}
The diagonal entries are the variances of each vector component.
Correlation coefficient \rho_{ij} is a measure of linear dependence between X_i and X_j; |\rho_{ij}| \leq 1.
132.1.5 The Multivariate Gaussian PDF
- There are infinite variety in PDFs. However, we assume only (Multivariate) Gaussian PDF in (linear) KF.
- All noises and the state vector itself are assumed to be Gaussian random vectors.
- Gaussian or normal PDF is (we say X \sim \mathcal{N}(\bar{x}, \Sigma_{\tilde{X}})):
\begin{aligned} f_X(x) &= \frac{1}{(2\pi)^{\frac{n}{2}} |\Sigma_{\tilde{X}}|^{\frac{1}{2}}} \exp\left(-\frac{1}{2}(x - \bar{x})^T \Sigma_{\tilde{X}}^{-1} (x - \bar{x})\right) \\ |\Sigma_{\tilde{X}}| &= \text{det}(\Sigma_{\tilde{X}}) \qquad \qquad \Sigma_{\tilde{X}}^{-1} \text{ requires PSD } \Sigma_{\tilde{X}} \end{aligned} \tag{132.1}
- Contours of constant f_X(x) are hyper-ellipsoids, centered at \bar{x}, rotated via eigenvectors of \Sigma_{\tilde{X}}.
- Good news … We won’t need to work directly with this equation very much!
132.1.6 Summary
- To develop sequential-probabilistic-inference solution, must have a background understanding of random variables (RVs).
- RVs are described by probability density functions (PDFs).
- These PDFs have important properties, which we have reviewed.
- In particular, we will be making use of mean and covariance a lot.
- The PDF we will assume for all RVs is Multivariate Gaussian (or normal) distribution.
- While this seems complicated at first, it turns out to simplify the math a lot later on.
