119 Lesson 1.1.2: Model-based state estimation

119.1 Model-based state estimation

119.1.1 What are some key Kalman-filter concepts?

KFs use sensed measurements and a mathematical model of a dynamic system to estimate its internal hidden state
A model of the system and its state dynamics is assumed to be known.
A system’s state is a vector of values that completely summarizes the effects of the past on the system
The model’s state should be a twin of the system’s state

Aircraft state vector

A system state vector might include the

\vec{state} =[ x,y,z, \alpha,\beta,\gamma, x', y', z', \alpha',\beta',\gamma' ] \tag{119.1}

where:
- x, y, z are the position coordinates,
- \alpha, \beta, \gamma are the Euler angles representing the orientation of the aircraft, Or more accurately the Tait–Bryan angles
  - \alpha is the roll angle,
  - \beta is the pitch angle,
  - \gamma is the yaw angle,
- x', y', z' are the velocities in the respective directions.
- \alpha', \beta', \gamma' are the angular velocities in the respective directions.

The number of elements in the state vector is called the state dimension or degrees of freedom.

119.1.2 Why do we need a model?

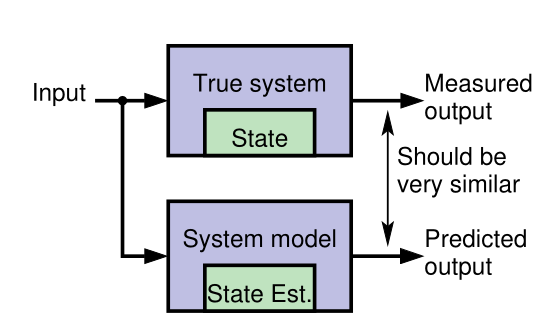

Figure 119.1: simplified Kalman filter block diagram

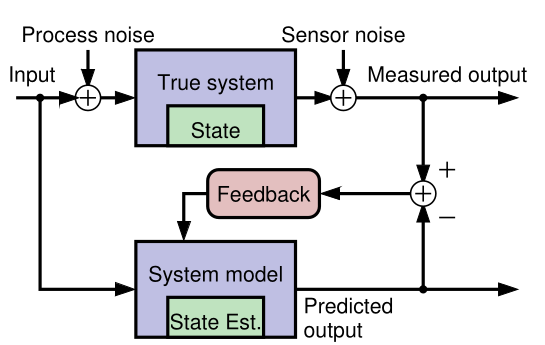

Figure 119.2: Kalman filter with feedback block diagram

Generally it is neither possible nor practical to measure the state of a dynamic system directly.
According to Laplace’s view of classical mechanics if we measure the system’s inputs we can propagate those measurements through a model, updating the model’s prediction of the true state.
We make measurements that are linear or nonlinear functions of members of the state.
The measured and predicted outputs are compared.
The KF is an algorithm that updates the model’s state estimate using this prediction error as feedback regarding the quality of the present state estimate.

119.1.3 What kind of model do we assume?

Linear KFs use discrete-time state-space models of the form: \begin{aligned} x_{t+1} &= Ax_t + Bu_t + w_t && \text{state eqn.}\\ z_t &= Cx_t + Du_t + v_t && \text{observation eqn.} \end{aligned} \tag{119.2}
where:
- x_t is the state vector at time t,
- u_t is the input vector at time t,
- z_t is the output vector at time t,
- A \in \mathbb{R}^{n \times n} is the system matrix,
- B \in \mathbb{R}^{n \times r} is the input matrix,
- C \in \mathbb{R}^{m \times n} is the output matrix,
- D \in \mathbb{R}^{m \times r} is the feedforward matrix,
- w_t \sim \mathcal{N}(0,Q) is the process noise
- v_t \sim \mathcal{N}(0,R) is the sensor noise
- the state equation describes how the state evolves over time,
- the observation equation describes how the state is observed through measurements.

That too many new definitions, I feel like my hair is on fire, so here is an annotated version of the Kalman Equations: \begin{array}{rccccccl} \overbrace{x_{t+1}}^{\text{predicted state}} &= \underbrace{A}_{\text{system}} &\overbrace{\color{red} x_t}^{\text{current state}} &+ &\underbrace{B}_{\text{input}} &\overbrace{\color{green} u_t}^{\text{current input}} &+ & \underbrace{w_t}_{\text{process noise}} \\[2ex] \underbrace{z_t}_{\text{predicted output}} &= \underbrace{C}_{\text{output}} &{\color{red} x_t} &+ & \underbrace{D}_{\text{feed forward}} &{\color{green} u_t} &+ & \underbrace{v_t}_{\text{sensor noise}} \end{array} \tag{119.3}

Kalman Filter v.s. NDLM and interventions

In the NDLM we see simplified versions of these equations, where B and D are set to zero and we don’t have a current input u_t.

Another major difference explained in (Petris et al. 2009) is that in a statistics settings the modeler typically knows much less about the system dynamics than users of a Kalman filter who has access to some set of differential equations that describe the system dynamics.

In (West and Harrison 2013) the authors make a big point about their models being able to handle interventions.

My initial impression was that there seems to be a gap in their logic regarding this and as far as I can with the absence of the input term u(t) which should embody an interventions, these are supposed to be reflected via a change in the matrix \mathbf{F}_t,\mathbf{G}_t. However if these matrices are change every time step t, we don’t really have a model in any useful sense. (We need to somehow come up with a different model for each time step. This is not feasible even if we have access to the differential equations that describe the system dynamics.)

Looking deeper into the literature, I found that this kind of intervention is considered
in (West and Harrison 2013 ch. 11). In fact there is a whole chapter dedicated to interventions and monitoring where the authors eventually discuss arbitrary interventions.

It appears that the interventions seem to lead to the same form being used but with either an additional term for the noise or an expansion of G to incorporate an expansion of the state vector to include new parameters that if such are required.

(Prado et al. 2023, 154) also discusses three types of interventions but not in the same depth as the above.

Treating y_t as an outlier
Increasing uncertainty at the system level by adding a second error term to the state equation.
Arbitrary intervention by setting the prior moments of the state vector to some specific values.

\begin{array}{rccccl} \overbrace{x_{t+1}}^{\text{predicted state}} &= \underbrace{G}_{\text{system}} &\overbrace{\color{red} x_t}^{\text{current state}} &+ & \underbrace{w_t}_{\text{process noise}} \\ \underbrace{y_t}_{\text{predicted output}} &= \underbrace{F}_{\text{output}} &{\color{red} x_t} &+ & \underbrace{v_t}_{\text{sensor noise}} \end{array} \tag{119.4}

119.1.4 A simple example model

Concrete example: Consider the 1-d motion of a rigid object.
- The state comprises position p_t and velocity (speed) s_t :

\underbrace{\begin{bmatrix} p_t \\ s_t \end{bmatrix}}_{x_t} = \underbrace{\begin{bmatrix} 1 & \Delta t \\ 0 & 1 \end{bmatrix}}_{A} \underbrace{\begin{bmatrix} p_{k-1} \\ s_{k-1} \end{bmatrix}}_{x_{k-1}} + \underbrace{\begin{bmatrix} 0 \\ \Delta t \end{bmatrix} }_{B} u_{k-1} + w_{k-1} \tag{119.5}

where \Delta t is the time interval between iterations t-1 and t .
- u_t is equal to force divided by mass;
- w_t is a vector that perturbs both p_t and s_t .
The measurement could be a noisy position estimate:

z_t = \underbrace{\begin{bmatrix} 1 & 0 \end{bmatrix}}_{C} \underbrace{\begin{bmatrix} p_t \\ s_t \end{bmatrix}}_{x_t} + v_t \tag{119.6}

Example illustrates how the state-space form can model a specific dynamic system.
The form is extremely flexible: can be applied to any finite-dimensional linear system.

119.1.5 Why do we need feedback?

Our goal is to make an optimal estimate of x_t in: Equation 119.2
If we knew x_0, w_t, and v_t perfectly, and if our model were exact, there would be no need for feedback to estimate x_t at any point in time. We simply simulate the model! However, in practice:
- We rarely know the initial conditions x_0 exactly
- We never know the system or measurement noise w_t, v_t (by definition).
- Also, no physical system is truly linear and even if one were, we would never know A, B, C, and D exactly.
So, simulating the model (specifically, simulating the state equation “open loop”) is insufficient for robust estimation of x_t.

open loop - without feedback

Feedback allows us to compare predicted z_t with measured z_t to adjust x_t.

119.1.6 How does the feedback work?

Discrete-time Kalman filters repeatedly execute two steps:
1. Predict the current state-vector values based on all past available data. E.g., a linear KF computes \hat{x}_t^- = A \hat{x}_{t-1}^+ + B u_{t-1} \tag{119.7}
where
- \hat{x}_{t-1}^+ is the prediction of x_{t-1}.
- \hat{x}_{t-1}^- is the estimate of x_{t-1}.
1. Estimate the current state value by updating the prediction based on all presently available data. E.g., a linear KF computes \hat{x}_{t}^+ = \hat{x}_t^- + {\textcolor{blue} {L_t}}\, (z_t - (C \hat{x}_t^- + D u_t)) \tag{119.8}
A very straightforward idea. But …
- What should be the feedback gain matrix L_t?
  - That is, how do we make this feedback optimal in some meaningful sense?
Can we generalize this feedback concept to nonlinear systems?
What if we don’t know u_t (as in the tracking application)?

119.1.7 Summary

KFs use sensed measurements and a mathematical model of a dynamic system to estimate its internal hidden state.

Discrete–time state–space format

For the kind of KFs we will study, the mathematical model must be formulated in a discrete-time state-space format.
This form is very general, and can apply to nearly any dynamic system of interest.
KFs operate by repeatedly predicting the present state, and then updating that prediction using a measured system output to make an estimate of the state.

Gain matrix

This process is optimized by computing an optimal feedback gain matrix L_t at every time step that blends the prediction and the new information in the measurement.
There is a lot to learn, and the next topic will present our roadmap for doing so.
