129.1 How do I simulate a discrete-time state-space model?

129.1.1 Simulating discrete-time systems

When simulating discrete-time state-space models, we have (at least) two options.
- There is a direct approach where we write the simulation code ourselves;
- Also, Octave has two functions in its control package that help us simulate these models easily.
  - As with continuous-time models, the first of these is ss, which creates a state-space object from A, B, C, and D matrices.
  - The second is lsim, which simulates a state-space object for given input conditions and an optional initial state.
This lesson will show examples of both approaches, applied to the NCP, NCV, and CT models that were introduced for continuous-time simulations in Lesson 1.2.2.
But first, we need to convert these continuous-time state-space models to equivalent discrete-time models.

129.1.2 Converting the nearly-constant-position model

We might be interested to simulate a discrete-time version of the continuous-time nearly-constant-position model.
Recall that in continuous time, the 2-d NCP model is¹ :

\begin{aligned} \dot x(t) &= 0_{2 \times 2} x(t) + I_2 w(t) \\ z(t) &= x(t) + v(t) \end{aligned}

In discrete time, we must then have (where ĩt is the sample period):

\begin{aligned} x_{k+1} &= e^{0\Delta t} x_k + \left( \int_0^{\Delta t} e^{0\sigma} d\sigma \right) I w_k \\ z_{k} &= x_k + v_k \end{aligned}

129.1.3 Scaled discrete-time NCP model

To compute A_d , note that e^{0\Delta t} = I, which is perhaps most easily confirmed using the infinite-series expansion for e^{At} .
To compute B_d , note that we cannot use the simplified method B_d = A^{-1}(A_d - I)B since A is not invertible.
- Instead, we use the longer-form integration method, where \int_0^{\Delta t} Id\sigma= I \Delta t.
Therefore, we arrive at the discrete-time form of the NCP model: \begin{aligned} x_{k+1}&= x_k + \Delta t w_k \\ z_k &= x_k + v_k \end{aligned} \tag{129.1}
Note, w_k is often scaled vis-à-vis w(t) so that another commonly seen form is:

\begin{aligned} x_{k+1} &= x_k + \Delta t w_k \\ z_k &= x_k + v_k \end{aligned} \tag{129.2}

129.1.4 NCP Time (dynamic) response using toolbox

First let us consider simulating an NCP model using lsim.

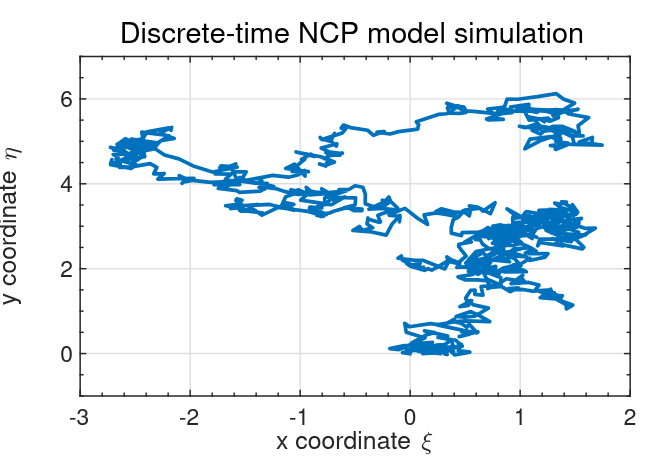

The figure on the right is the output from simulating the Octave code below, which uses the toolbox methods.

#| label: fig-NCP-dynamic-response-lsim-oct
#| fig-cap: "Discrete-time NCP model simulated using the toolbox methods"
pkg load control;

graphics_toolkit("gnuplot");
set(0, "defaultfigurevisible", "off");  % headless-safe

A  = eye(2);
Bw = eye(2);
C  = eye(2);
D  = zeros(2);

maxT = 1000;

randn("seed", 123);
w = 0.1  * randn(maxT, 2);   % (T x nu)
v = 0.01 * randn(maxT, 2);   % (T x ny)

Ts = 1;                      % <-- important
ncp = ss(A, Bw, C, D, Ts);   % discrete-time
z = lsim(ncp, w) + v;

plot(z(:,1), z(:,2));
xlabel("z1"); ylabel("z2");
print("-dpng", "images/fig-NCP-dynamic-response-lsim-oct.png");

import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import StateSpace, dlsim

# Reproducibility (optional)
rng = np.random.default_rng(0)

A  = np.eye(2)
Bw = np.eye(2)
C  = np.eye(2)
D  = np.zeros((2, 2))

maxT = 1000
dt   = 1.0  # sample time (discrete steps)

# time x inputs, time x outputs
w = 0.1  * rng.standard_normal((maxT, 2))
v = 0.01 * rng.standard_normal((maxT, 2))

# Discrete-time state-space system
sys = StateSpace(A, Bw, C, D, dt=dt)

# dlsim returns (t, y, x) for discrete systems
t = np.arange(maxT) * dt
tout, y, x = dlsim(sys, w, t=t)

z = y + v  # noisy observations

plt.figure()
plt.plot(z[:, 0], z[:, 1])
plt.grid(True)
plt.xlabel("z1")
plt.ylabel("z2")
plt.show()

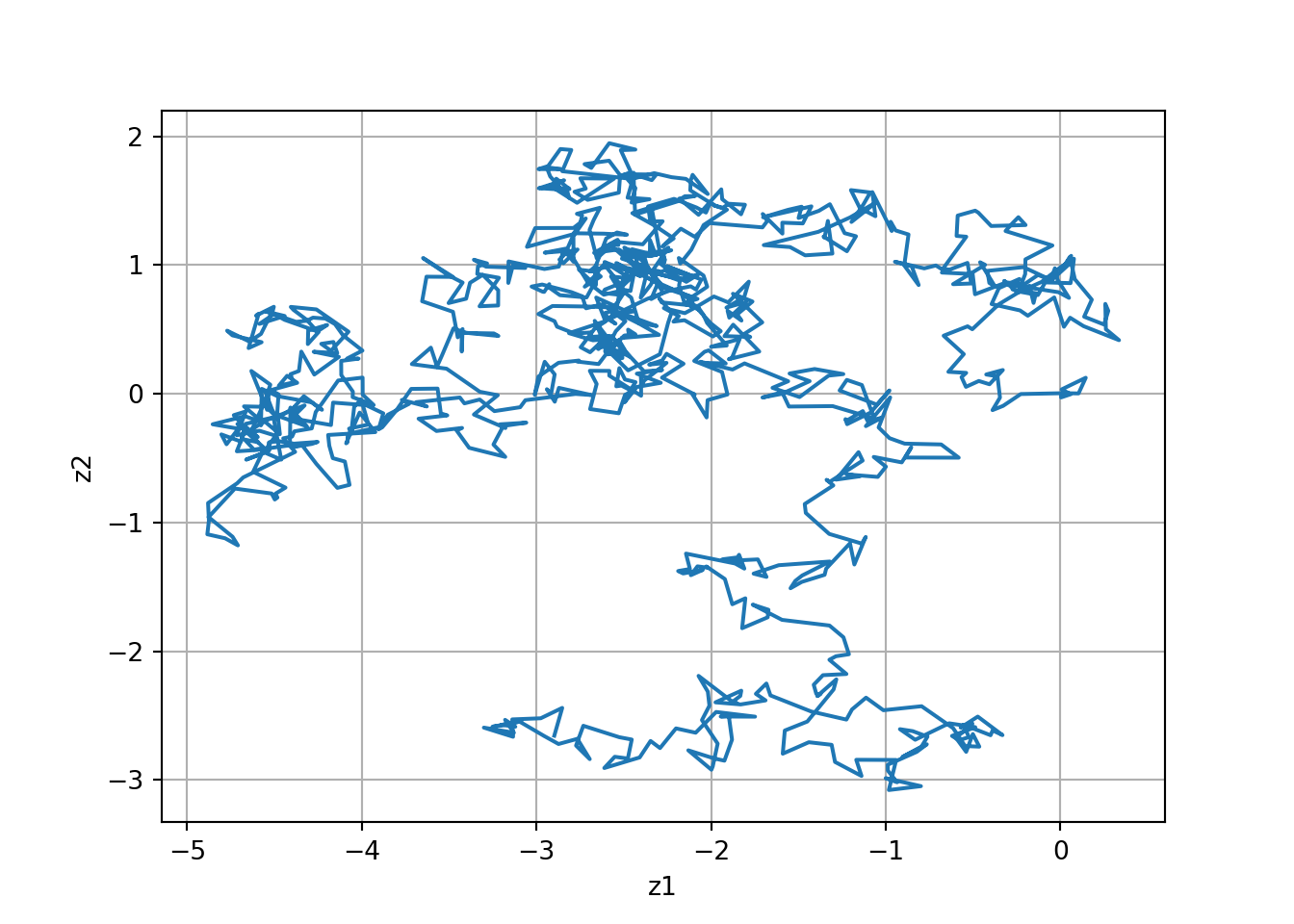

Figure 129.2: Discrete-time NCP model simulated using the toolbox methods.

Trajectory starts at (0,0) and moves randomly from there as w pushes object.

129.1.5 Time (dynamic) response using direct method

In discrete-time we can implement the model without lsim
We use a “for” loop to implement the state-equation recursion directly.

#| label: fig-l126-NCP-Direct-oct
#| fig-cap: "Discrete-time NCP model simulated using the direct method"

A  = eye(2);
Bw = eye(2);
C  = eye(2);
D  = zeros(2);
maxT = 1000;

randn("seed", 123);   % normal RNG
w = 0.1 * randn(2, maxT);   % <-- time x inputs (1000 x 2)
v = 0.01 * randn(2, maxT);  % <-- time x outputs (1000 x 2)

x = zeros (2 , maxT ) ; % storage for x
x (: ,1) =[0;0];        % initial posn .
for k =2: maxT          % simulate model
    x(: , k ) = A * x(: ,k -1) + w(: ,k -1) ;
end
z = C * x + v ;

plot ( z (1 ,:) ,z (2 ,:) ) ;

import numpy as np
import matplotlib.pyplot as plt

A  = np.eye(2)
Bw = np.eye(2)          # unused in the direct method (kept for parity)
C  = np.eye(2)
D  = np.zeros((2, 2))   # unused in the direct method

maxT = 1000

# Octave: randn("seed", 123)
rs = np.random.RandomState(123)  # closer to Octave's legacy RNG style

w = 0.1  * rs.randn(2, maxT)   # (2, maxT)
v = 0.01 * rs.randn(2, maxT)   # (2, maxT)

x = np.zeros((2, maxT))
x[:, 0] = np.array([0.0, 0.0])

# Octave: for k = 2:maxT  => Python indices 1..maxT-1
for k in range(1, maxT):
    x[:, k] = A @ x[:, k-1] + w[:, k-1]

z = C @ x + v  # (2, maxT)

plt.figure()
plt.plot(z[0, :], z[1, :])
plt.grid(True)
plt.xlabel("z1")
plt.ylabel("z2")
plt.show()

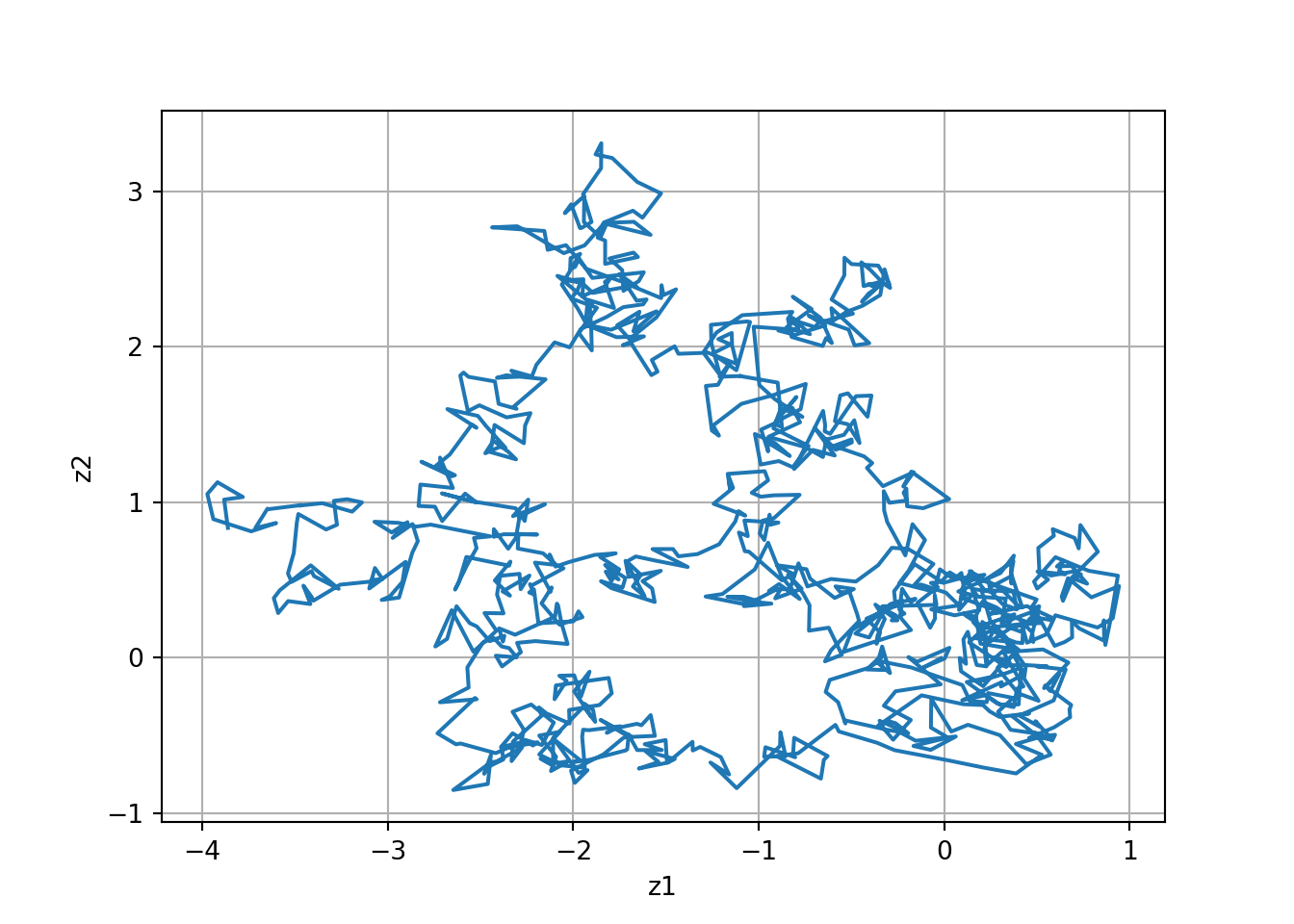

Figure 129.3: Discrete-time NCP model simulated using the direct method.

This code produced the figure on the right when using the same w and v as prior slide; results are indistinguishable

129.1.6 Converting the nearly-constant-velocity model

We now consider a discrete-time version of the continuous time nearly-constant-velocity model.
Recall the 2-d continuous-time state equation:

\dot{x}(t) = \underbrace{ \begin{bmatrix} 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 \end{bmatrix} }_{A} x(t) + \underbrace{ \begin{bmatrix} 0 & 0 \\ 1 & 0 \\ 0 & 0 \\ 0 & 1 \\ \end{bmatrix} }_{B} w(t)

where we are again treating random input w(t) in the same way we have discussed treating deterministic input u(t) here. - We will need to compute A_d = e^{A \Delta t} and also B_d = \int_0^{\Delta t} e^{A \tau} B \, d\tau

129.1.7 Computing NCV A_d

The discrete-time A matrix is A_d = e^{A \Delta t}

\begin{aligned} A_d &= \mathcal{L}^{-1} \left . \left\{ (sI - A)^{-1} \right\} \right |_{t=\Delta t} \\ &= \mathcal{L}^{-1} \left . \left\{ \begin{bmatrix} s & -1 & 0 & 0 \\ 0 & s & 0 & 0 \\ 0 & 0 & s & -1 \\ 0 & 0 & 0 & s \end{bmatrix}^{-1} \right\} \right |_{t=\Delta t} \\ &= \mathcal{L}^{-1} \left . \left\{ \begin{bmatrix} \frac{1}{s} & \frac{1}{s^2} & 0 & 0 \\ 0 & \frac{1}{s} & 0 & 0 \\ 0 & 0 & \frac{1}{s} & \frac{1}{s^2} \\ 0 & 0 & 0 & \frac{1}{s} \end{bmatrix} \right\} \right |_{t=\Delta t} \\ &= \begin{bmatrix} 1 & \Delta t & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & \Delta t \\ 0 & 0 & 0 & 1 \end{bmatrix} \end{aligned} \tag{129.3}

This can be verified in Octave using the “symbolic” package

This code require sympy in Python and symbolic package in Octave, which are not part of the default installation. You may need to install these packages before running the code below.

#| label: lst-computing-NVC-Ad-oct
#| lst-cap: "Computing the discrete-time A matrix for the NCV model using Octave's symbolic package."

pkg load symbolic
syms dT
A = [0 1 0 0; 0 0 0 0; 0 0 0 1; 0 0 0 0];
Ad = expm ( A * dT )

import sympy as sp

# symbolic timestep
dT = sp.Symbol("dT", real=True)

# system matrix A (4x4)
A = sp.Matrix([
    [0, 1, 0, 0],
    [0, 0, 0, 0],
    [0, 0, 0, 1],
    [0, 0, 0, 0],
])

# discrete-time state transition matrix
Ad = sp.exp(A * dT)   # matrix exponential

# pretty print
##sp.pprint(Ad)
latex_Ad = sp.latex(Ad)  # Ad is a sympy Matrix
print(r"$$A_d = " + sp.latex(Ad, mat_str="pmatrix") + r"$$") # knit R compatible LaTeX output

A_d = \left[\begin{pmatrix}1 & dT & 0 & 0\\0 & 1 & 0 & 0\\0 & 0 & 1 & dT\\0 & 0 & 0 & 1\end{pmatrix}\right]

129.1.8 Computing NCV B_d

Note that A is not invertible, so we cannot use the simple method to find B_d ; instead, we need to use the more general integration approach:

\begin{aligned} B_d &= \int_0^{\Delta t} e^{A \tau} B \, d\tau \\ &= \int_0^{\Delta t} \begin{bmatrix} 1 & \tau & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & \tau \\ 0 & 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} 0 & 0 \\ 1 & 0 \\ 0 & 0 \\ 0 & 1 \end{bmatrix} d\tau \\ &= \int_0^{\Delta t} \begin{bmatrix} \tau & 0 \\ 1 & 0 \\ 0 & \tau \\ 0 & 1 \end{bmatrix} d\tau \\ &= \begin{bmatrix}\frac{1}{2} \Delta t^2 & 0 \\ \Delta t & 0 \\ 0 & \frac{1}{2} \Delta t^2 \\ 0 & \Delta t \end{bmatrix} \end{aligned} \tag{129.4}

This can also be verified in Octave using the “symbolic” package,

#| label: lst-computing-NCV-Bd-oct
#| lst-cap: "Computing the discrete-time B matrix for the NCV model using Octave's symbolic package."
#|
pkg load symbolic
syms sigma dT
A = [0 1 0 0; 0 0 0 0; 0 0 0 1; 0 0 0 0];
B = [0 0; 1 0; 0 0; 0 1];
z = expm ( A * sigma ) ;
Bd = int (z ,0 , dT ) * B

import sympy as sp
#from IPython.display import display, Math

# symbols
sigma, dT = sp.symbols("sigma dT", real=True)

# matrices
A = sp.Matrix([
    [0, 1, 0, 0],
    [0, 0, 0, 0],
    [0, 0, 0, 1],
    [0, 0, 0, 0],
])

B = sp.Matrix([
    [0, 0],
    [1, 0],
    [0, 0],
    [0, 1],
])

z = sp.exp(A * sigma) # SymPy matrix exponential

# Bd = ∫_0^{dT} expm(A*sigma) dσ  * B
Bd = sp.integrate(z, (sigma, 0, dT)) * B
Bd = sp.simplify(Bd)
#sp.pprint(Bd)
latex_Bd = sp.latex(Bd)          # Bd is a sympy Matrix
#display(Math(r"B_d = " + sp.latex(Bd, mat_str="pmatrix"))) # Jupyter display (not knit compatible)
print(r"$$B_d = " + sp.latex(Bd, mat_str="pmatrix") + r"$$") # knit R compatible LaTeX output

B_d = \left[\begin{pmatrix}\frac{dT^{2}}{2} & 0\\dT & 0\\0 & \frac{dT^{2}}{2}\\0 & dT\end{pmatrix}\right]

129.1.9 Rescaling the discrete-time NCV model

Again, we often state the discrete-time NCV model in terms of a 4-vector wk having rescaled components.
So, the overall discrete-time NCV model is

\begin{aligned} x_{k+1} &= \begin{bmatrix} 1 & \Delta t & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & \Delta t \\ 0 & 0 & 0 & 1 \end{bmatrix} x_k + w_k \\ z_k &= \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 \end{bmatrix} x_k + v_k \end{aligned} - Remembering the meaning of the xk components, this is stating (what we expect!):

\begin{aligned} \varepsilon_k= \varepsilon_{k-1} + \Delta t \dot{\varepsilon}_{k-1} + \text{noise} \\ {\eta}_k = {\eta}_{k-1} + \Delta t \dot{\eta}_{k-1} + \text{noise} \end{aligned}

129.1.10 NCV Time (dynamic) response using toolbox

Let us first consider simulating an NCP model using lsim.

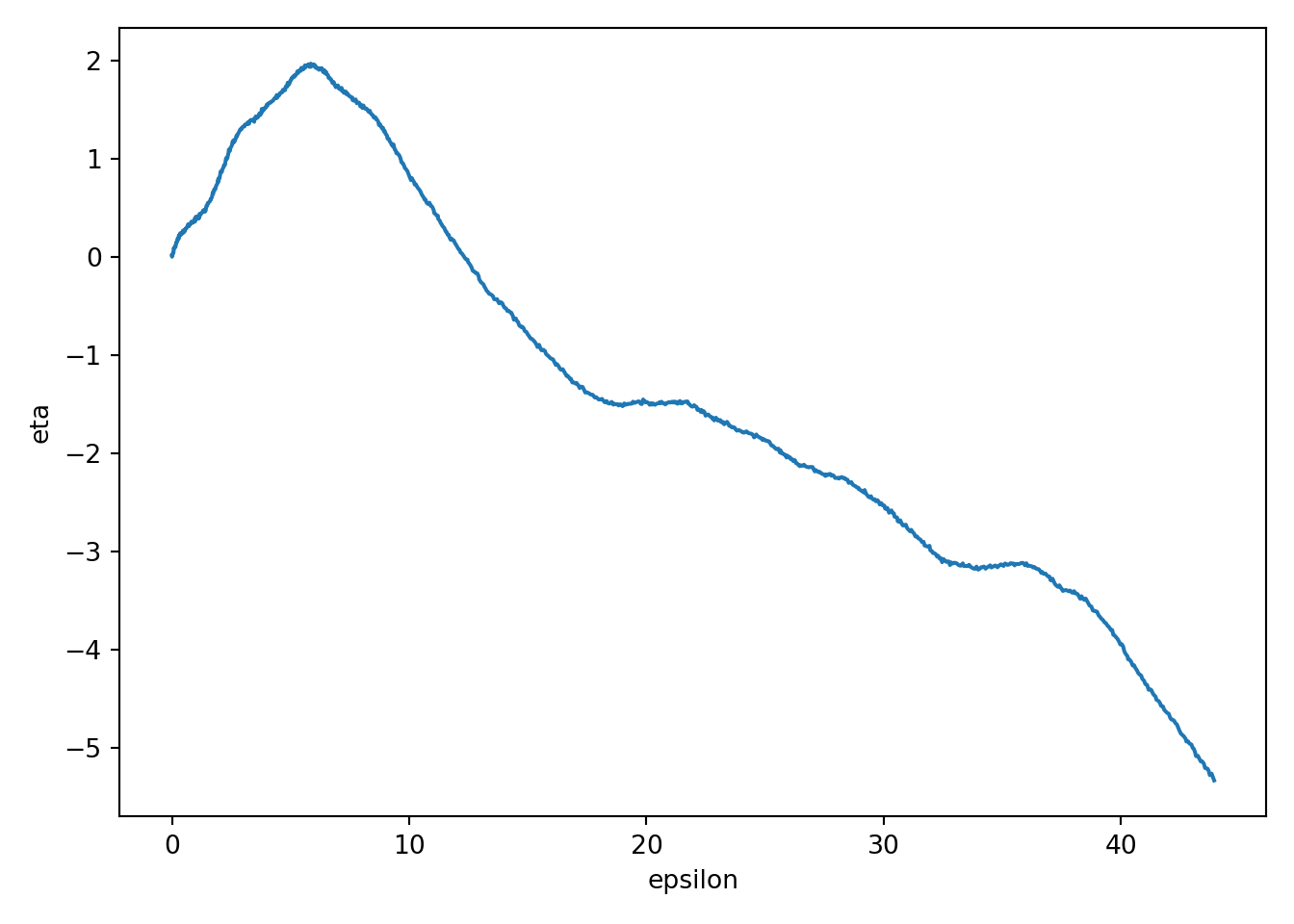

Figure on the right shows the output from using the toolbox methods.

pkg load control;

maxT = 1000;    % # simulation steps
dT = 0.1;       % sample period
A = [1 dT 0 0; 0 1 0 0; 0 0 1 dT; 0 0 0 1];
Bw = [dT^2/2 0; dT 0; 0 dT^2/2; 0 dT];
C = [1 0 0 0; 0 0 1 0];
D = zeros(2);
randn("seed", 123);
w = 0.1  * randn(maxT, 2);     % (T x 2)
v = 0.01 * randn(maxT, 2);     % (T x 2)
x0 = [0; 0.1; 0; 0.1];         % (4 x 1)

ncv = ss(A, Bw, C, D, dT);     % discrete-time
z = lsim(ncv, w, [], x0) + v; % (T x 2)

plot(z(:,1), z(:,2));
xlabel("epsilon"); ylabel("eta");

QSocketNotifier: Can only be used with threads started with QThread

import numpy as np
import matplotlib.pyplot as plt
from scipy import signal

# --- Model ---
maxT = 1000          # simulation steps
dT = 0.1             # sample period

A = np.array([[1, dT, 0,  0],
              [0,  1, 0,  0],
              [0,  0, 1, dT],
              [0,  0, 0,  1]], dtype=float)

Bw = np.array([[dT**2/2, 0],
               [dT,      0],
               [0,  dT**2/2],
               [0,      dT]], dtype=float)

C = np.array([[1, 0, 0, 0],
              [0, 0, 1, 0]], dtype=float)

D = np.zeros((2, 2), dtype=float)

# --- Noise + initial state ---
rng = np.random.default_rng(123)
w = 0.1  * rng.standard_normal((maxT, 2))   # process noise input u_k
v = 0.01 * rng.standard_normal((maxT, 2))   # measurement noise
x0 = np.array([0, 0.1, 0, 0.1], dtype=float)

# --- Discrete-time state-space + simulation ---
sys = signal.dlti(A, Bw, C, D, dt=dT)
t = np.arange(maxT) * dT

# SciPy returns (t_out, y_out, x_out). For MIMO, y_out is (T, ny).
t_out, y, x = signal.dlsim(sys, u=w, t=t, x0=x0)

z = y + v  # (T x 2)

# --- Plot ---
plt.figure()
plt.plot(z[:, 0], z[:, 1])
plt.xlabel("epsilon")
plt.ylabel("eta")
plt.tight_layout()
plt.show()

Figure 129.4: Discrete-time NCV model simulated using the toolbox methods.

129.1.11 Time (dynamic) response using direct method

In discrete-time we can implement the model without lsim.
We again use a ‘for’ loop to implement the state-equation recursion directly.

maxT = 1000;    % simulation steps
dT = 0.1;       % sample period
A = [1 dT 0 0; 0 1  0 0; 0 0  1 dT; 0 0  0 1];
Bw = [dT^2/2 0; dT 0; 0 dT^2/2; 0 dT];
C = [1 0 0 0; 0 0 1 0];
D = zeros(2);
randn("seed", 123);

w = 0.1  * randn(maxT, 2);   % (T x 2)
v = 0.01 * randn(2, maxT);   % (2 x T)  ✅ match C*x

x0 = [0; 0.1; 0; 0.1];       % ✅ define initial state (x, vx, y, vy)

% Simulate directly
x = zeros(4, maxT);
x(:,1) = x0;

for k = 2:maxT
  x(:,k) = A * x(:,k-1) + Bw * w(k-1,:)';   % note w row -> column
end

z = C * x + v;   % (2 x T)

plot(z(1,:), z(2,:));
xlabel("x"); ylabel("y");

QSocketNotifier: Can only be used with threads started with QThread

import numpy as np
import matplotlib.pyplot as plt

# --- Parameters ---
maxT = 1000
dT = 0.1

A = np.array([[1, dT, 0,  0],
              [0,  1, 0,  0],
              [0,  0, 1, dT],
              [0,  0, 0,  1]], dtype=float)

Bw = np.array([[dT**2/2, 0],
               [dT,      0],
               [0,  dT**2/2],
               [0,      dT]], dtype=float)

C = np.array([[1, 0, 0, 0],
              [0, 0, 1, 0]], dtype=float)

# --- Randomness (Octave-like seeding intent) ---
rng = np.random.default_rng(123)
w = 0.1  * rng.standard_normal((maxT, 2))   # (T x 2)
v = 0.01 * rng.standard_normal((2, maxT))   # (2 x T)

x0 = np.array([0, 0.1, 0, 0.1], dtype=float)  # (4,)

# --- Direct simulation ---
x = np.zeros((4, maxT), dtype=float)
x[:, 0] = x0

for k in range(1, maxT):
    x[:, k] = A @ x[:, k-1] + Bw @ w[k-1, :]

z = C @ x + v   # (2 x T)

# --- Plot ---
plt.figure()
plt.plot(z[0, :], z[1, :])
plt.xlabel("x")
plt.ylabel("y")
plt.tight_layout()
plt.show()

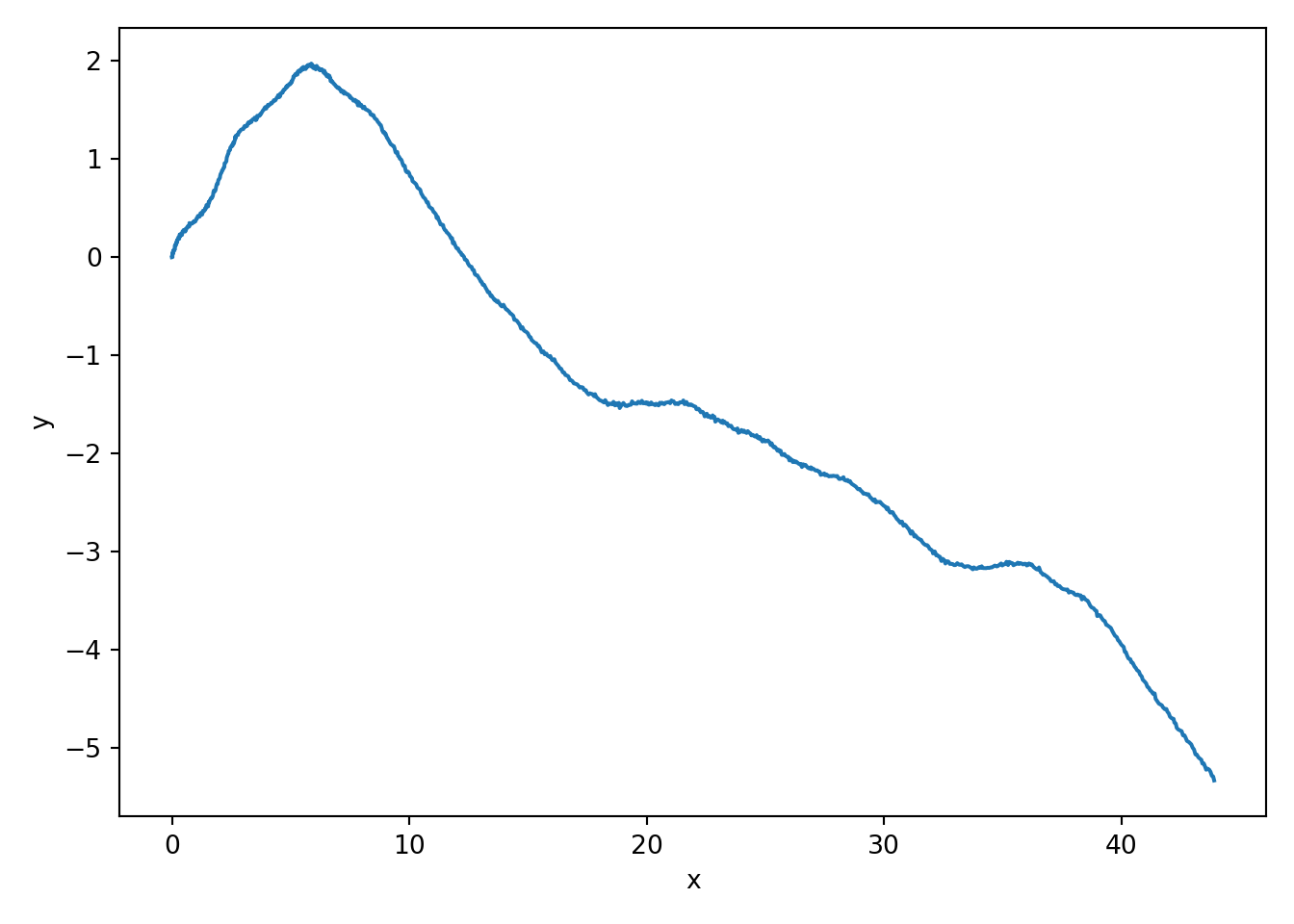

Figure 129.5: Discrete-time NCV model simulated using the direct method.

This code produced the figure on the right when using the same w and v as prior slide; results are indistinguishable.

129.1.12 Converting the coordinated-turn model

Similarly, it can be shown that the discrete-time coordinated turn model in 2-d is:

xk D2 6 6 41 sin.ĩt /= 0 .cos.ĩt/

We are treating random input w(t) in the same way we have discussed treating deterministic input u(t) here. As you will learn next week, this assumption is somewhat incorrect, but is “okay for now.”↩︎

--- title: "Lesson 1.2.6: How do I simulate a discrete-time state-space model?" subtitle: "Kalman Filter Boot Camp (and State Estimation)" description: "This lesson explains how to simulate discrete-time state-space models." categories: - "Probability and Statistics" keywords: - "Kalman Filter" - "state estimation" - "linear algebra" - "discrete-time systems" - "simulation" engine: knitr --- ```r #| label: setup-octave #| include: false knitr::knit_engines$set(octave = function(options) { code <- paste(options$code, collapse = "\n") cmd <- Sys.which("octave-cli") if (cmd == "") cmd <- Sys.which("octave") if (cmd == "") stop("Octave not found on PATH (octave-cli/octave).") # write chunk to a temp .m file (avoids --eval quoting issues entirely) f <- tempfile(fileext = ".m") on.exit(unlink(f), add = TRUE) # fail-fast + useful error message wrapped <- paste0( "try\n", code, "\n", "catch err\n", " disp(err.message);\n", " exit(1);\n", "end\n" ) writeLines(wrapped, f) args <- c("--quiet", "--no-gui", "--no-window-system", f) out <- system2(cmd, args = args, stdout = TRUE, stderr = TRUE) status <- attr(out, "status") if (!is.null(status) && status != 0) stop(paste(out, collapse = "\n")) knitr::engine_output(options, code, paste(out, collapse = "\n")) }) ``` ```r #| label: setup #| include: false knitr::knit_engines$set(octave = function(options) { code <- paste(options$code, collapse = "\n") # wrap code so multi-line works reliably under --eval # (also prevents accidental early termination) wrapped <- paste0("try; ", code, "; catch err; disp(getfield(err,'message')); exit(1); end;") cmd <- Sys.which("octave-cli") if (cmd == "") cmd <- Sys.which("octave") # fallback if (cmd == "") stop("Octave not found on PATH (octave-cli/octave).") args <- c("--quiet", "--no-gui", "--eval", wrapped) out <- system2(cmd, args = args, stdout = TRUE, stderr = TRUE) # If Octave errored, surface it as a knitr error status <- attr(out, "status") if (!is.null(status) && status != 0) { stop(paste(out, collapse = "\n")) } # Return output as verbatim text (knitr will render it nicely) knitr::engine_output(options, code, paste(out, collapse = "\n")) }) ``` ## How do I simulate a discrete-time state-space model? {#sec-kf-1.2.6-simulating-discrete-time-models} ### Simulating discrete-time systems - When simulating discrete-time state-space models, we have (at least) two options. - There is a direct approach where we write the simulation code ourselves; - Also, Octave has two functions in its `control` package that help us simulate these models easily. - As with continuous-time models, the first of these is `ss`, which creates a state-space object from $A$, $B$, $C$, and $D$ matrices. - The second is `lsim`, which simulates a state-space object for given input conditions and an optional initial state. - This lesson will show examples of both approaches, applied to the *NCP*, *NCV*, and *CT* models that were introduced for continuous-time simulations in Lesson 1.2.2. - But first, we need to convert these continuous-time state-space models to equivalent discrete-time models. ### Converting the nearly-constant-position model - We might be interested to simulate a discrete-time version of the continuous-time nearly-constant-position model. - Recall that in continuous time, the 2-d NCP model is^[We are treating random input $w(t)$ in the same way we have discussed treating deterministic input $u(t)$ here. As you will learn next week, this assumption is somewhat incorrect, but is "okay for now."] : $$ \begin{aligned} \dot x(t) &= 0_{2 \times 2} x(t) + I_2 w(t) \\ z(t) &= x(t) + v(t) \end{aligned} $$ In discrete time, we must then have (where ĩt is the sample period): $$ \begin{aligned} x_{k+1} &= e^{0\Delta t} x_k + \left( \int_0^{\Delta t} e^{0\sigma} d\sigma \right) I w_k \\ z_{k} &= x_k + v_k \end{aligned} $$ ### Scaled discrete-time NCP model - To compute $A_d$ , note that $e^{0\Delta t} = I$, which is perhaps most easily confirmed using the infinite-series expansion for $e^{At}$ . - To compute $B_d$ , note that we cannot use the simplified method $B_d = A^{-1}(A_d - I)B$ since $A$ is not invertible. - Instead, we use the longer-form integration method, where $\int_0^{\Delta t} Id\sigma= I \Delta t$. - Therefore, we arrive at the discrete-time form of the NCP model: $$ \begin{aligned} x_{k+1}&= x_k + \Delta t w_k \\ z_k &= x_k + v_k \end{aligned} $$ {#eq-i86r4o} - Note, $w_k$ is often scaled vis-à-vis $w(t)$ so that another commonly seen form is: $$ \begin{aligned} x_{k+1} &= x_k + \Delta t w_k \\ z_k &= x_k + v_k \end{aligned} $$ {#eq-er3pik} ### NCP Time (dynamic) response using toolbox ::: {#fig-l126-1 .column-margin group="slides" width="53mm"} ![simulation](images/L.1.2.6-1.png) Discrete-time NCP model simulated using the toolbox methods. ::: - First let us consider simulating an NCP model using `lsim`. - The figure on the right is the output from simulating the Octave code below, which uses the toolbox methods. ::: {.panel-tabset} #### Octave🎶 ```octave #| label: fig-NCP-dynamic-response-lsim-oct #| fig-cap: "Discrete-time NCP model simulated using the toolbox methods" pkg load control; graphics_toolkit("gnuplot"); set(0, "defaultfigurevisible", "off"); % headless-safe A = eye(2); Bw = eye(2); C = eye(2); D = zeros(2); maxT = 1000; randn("seed", 123); w = 0.1 * randn(maxT, 2); % (T x nu) v = 0.01 * randn(maxT, 2); % (T x ny) Ts = 1; % <-- important ncp = ss(A, Bw, C, D, Ts); % discrete-time z = lsim(ncp, w) + v; plot(z(:,1), z(:,2)); xlabel("z1"); ylabel("z2"); print("-dpng", "images/fig-NCP-dynamic-response-lsim-oct.png"); ``` ![](images/fig-NCP-dynamic-response-lsim-oct.png) #### Python🐍 {.active} ```{python} #| label: fig-NCP-dynamic-response-lsim-py #| fig-cap: "Discrete-time NCP model simulated using the toolbox methods." import numpy as np import matplotlib.pyplot as plt from scipy.signal import StateSpace, dlsim # Reproducibility (optional) rng = np.random.default_rng(0) A = np.eye(2) Bw = np.eye(2) C = np.eye(2) D = np.zeros((2, 2)) maxT = 1000 dt = 1.0 # sample time (discrete steps) # time x inputs, time x outputs w = 0.1 * rng.standard_normal((maxT, 2)) v = 0.01 * rng.standard_normal((maxT, 2)) # Discrete-time state-space system sys = StateSpace(A, Bw, C, D, dt=dt) # dlsim returns (t, y, x) for discrete systems t = np.arange(maxT) * dt tout, y, x = dlsim(sys, w, t=t) z = y + v # noisy observations plt.figure() plt.plot(z[:, 0], z[:, 1]) plt.grid(True) plt.xlabel("z1") plt.ylabel("z2") plt.show() ``` ::: - Trajectory starts at (0,0) and moves randomly from there as w pushes object. ### Time (dynamic) response using direct method - In discrete-time we can implement the model without `lsim` - We use a “for” loop to implement the state-equation recursion directly. ::: {.panel-tabset} #### Octave 🎶 ```octave #| label: fig-l126-NCP-Direct-oct #| fig-cap: "Discrete-time NCP model simulated using the direct method" A = eye(2); Bw = eye(2); C = eye(2); D = zeros(2); maxT = 1000; randn("seed", 123); % normal RNG w = 0.1 * randn(2, maxT); % <-- time x inputs (1000 x 2) v = 0.01 * randn(2, maxT); % <-- time x outputs (1000 x 2) x = zeros (2 , maxT ) ; % storage for x x (: ,1) =[0;0]; % initial posn . for k =2: maxT % simulate model x(: , k ) = A * x(: ,k -1) + w(: ,k -1) ; end z = C * x + v ; plot ( z (1 ,:) ,z (2 ,:) ) ; ``` #### Python 🐍 {.active} ```{python} #| label: fig-l126-NCP-Direct-py #| fig-cap: "Discrete-time NCP model simulated using the direct method." import numpy as np import matplotlib.pyplot as plt A = np.eye(2) Bw = np.eye(2) # unused in the direct method (kept for parity) C = np.eye(2) D = np.zeros((2, 2)) # unused in the direct method maxT = 1000 # Octave: randn("seed", 123) rs = np.random.RandomState(123) # closer to Octave's legacy RNG style w = 0.1 * rs.randn(2, maxT) # (2, maxT) v = 0.01 * rs.randn(2, maxT) # (2, maxT) x = np.zeros((2, maxT)) x[:, 0] = np.array([0.0, 0.0]) # Octave: for k = 2:maxT => Python indices 1..maxT-1 for k in range(1, maxT): x[:, k] = A @ x[:, k-1] + w[:, k-1] z = C @ x + v # (2, maxT) plt.figure() plt.plot(z[0, :], z[1, :]) plt.grid(True) plt.xlabel("z1") plt.ylabel("z2") plt.show() ``` ::: - This code produced the figure on the right when using the same $w$ and $v$ as prior slide; results are indistinguishable ### Converting the nearly-constant-velocity model - We now consider a discrete-time version of the continuous time nearly-constant-velocity model. - Recall the 2-d continuous-time state equation: $$ \dot{x}(t) = \underbrace{ \begin{bmatrix} 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 \end{bmatrix} }_{A} x(t) + \underbrace{ \begin{bmatrix} 0 & 0 \\ 1 & 0 \\ 0 & 0 \\ 0 & 1 \\ \end{bmatrix} }_{B} w(t) $$ where we are again treating random input $w(t)$ in the same way we have discussed treating deterministic input $u(t)$ here. - We will need to compute $A_d = e^{A \Delta t}$ and also $B_d = \int_0^{\Delta t} e^{A \tau} B \, d\tau$ ### Computing NCV $A_d$ The discrete-time $A$ matrix is $A_d = e^{A \Delta t}$ $$ \begin{aligned} A_d &= \mathcal{L}^{-1} \left . \left\{ (sI - A)^{-1} \right\} \right |_{t=\Delta t} \\ &= \mathcal{L}^{-1} \left . \left\{ \begin{bmatrix} s & -1 & 0 & 0 \\ 0 & s & 0 & 0 \\ 0 & 0 & s & -1 \\ 0 & 0 & 0 & s \end{bmatrix}^{-1} \right\} \right |_{t=\Delta t} \\ &= \mathcal{L}^{-1} \left . \left\{ \begin{bmatrix} \frac{1}{s} & \frac{1}{s^2} & 0 & 0 \\ 0 & \frac{1}{s} & 0 & 0 \\ 0 & 0 & \frac{1}{s} & \frac{1}{s^2} \\ 0 & 0 & 0 & \frac{1}{s} \end{bmatrix} \right\} \right |_{t=\Delta t} \\ &= \begin{bmatrix} 1 & \Delta t & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & \Delta t \\ 0 & 0 & 0 & 1 \end{bmatrix} \end{aligned} $$ {#eq-rpk8dd} - This can be verified in Octave using the “symbolic” package This code require `sympy` in Python and `symbolic` package in Octave, which are not part of the default installation. You may need to install these packages before running the code below. ::: {.panel-tabset} #### Octave🎶 ```octave #| label: lst-computing-NVC-Ad-oct #| lst-cap: "Computing the discrete-time A matrix for the NCV model using Octave's symbolic package." pkg load symbolic syms dT A = [0 1 0 0; 0 0 0 0; 0 0 0 1; 0 0 0 0]; Ad = expm ( A * dT ) ``` #### Python🐍 {.active} ```{python} #| label: lst-computing-NCV-Ad-py #| lst-cap: "Computing the discrete-time A matrix for the NCV model using Python's sympy package." #| output: asis import sympy as sp # symbolic timestep dT = sp.Symbol("dT", real=True) # system matrix A (4x4) A = sp.Matrix([ [0, 1, 0, 0], [0, 0, 0, 0], [0, 0, 0, 1], [0, 0, 0, 0], ]) # discrete-time state transition matrix Ad = sp.exp(A * dT) # matrix exponential # pretty print ##sp.pprint(Ad) latex_Ad = sp.latex(Ad) # Ad is a sympy Matrix print(r"$$A_d = " + sp.latex(Ad, mat_str="pmatrix") + r"$$") # knit R compatible LaTeX output ``` ::: ### Computing NCV $B_d$ Note that $A$ is not invertible, so we cannot use the *simple* method to find $B_d$ ; instead, we need to use the more general integration approach: $$ \begin{aligned} B_d &= \int_0^{\Delta t} e^{A \tau} B \, d\tau \\ &= \int_0^{\Delta t} \begin{bmatrix} 1 & \tau & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & \tau \\ 0 & 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} 0 & 0 \\ 1 & 0 \\ 0 & 0 \\ 0 & 1 \end{bmatrix} d\tau \\ &= \int_0^{\Delta t} \begin{bmatrix} \tau & 0 \\ 1 & 0 \\ 0 & \tau \\ 0 & 1 \end{bmatrix} d\tau \\ &= \begin{bmatrix}\frac{1}{2} \Delta t^2 & 0 \\ \Delta t & 0 \\ 0 & \frac{1}{2} \Delta t^2 \\ 0 & \Delta t \end{bmatrix} \end{aligned} $$ {#eq-9l8h7o} - This can also be verified in Octave using the “symbolic” package, ::: {.panel-tabset} #### Octave 🎶 ```octave #| label: lst-computing-NCV-Bd-oct #| lst-cap: "Computing the discrete-time B matrix for the NCV model using Octave's symbolic package." #| pkg load symbolic syms sigma dT A = [0 1 0 0; 0 0 0 0; 0 0 0 1; 0 0 0 0]; B = [0 0; 1 0; 0 0; 0 1]; z = expm ( A * sigma ) ; Bd = int (z ,0 , dT ) * B ``` #### Python🐍 {.active} ```{python} #| label: lst-computing-NCV-Bd-py #| lst-cap: "Computing the discrete-time B matrix for the NCV model using Python's sympy package." #| output: asis import sympy as sp #from IPython.display import display, Math # symbols sigma, dT = sp.symbols("sigma dT", real=True) # matrices A = sp.Matrix([ [0, 1, 0, 0], [0, 0, 0, 0], [0, 0, 0, 1], [0, 0, 0, 0], ]) B = sp.Matrix([ [0, 0], [1, 0], [0, 0], [0, 1], ]) z = sp.exp(A * sigma) # SymPy matrix exponential # Bd = ∫_0^{dT} expm(A*sigma) dσ * B Bd = sp.integrate(z, (sigma, 0, dT)) * B Bd = sp.simplify(Bd) #sp.pprint(Bd) latex_Bd = sp.latex(Bd) # Bd is a sympy Matrix #display(Math(r"B_d = " + sp.latex(Bd, mat_str="pmatrix"))) # Jupyter display (not knit compatible) print(r"$$B_d = " + sp.latex(Bd, mat_str="pmatrix") + r"$$") # knit R compatible LaTeX output ``` ::: ### Rescaling the discrete-time NCV model - Again, we often state the discrete-time NCV model in terms of a 4-vector wk having rescaled components. - So, the overall discrete-time NCV model is $$ \begin{aligned} x_{k+1} &= \begin{bmatrix} 1 & \Delta t & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & \Delta t \\ 0 & 0 & 0 & 1 \end{bmatrix} x_k + w_k \\ z_k &= \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 \end{bmatrix} x_k + v_k \end{aligned} $$ - Remembering the meaning of the xk components, this is stating (what we expect!): $$\begin{aligned} \varepsilon_k= \varepsilon_{k-1} + \Delta t \dot{\varepsilon}_{k-1} + \text{noise} \\ {\eta}_k = {\eta}_{k-1} + \Delta t \dot{\eta}_{k-1} + \text{noise} \end{aligned} $$ ### NCV Time (dynamic) response using toolbox - Let us first consider simulating an NCP model using `lsim`. - Figure on the right shows the output from using the toolbox methods. ::: {.panel-tabset} #### Octave 🎶 ```{octave, results="asis",echo=TRUE} #| label: fig-l126-NCV-Toolbox-oct #| fig-cap: "Discrete-time NCV model simulation." pkg load control; maxT = 1000; % # simulation steps dT = 0.1; % sample period A = [1 dT 0 0; 0 1 0 0; 0 0 1 dT; 0 0 0 1]; Bw = [dT^2/2 0; dT 0; 0 dT^2/2; 0 dT]; C = [1 0 0 0; 0 0 1 0]; D = zeros(2); randn("seed", 123); w = 0.1 * randn(maxT, 2); % (T x 2) v = 0.01 * randn(maxT, 2); % (T x 2) x0 = [0; 0.1; 0; 0.1]; % (4 x 1) ncv = ss(A, Bw, C, D, dT); % discrete-time z = lsim(ncv, w, [], x0) + v; % (T x 2) plot(z(:,1), z(:,2)); xlabel("epsilon"); ylabel("eta"); ``` #### Python 🐍 {.active} ```{python} #| label: fig-l126-NCV-Toolbox-py #| fig-cap: "Discrete-time NCV model simulated using the toolbox methods." import numpy as np import matplotlib.pyplot as plt from scipy import signal # --- Model --- maxT = 1000 # simulation steps dT = 0.1 # sample period A = np.array([[1, dT, 0, 0], [0, 1, 0, 0], [0, 0, 1, dT], [0, 0, 0, 1]], dtype=float) Bw = np.array([[dT**2/2, 0], [dT, 0], [0, dT**2/2], [0, dT]], dtype=float) C = np.array([[1, 0, 0, 0], [0, 0, 1, 0]], dtype=float) D = np.zeros((2, 2), dtype=float) # --- Noise + initial state --- rng = np.random.default_rng(123) w = 0.1 * rng.standard_normal((maxT, 2)) # process noise input u_k v = 0.01 * rng.standard_normal((maxT, 2)) # measurement noise x0 = np.array([0, 0.1, 0, 0.1], dtype=float) # --- Discrete-time state-space + simulation --- sys = signal.dlti(A, Bw, C, D, dt=dT) t = np.arange(maxT) * dT # SciPy returns (t_out, y_out, x_out). For MIMO, y_out is (T, ny). t_out, y, x = signal.dlsim(sys, u=w, t=t, x0=x0) z = y + v # (T x 2) # --- Plot --- plt.figure() plt.plot(z[:, 0], z[:, 1]) plt.xlabel("epsilon") plt.ylabel("eta") plt.tight_layout() plt.show() ``` ::: ### Time (dynamic) response using direct method - In discrete-time we can implement the model without `lsim`. - We again use a 'for' loop to implement the state-equation recursion directly. ::: {.panel-tabset} #### Octave 🎶 ```{octave, results="asis",echo=TRUE} #| label: fig-l126-NCV-Direct-oct #| fig-cap: "Discrete-time NCV model simulated using the direct method." maxT = 1000; % simulation steps dT = 0.1; % sample period A = [1 dT 0 0; 0 1 0 0; 0 0 1 dT; 0 0 0 1]; Bw = [dT^2/2 0; dT 0; 0 dT^2/2; 0 dT]; C = [1 0 0 0; 0 0 1 0]; D = zeros(2); randn("seed", 123); w = 0.1 * randn(maxT, 2); % (T x 2) v = 0.01 * randn(2, maxT); % (2 x T) ✅ match C*x x0 = [0; 0.1; 0; 0.1]; % ✅ define initial state (x, vx, y, vy) % Simulate directly x = zeros(4, maxT); x(:,1) = x0; for k = 2:maxT x(:,k) = A * x(:,k-1) + Bw * w(k-1,:)'; % note w row -> column end z = C * x + v; % (2 x T) plot(z(1,:), z(2,:)); xlabel("x"); ylabel("y"); ``` #### Python 🐍 {.active} ```{python} #| label: fig-l126-NCV-Direct-py #| fig-cap: "Discrete-time NCV model simulated using the direct method." import numpy as np import matplotlib.pyplot as plt # --- Parameters --- maxT = 1000 dT = 0.1 A = np.array([[1, dT, 0, 0], [0, 1, 0, 0], [0, 0, 1, dT], [0, 0, 0, 1]], dtype=float) Bw = np.array([[dT**2/2, 0], [dT, 0], [0, dT**2/2], [0, dT]], dtype=float) C = np.array([[1, 0, 0, 0], [0, 0, 1, 0]], dtype=float) # --- Randomness (Octave-like seeding intent) --- rng = np.random.default_rng(123) w = 0.1 * rng.standard_normal((maxT, 2)) # (T x 2) v = 0.01 * rng.standard_normal((2, maxT)) # (2 x T) x0 = np.array([0, 0.1, 0, 0.1], dtype=float) # (4,) # --- Direct simulation --- x = np.zeros((4, maxT), dtype=float) x[:, 0] = x0 for k in range(1, maxT): x[:, k] = A @ x[:, k-1] + Bw @ w[k-1, :] z = C @ x + v # (2 x T) # --- Plot --- plt.figure() plt.plot(z[0, :], z[1, :]) plt.xlabel("x") plt.ylabel("y") plt.tight_layout() plt.show() ``` ::: - This code produced the figure on the right when using the same $w$ and $v$ as prior slide; results are indistinguishable. ### Converting the coordinated-turn model - Similarly, it can be shown that the discrete-time coordinated turn model in 2-d is: xk D2 6 6 41 sin.ĩt /= 0 .cos.ĩt/ 1/= 0 cos.ĩt / 0 sin.ĩt / 0 .1 cos.ĩt //= 1 sin.ĩt/= 0 sin.ĩt/ 0 cos.ĩt /3 7 7 5 xk1C2 6 6 4.1 cos.ĩt //=2 .sin.ĩt/ ĩt/=2sin.ĩt/= .cos.ĩt / 1/= .ĩt sin.ĩt//=2 .1 cos.ĩt //=2.1 cos.ĩt //= sin.ĩt/=3 7 7 5 wk1 ́k D 1 0 0 0 0 0 1 0xk C vk $$ \begin{aligned} x_k &= \begin{bmatrix} 1 & \frac{\sin(\Omega \Delta t)}{\Omega} & 0 & \frac{\cos(\Omega \Delta t) - 1 }{\Omega}\\ 0 & \cos(\Omega \Delta t) & 0 & -\sin(\Omega \Delta t) \\ 0 & \frac{1 - \cos(\Omega \Delta t)}{\Omega} & 1 & \frac{\sin(\Omega \Delta t)}{\Omega} \\ 0 & \sin(\Omega \Delta t) & 0 & \cos(\Omega \Delta t) \end{bmatrix} x_{k-1} + \begin{bmatrix} \frac{1 - \cos(\Omega \Delta t)}{\Omega} & \frac{\sin(\Omega \Delta t)}{\Omega} \\ \sin(\Omega \Delta t) & \frac{1 - \cos(\Omega \Delta t)}{\Omega} \\ \frac{1 - \cos(\Omega \Delta t)}{\Omega} & \frac{\sin(\Omega \Delta t)}{\Omega} \\ \sin(\Omega \Delta t) & \frac{1 - \cos(\Omega \Delta t)}{\Omega} \end{bmatrix} w_{k-1} \\ z_k &= \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 \end{bmatrix} x_k + v_k \end{aligned} $$ {#eq-jlbdkh} ### CT Time (dynamic) response using toolbox - Let’s first consider simulating an CT model using `lsim` ::: {.panel-tabset} #### Octave 🎶 ```octave #| label: fig-l126-CT-Toolbox-oct #| fig-cap: "Continuous-time CT model simulated using the toolbox methods." %% Simulate the CT model using lsim maxT = 1000; % # sim . steps randn("seed", 123); w = 0.01* randn (2 , maxT ) ; % rand input v = 0.01* randn (2 , maxT ) ; x0 = [0;0.1;0;0.1]; % init state dT = 0.1; W = 0.1; WT = W * dT ; sW = sin ( WT ) ; cW = cos ( WT ) ; A = [1 sW / W 0 ( cW -1) / W ; 0 cW 0 - sW ; 0 (1 - cW ) / W 1 sW / W ; 0 sW 0 cW ]; Bw = [(1 - cW ) / W ^2 , ( sW - WT ) / W ^2; sW /W , ( cW -1) / W ; ( WT - sW ) / W ^2 , (1 - cW ) / W ^2; (1 - cW ) /W , sW / W ]; C = [1 0 0 0; 0 0 1 0]; D = zeros(2); ct = ss(A , Bw ,C ,D , dT); z = lsim( ct ,w ,[] , x0 ) +v'; plot (z(:,1) ,z(:,2) ) ; ``` #### Python 🐍 {.active} ```{python} #| label: fig-l126-CT-Toolbox-py #| fig-cap: "Continuous-time CT model simulated using the toolbox methods." ``` ::: ### CT Time (dynamic) response using direct method ![](images/L.1.2.6-2.png){#fig-l126-CT-Direct-oct .column-margin group="slides" width="53mm"} - In discrete-time we can implement the model without `lsim`. - We again use a “for” loop to implement the state-equation recursion directly. ::: {.panel-tabset} ![](images/L.1.2.6-2.png){#fig-l126-CT-Direct-oct .column-margin group="slides" width="53mm"} #### Octave 🎶 ```octave #| label: fig-l126-CT-Direct-oct #| fig-cap: "Continuous-time CT model simulated using the direct method." %% Simulate the CT model using direct method maxT = 1000; % # sim . steps randn("seed", 123); w = 0.01* randn (2 , maxT ) ; % rand input v = 0.01* randn (2 , maxT ) ; x0 = [0;0.1;0;0.1]; % init state dT = 0.1; W = 0.1; WT = W * dT ; sW = sin ( WT ) ; cW = cos ( WT ) ; A = [1 sW / W 0 ( cW -1) / W ; 0 cW 0 - sW ; 0 (1 - cW ) / W 1 sW / W ; 0 sW 0 cW ]; Bw = [(1 - cW ) / W ^2 , ( sW - WT ) / W ^2; sW /W , ( cW -1) / W ; ( WT - sW ) / W ^2 , (1 - cW ) / W ^2; (1 - cW ) /W , sW / W ]; C = [1 0 0 0; 0 0 1 0]; D = zeros(2); %% Simulate the CT model directly % Assume A , Bw ,C ,D , maxT , x0 ,w , v defined x = zeros (4 , maxT ) ; % storage for x x (: ,1) = x0 ; % init state for k =2: maxT % simulate model x (: , k ) = A * x (: ,k -1) + Bw * w (: ,k -1) ; end z = C * x + v ; plot ( z (1 ,:) ,z (2 ,:) ) ; ``` ::: ### Summary ![block diagram of a continuous-time observer](images/kf-bc-023.png){#fig-kf-022 .column-margin group="slides" width="53mm"} ![block diagram of a continuous-time observer](images/kf-bc-023.png){#fig-kf-023 .column-margin group="slides" width="53mm"} - In this lesson, you learned two different ways to simulate discrete-time models in Octave: toolbox and direct. - Both methods produce identical results; which one you use is mainly a matter of preference. - You also learned how to convert NCP, NCV, and CT continuous-time models into discrete-time models. - Note that the continuous-time models and discrete-time models produce identical computations at the sample points, but different values in-between sample points (technically, the discrete-time state and output are not defined in-between sample points).
