This week’s slides

Supplementary Figure 1

My notes for Week 4 of the Natural Language Processing with Attention Labels Course in the Natural Language Processing Specialization Offered by DeepLearning.AI on Coursera

Learning Objectives

• Explain the motivation for reversible layers
• Integrate locality sensitive hashing into attention layers
• Describe the Reformer model

Deep learning and A.I. researchers push the field forward by looking for new techniques as well as refinements of old ideas to get better performance on tasks. In this lesson we cover reversible layers which allow us to leverage a time memory tradeoff to process book length sequences and handle contexts over a conversation.

TL;DR Chatbots 📈

Chatbots in a nutshell

• Chatbots are intelligent agents that can hold conversations with humans.
• Reversible layers allow us to trade memory for compute time.
• Reformer is an efficient transformer model that can handle long sequences.
• LSH Attention is a technique to reduce the memory requirements of transformers.

Tasks with Long Sequences

Figure 1: Context Window

This week we are going to learn about tasks that require processing longer sequences:

• Writing books
• Storytelling and understanding
• Building intelligent agents for conversations like chat-bots.

More specifically we will understand how re-former model (AKA the reversible transformer) and reversible layers work.

This week we will learn about the bottlenecks in these larger transformer models, and solutions we can use to make them trainable for you. We will also learn about the. Here is what we will be building for your programming assignment: A chatbot!

In many ways a Chat bot is very similar to a Q&A system which we built last week and that is also similar to query based summarization another task we covered a week before that. The new challenge is to manage what parts of the new and old context we keep around as the dialogue progresses. Chatbot are smart A.I. agents and much of the techniques developed under the umbrella of knowledge-based AI is also relevant in developing these. For instance carrying out actions on behalf of the user.

Chatbots can also get a very simple ui via the web or as an mobile app, which is another area I have some experience. However an even more powerful paradigm here is the ability to interact using voice which has many additional benefit for example supporting people with disabilities and operating in hands-free mode.

Here is a link to an AI Storytelling system.

Transformer Complexity

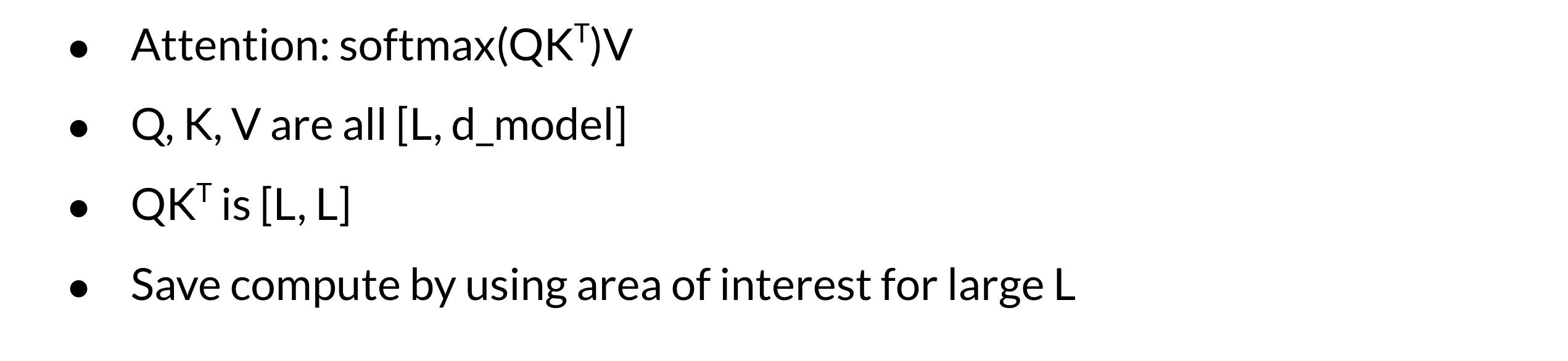

Figure 2: week-4

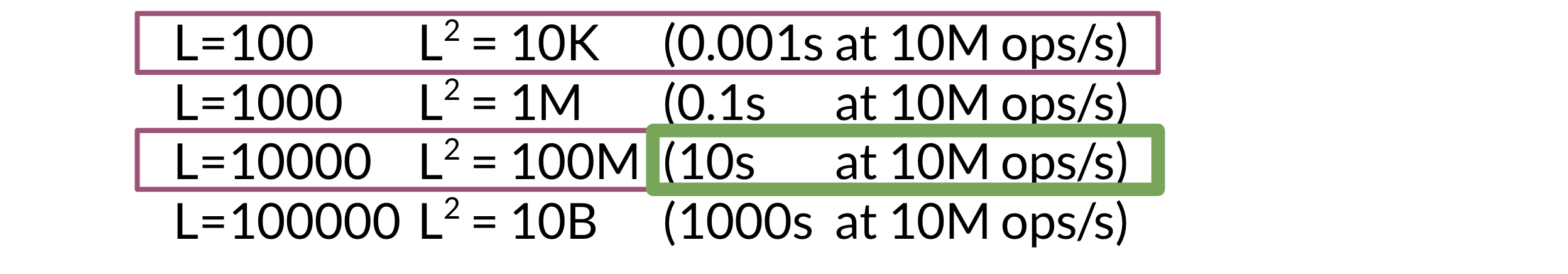

One of the biggest issues with the transformers is that it takes time and a lot of memory when training. Concretely here are the numbers. If we have a sequence of length L , then we need L^2*N memory to handle the sequence. So if we have N layers, that means your model will take N times more time to complete. As L gets larger, the memory and the time quickly increases.

Perhaps this is the reason people are looking into converting transformers into RNN after training.

Figure 3: week-4

When we are handling long sequences, we frequently don’t need to consider all L positions. We can just focus on an area of interest instead. For example, when translating a long text from one language to another, we don’t need to consider every word at once. We can instead focus on a single word being translated, and those immediately around it, by using attention.

To overcome the memory requirements we can recompute the activations. As long as we do it efficiently, we will be able to save a good amount of time and memory. We will learn this week how to do it. Instead of storing N layers, we will be able to recompute them when doing the back-propagation. That combined with local attention, will give we a much faster model that works at the same level as the transformer we learned about last week.

• one area where we can make headway is working with a subsequence of interest.

• during training we need to keep the activations in memory for the back propagation task. Clearly for inference we may be able to save on memory.

• the alternative is to discard the activations as we go along and recalculate later. This can allows trading memory for compute time. However with larger models compute time is also a bottleneck.

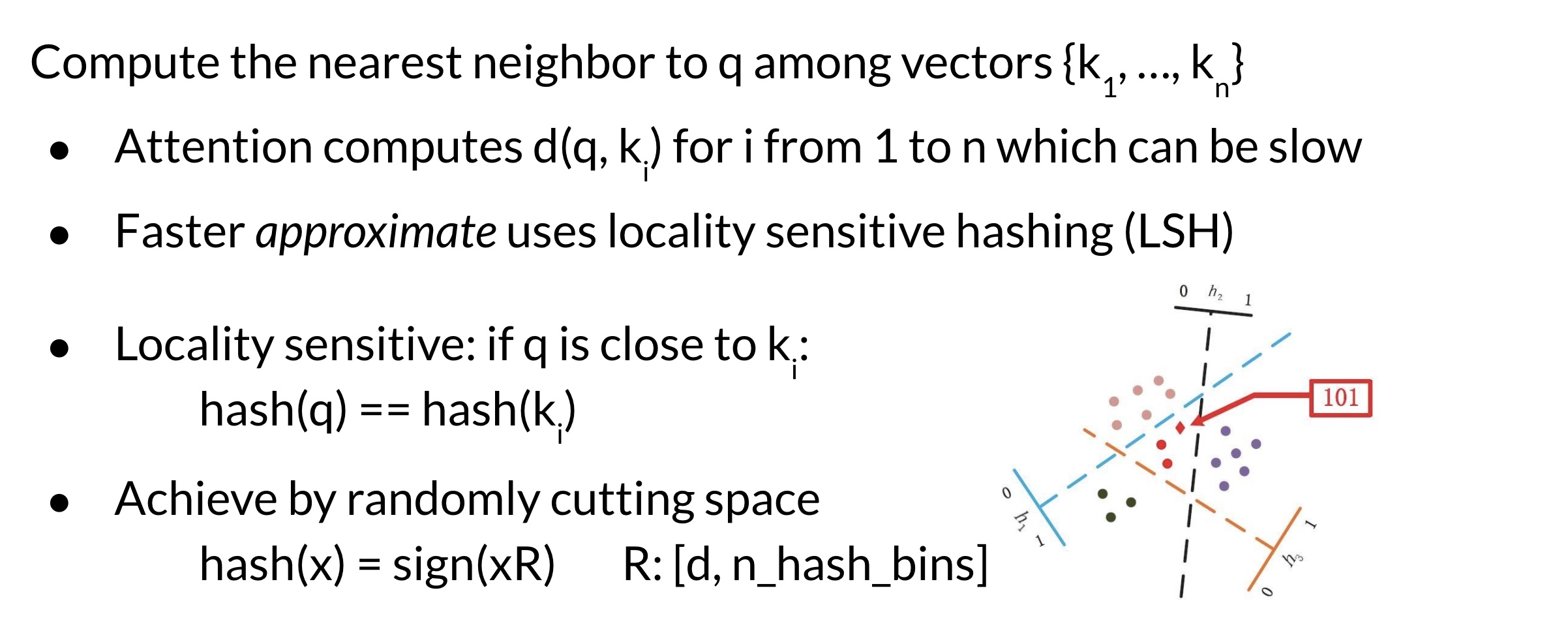

Figure 4: Approximate Nearest Neighbours

LSH Attention

In Course 1, we covered how locality sensitive hashing (LSH) works. We learned about:

• KNN
• Hash Tables and Hash Functions
• Locality Sensitive Hashing
• Multiple Planes

Here are the steps to follow to compute LSH given some vectors, where the vectors may correspond to the transformed word embedding that your transformer outputs.

Attention is used to try which query (q) and key (k) are the most similar. To do so, we hash q and the keys. This will put similar vectors in the same bucket that we can use. The drawing above shows the lines that separate the buckets. Those could be seen as the planes.

First let’s recall how the standard attention mechanism is defined as follows:

A(Q,K,V) = softmax(QK^T)V \tag{1}

Once we hash Q and K we will then compute standard attention on the bins that we have created. We will repeat the same process several times to increase the probability of having the same key in the same bin as the query.

Figure 5: week-4

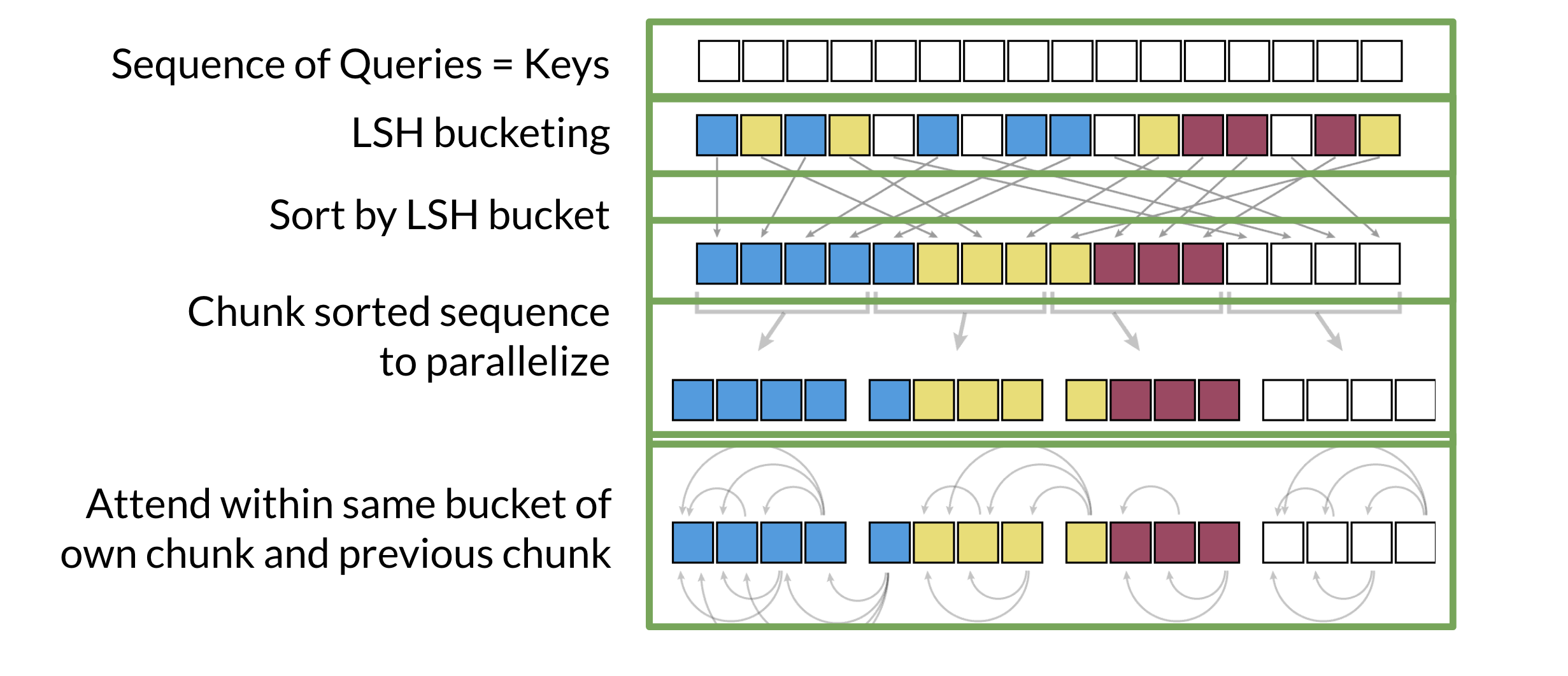

• Given the sequence of queries and keys, we hash them into buckets. Check out Course 1 Week 4 for a review of the hashing.
• We will then sort them by bucket.
• We split the buckets into chunks (this is a technical detail for parallel computing purposes).
• We then compute the attention within the same bucket of the chunk we are looking at and the previous chunk.

Q. Why do we need to look at the previous chunk?

We can see in the figure some buckets (both blue and yellow) have been split across two chunks. Looking at the previous chunk will let we attend to the full bucket.

In Winograd schemas the resolution of the ambiguous pronoun switches between the two variants of the sentence.

the animal didn’t cross the street because it was too tired / the animal didn’t cross the street because it was too wide / The city councilmen refused the demonstrators a permit because they feared violence. / The city councilmen refused the demonstrators a permit because they advocated violence. /

Reformer LSH

Reformer LSH

Motivation for Reversible Layers: Memory!

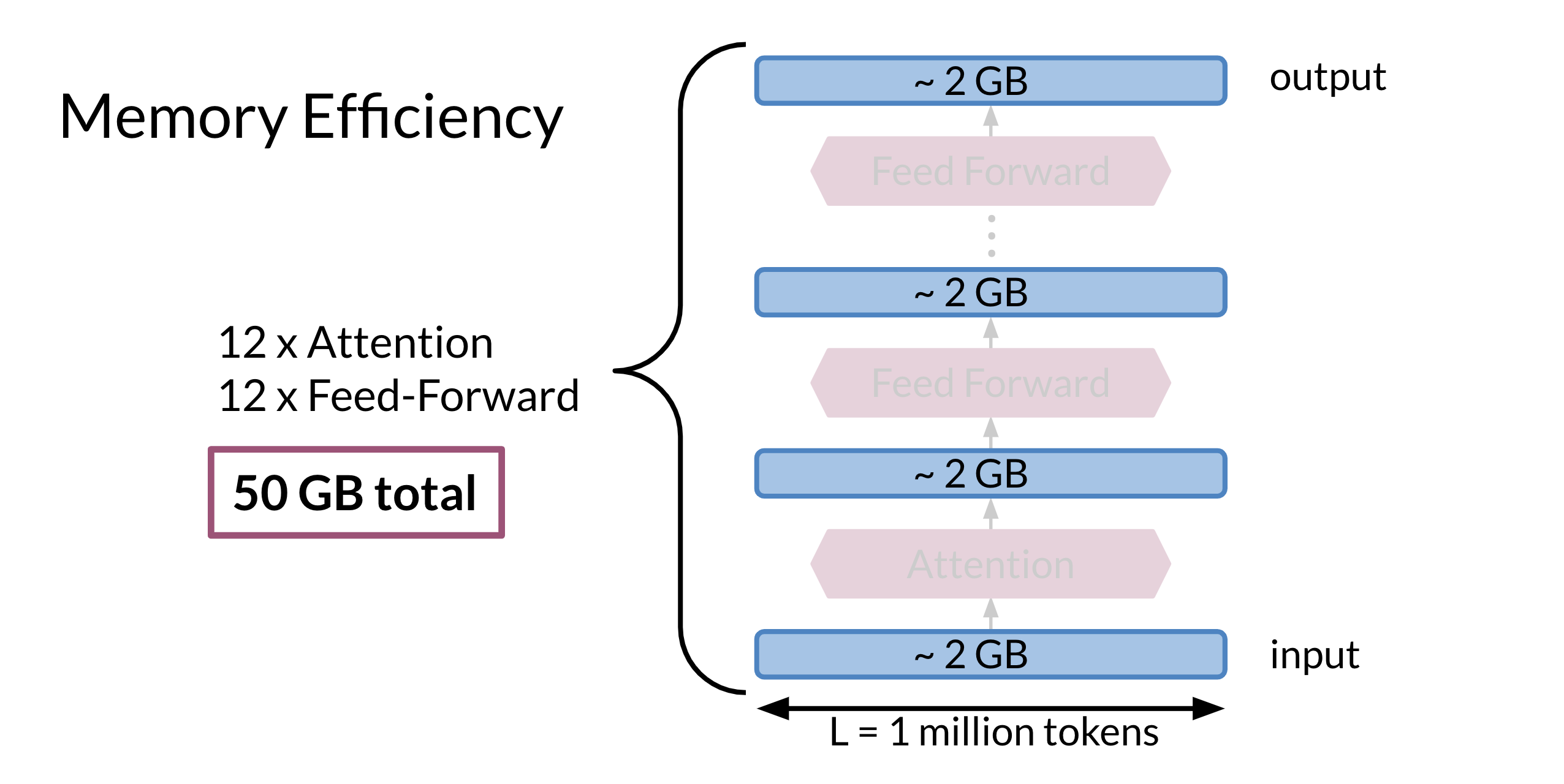

Figure 6: Memory efficency

For example in this model:

• 2 GB for the input
• 2 GB are required to compute the Attention
• 2 GB for the feed forward. There are 12 attention layers 12 feed forward layers. That is equal to 12 * 2 + 12*2 + 2 (for the input) = 50 GB. That is a lot of memory.

If N is the sequence length:

• Transformers need O(N^2) memory.

Each layer of a transformers has an Attention block and feed-forward block. If we want to process, for example to train a document of length 1 million token with 12 layers we will need 50 GB of ram. As we use residual architecture during prediction we only need the current layers input and the output for the next layer. But during training we need to keep all the copies so we can back-propagate the errors.

Reversible Residual Layers

Reformer

can run 1 million token in 16 gb

Lab 2: Reversible layers

From the trax documents a Residual, involves first a split and then a merge:

return Serial(
    Branch(shortcut, layer), # split
    Add(),                   # merge
)

where:

• Branch(shortcut, layers): makes two copies of the single incoming data stream, passes one copy via the shortcut (typically a no-op), and processes the other copy via the given layers (applied in series). [𝑛_{𝑖𝑛}=1, 𝑛_{𝑜𝑢𝑡}=2]
• Add(): combines the two streams back into one by adding two tensors element-wise. [𝑛_{𝑖𝑛}=2, 𝑛_{𝑜𝑢𝑡}=1]

In the Branch operation each layer in the input list copies as many inputs from the stack as it needs, and their outputs are successively combined on stack. Put another way, each element of the branch can have differing numbers of inputs and outputs. Let’s try a more complex example. To work these operations modify the stack by replicating the input needed as well as pushing the outputs (as specified using th out parameters).

References

• Practical and Optimal LSH for Angular Distance

Tokenization

1. SentencePiece: A simple and language independent subword tokenizer and detokenizer for Neural Text Processing (Kudo & Richardson 2018) sub-word tokenization
2. Subword Regularization: Improving Neural Network Translation Models with Multiple Subword Candidates (Kudo 2018) sub-word tokenization
3. Neural Machine Translation of Rare Words with Subword Units (Sennrich et all 2016) sub-word tokenization
4. Subword tokenizers TF tutorial sub-word tokenization
5. [https://blog.floydhub.com/tokenization-nlp/]
6. Swivel: Improving Embeddings by Noticing What’s Missing (Shazeer, 2016)

Transformers

1. [Exploring the Limits of Transfer Learning with a Unified Text-to-Text Transformer] (Raffel et al, 2019)

2. [Reformer: The Efficient Transformer] (Kitaev et al, 2020)
3. Attention Is All We Need (Vaswani et al, 2017) Vaswani et al. (2023)
4. [Deep contextualized word representations] (Peters et al, 2018)
5. [BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding] (Devlin et al, 2018)
6. [Finetuning Pretrained Transformers into RNNs] (Kasai et all 2021)
7. [The Illustrated Transformer] (Alammar, 2018)
8. [The Illustrated GPT-2] (Alammar, 2019)
9. [How GPT3 Works - Visualizations and Animations] (Alammar, 2020)
10. In Weng (2018) the author covers many attention mechanism Attention? Attention!
11. [The Transformer Family] (Lilian Weng, 2020)
12. Teacher forcing for RNNs

Question Answering Task:

• In Rush (2015) , a paper titled A Neural Attention Model for Abstractive Sentence Summarization the authors discuss the summarization task.

The first two videos can be viewed on youtube.

Video 1: Christopher Manning in Stanford CS224N: NLP with Deep Learning | Winter 2019 | Lecture 10 On Question Answering.

Video 2: Christopher Manning and Danqi Chen in Stanford CS224N NLP with Deep Learning | Winter 2021 | Lecture 12 - Question Answering

Video 3

Links

• Jax

• Trax

• Trax community on Gitter

• CNN daily mail dataset

• Lei Mao Machine Learning, Artificial Intelligence, Computer Science.

• Byte Pair Encoding (Lei Mao 2021)

• Exploring the Limits of Transfer Learning with a Unified Text-to-Text Transformer

• Reformer: The Efficient Transformer

• Attention Is All We Need

• Deep contextualized word representations

• The Illustrated Transformer

• The Illustrated GPT-2

• BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding

• How GPT3 Works - Visualizations and Animations

• Attention? Attention! (Lilian Weng, 2018)

• The Transformer Family “(Lilian Weng, 2020)”

• Finetuning Pretrained Transformers into RNNs “(Kasai et all 2021)”

References

Rush, AM. 2015. “A Neural Attention Model for Abstractive Sentence Summarization.” arXiv Preprint arXiv:1509.00685.

Vaswani, Ashish, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N. Gomez, Lukasz Kaiser, and Illia Polosukhin. 2023. “Attention Is All You Need.” https://arxiv.org/abs/1706.03762.

Weng, Lilian. 2018. “Attention? Attention!” Lilianweng.github.io. https://lilianweng.github.io/posts/2018-06-24-attention/.
