The videos describe two ‘reforms’ made to the Transformer to make it more memory and compute efficient. The Reversible Layers reduce memory and Locality Sensitive Hashing(LSH) reduces the cost of the Dot Product attention for large input sizes. This ungraded lab will look more closely at LSH and how it is used in the Reformer model.
Specifically, the notebook has 3 goals
review dot-product self attention for reference
examine LSH based self attention
extend our understanding and familiarity with Trax infrastructure
Trax is similar to other popular NN development platforms such as Keras (now integrated into Tensorflow) and Pytorch in that it uses ‘layers’ as a useful level of abstraction. Layers are often represented as classes. We’re going to improve our understanding of Trax by locally extending the classes used in the attention layers. We will extend only the ‘forward’ functions and utilize the existing attention layers as parent classes. The original code can be found at github:trax/layers/Research/Efficient_attention. This link references release 1.3.4 but note that this is under the ‘research’ directory as this is an area of active research. When accessing the code on Github for review on this assignment, be sure you select the 1.3.4 release tag, the master copy may have new changes.:

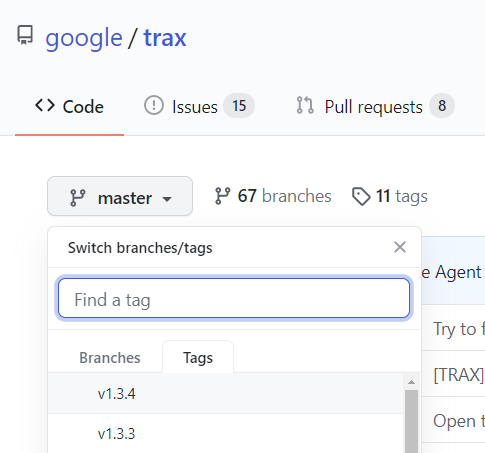

Figure 1: Reference Tag 1.3.4 on github
While Trax uses classes liberally, we have not built many classes in the course so far. Let’s spend a few moments reviewing the classes we will be using.

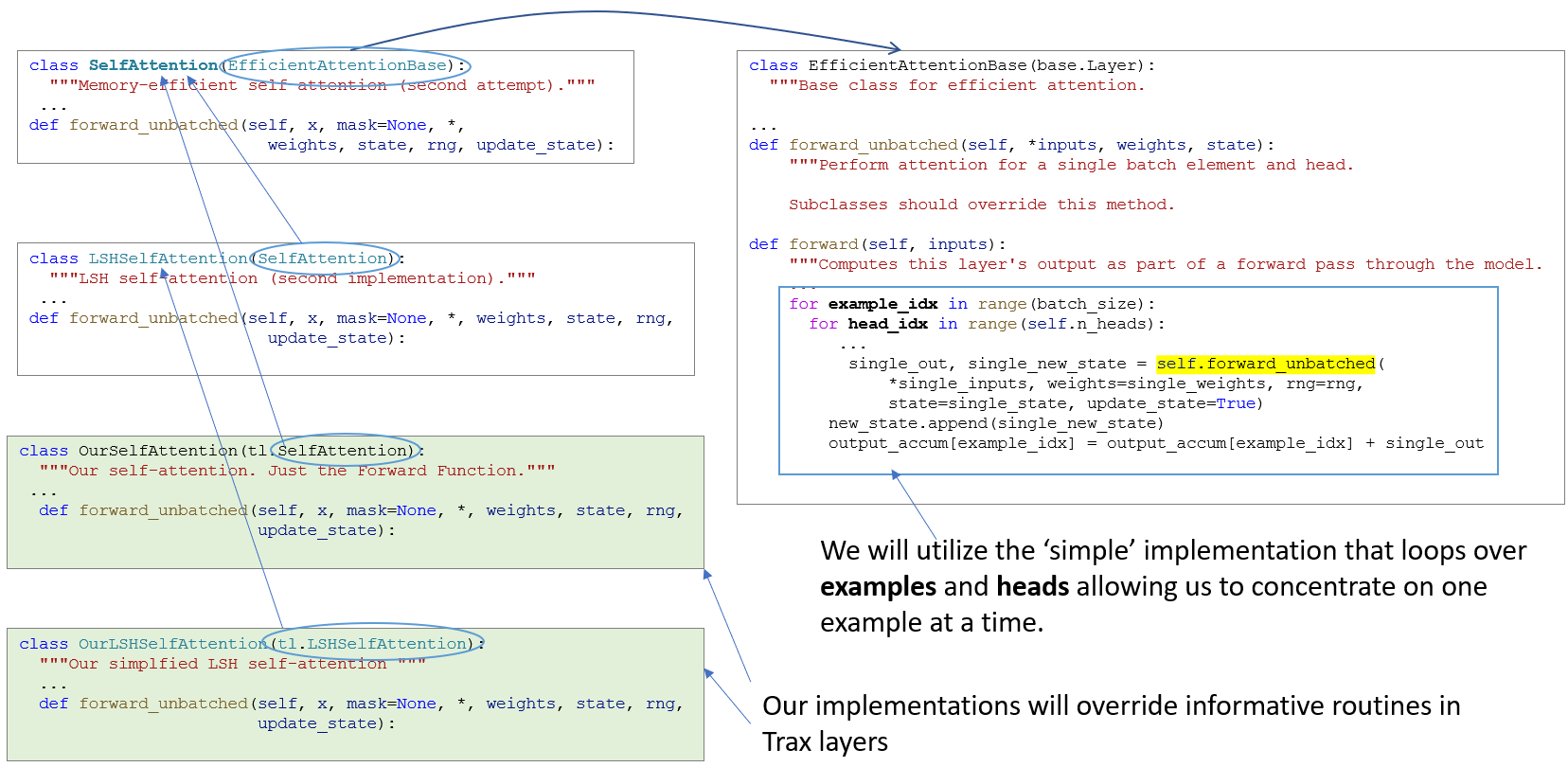

Figure 2: Classes from Trax/layers/Research/Efficient_Attention.py that we will be utilizing
Starting on the right in the diagram below you see EfficientAttentionBase. The parent to this class is the base.layer which has the routines used by all layers. EfficientAttentionBase leaves many routines to be overridden by child classes - but it has an important feature in the Forward routine. It supports a use_reference_code capability that selects implementations that limit some of the complexities to provide a more easily understood version of the algorithms. In particular, it implements a nested loop that treats each ‘example, head’ independently. This simplifies our work as we need only worry about matrix operations on one ‘example, head’ at a time. This loop calls forward_unbatched, which is the child process that we will be overriding.
On the top left are the outlines of the two child classes we will be using. The SelfAttention layer is a ‘traditional’ implementation of the dot product attention. We will be implementing the forward_unbatched version of this to highlight the differences between this and the LSH implementation.
Below that is the LSHSelfAttention. This is the routine used in the Reformer architecture. We will override the forward_unbatched section of this and some of the utility functions it uses to explore its implementation in more detail.
The code we will be working with is from the Trax source, and as such has implementation details that will make it a bit harder to follow. However, it will allow use of the results along with the rest of the Trax infrastructure. I will try to briefly describe these as they arise. The Trax documentation can also be referenced.
Part 1.2 Trax Details
The goal in this notebook is to override a few routines in the Trax classes with our own versions. To maintain their functionality in a full Trax environment, many of the details we might ignore in example version of routines will be maintained in this code. Here are some of the considerations that may impact our code:
Trax operates with multiple back-end libraries, we will see special cases that will utilize unique features.
‘Fancy’ numpy indexing is not supported in all backend environments and must be emulated in other ways.
Some operations don’t have gradients for backprop and must be ignored or include forced re-evaluation.
Here are some of the functions we may see:
Abstracted as fastmath, Trax supports multiple backend’s such as Jax and Tensorflow2
tie_in: Some non-numeric operations must be invoked during backpropagation. Normally, the gradient compute graph would determine invocation but these functions are not included. To force re-evaluation, they are ‘tied’ to other numeric operations using tie_in.
stop_gradient: Some operations are intentionally excluded from backprop gradient calculations by setting their gradients to zero.
Below we will execute from trax.fastmath import numpy as np, this uses accelerated forms of numpy functions. This is, however a subset of numpy
import osimport traxfrom trax import layers as tl # core building blockimport jaxfrom trax import fastmath # uses jax, offers numpy on steroids# fastmath.use_backend('tensorflow-numpy')import functoolsfrom trax.fastmath import numpy as np # note, using fastmath subset of numpy!from trax.layers import ( tie_in, length_normalized, apply_broadcasted_dropout, look_adjacent, permute_via_gather, permute_via_sort,)# def tie_in(x, y):# if fastmath.backend_name() == 'jax':# return jax.lax.tie_in(x, y)# return y
2025-02-23 13:21:25.257698: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1740309685.270437 1538144 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1740309685.274438 1538144 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
---------------------------------------------------------------------------ImportError Traceback (most recent call last)
Cell In[1], line 10 8importfunctools 9fromtrax.fastmathimport numpy as np # note, using fastmath subset of numpy!---> 10fromtrax.layersimport (
11 tie_in,
12 length_normalized,
13 apply_broadcasted_dropout,
14 look_adjacent,
15 permute_via_gather,
16 permute_via_sort,
17 )
20# def tie_in(x, y): 21# if fastmath.backend_name() == 'jax': 22# return jax.lax.tie_in(x, y) 23# return yImportError: cannot import name 'tie_in' from 'trax.layers' (/home/oren/work/notes/notes-nlp/.venv/lib/python3.10/site-packages/trax/layers/__init__.py)
Part 2 Full Dot-Product Self Attention
Part 2.1 Description

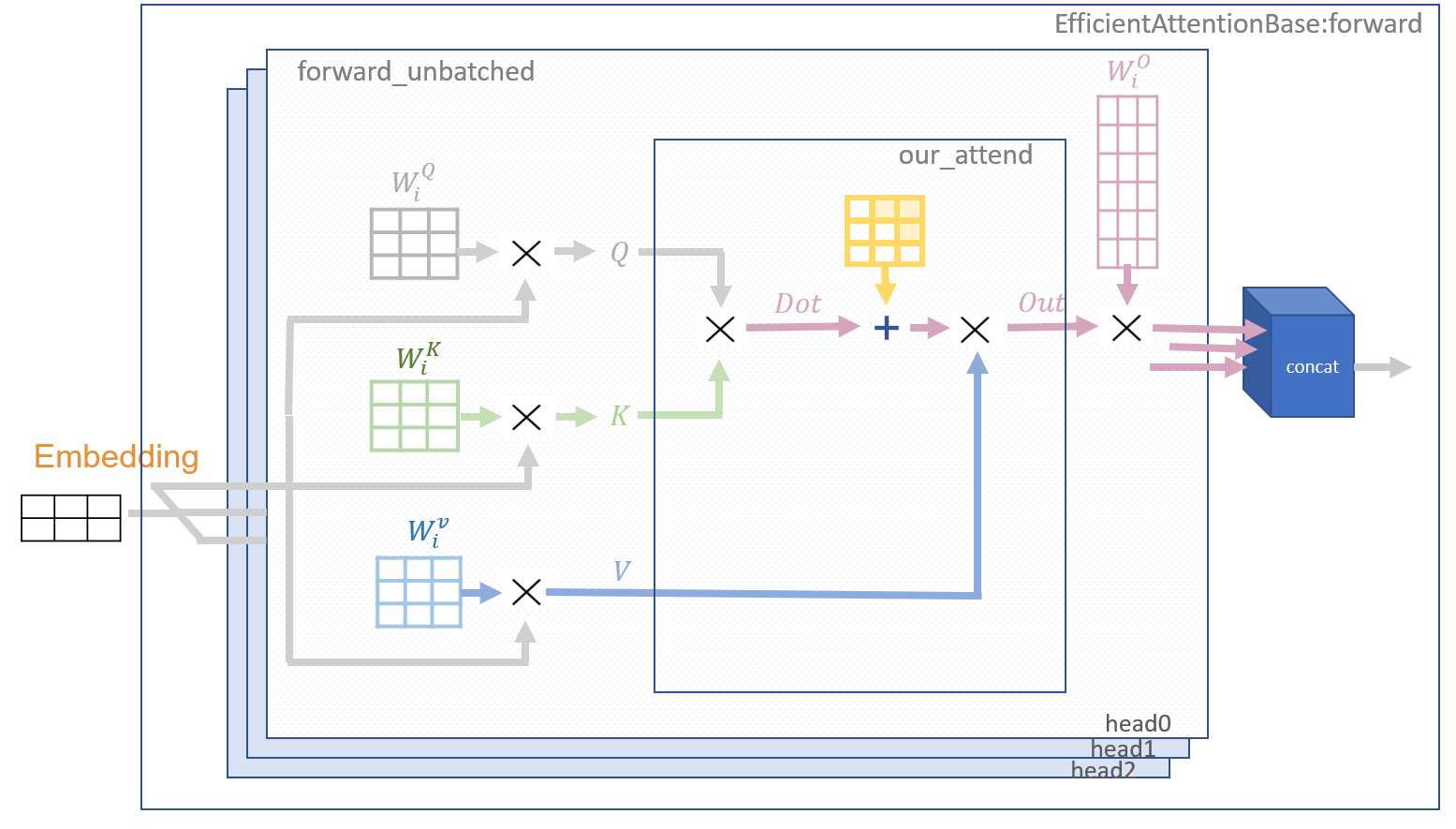

Figure 3: Project datapath and primary data structures and where they are implemented
The diagram above shows many of the familiar data structures and operations related to attention and describes the routines in which they are implemented. We will start by working on our_simple_attend or our simpler version of the original attend function. We will review the steps in performing dot-product attention with more focus on the details of the operations and their significance. This is useful when comparing to LSH attention. Note we will be discussing a single example/head unless otherwise specified.

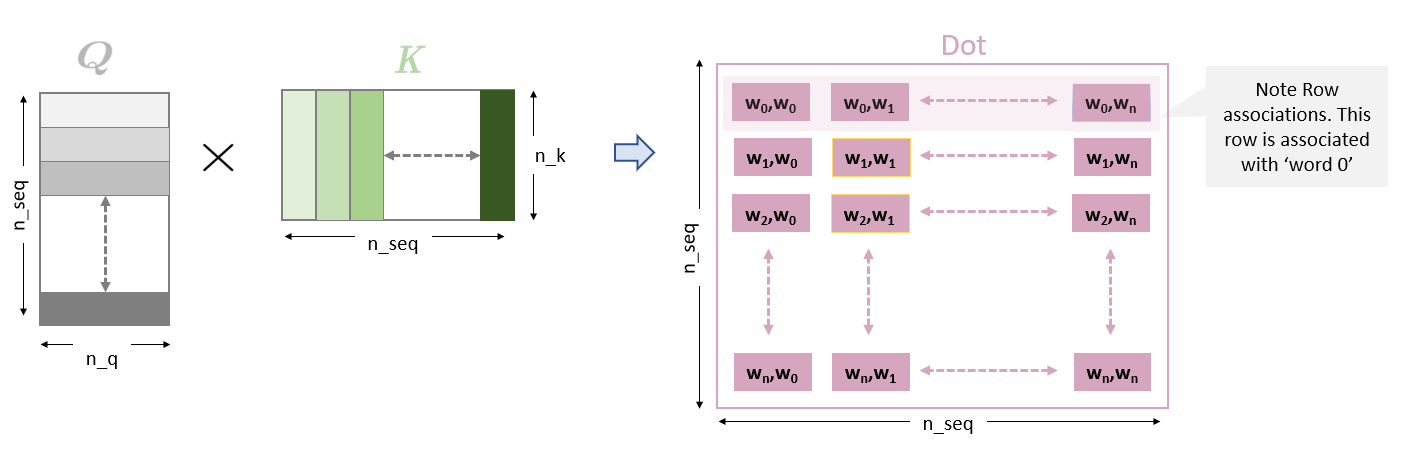

Figure 4: Dot-product of Query and Key
The attend function receives Query and Key. As a reminder, they are produced by a matrix multiply of all the inputs with a single set of weights. We will describe the inputs as embeddings assuming an NLP application, however, this is not required. This matrix multiply very much like a convolutional network where a set of weights (a filter) slide across the input vectors leaving behind a map of the similarity of the input to the filter. In this case, the filters are the weight matrices W^Q and W^K. The resulting maps are Q and K. Q and K have the dimensions of (n_seq, n_q) where n_seq is the number input embeddings and n_q or n_k is the selected size of the Q or K vectors. Note the shading of Q and K, this reflects the fact that each entry is associated with a particular input embedding. You will note later in the code that K is optional. Apparently, similar results can be achieved using Query alone saving the compute and storage associated with K. In that case, the dot-product in attend is matmul(q,q). Note the resulting dot-product (Dot) entries describe a complete (n_seq,n_seq) map of the similarity of all entries of q vs all entries of k. This is reflected in the notation in the dot-product boxes of w_n,w_m representing word_n, word_m. Note that each row of Dot describes the relationship of an input embedding, say w_0, with every other input.
In some applications some values are masked. This can be used, for example to exclude results that occur later in time (causal) or to mask padding or other inputs.

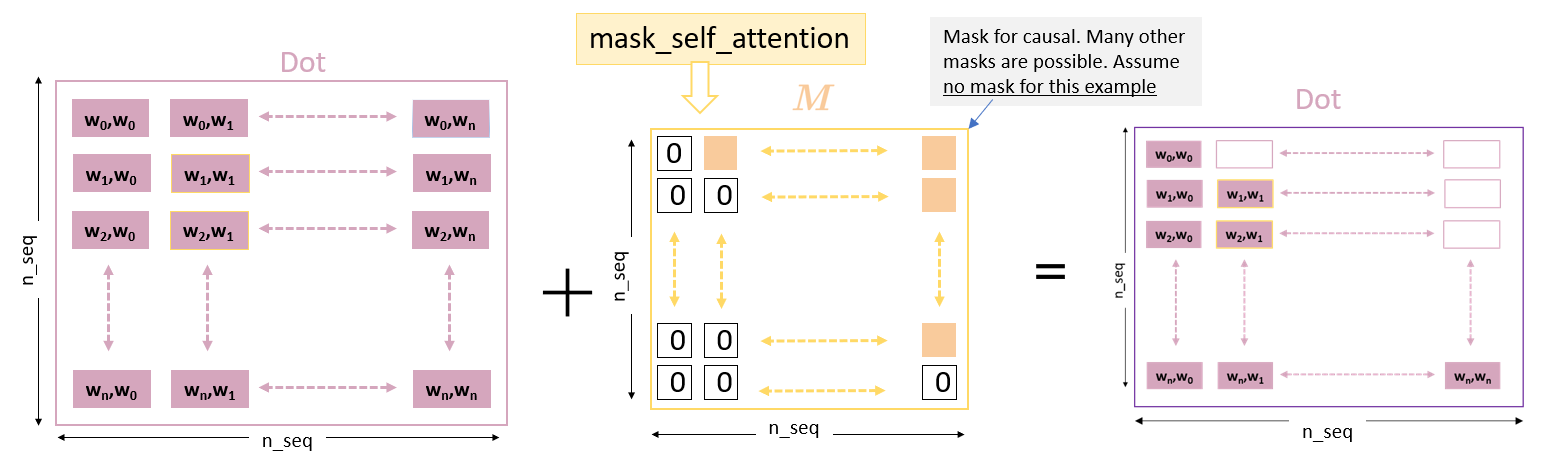

Figure 5: Masking
The routine below mask_self_attention implements a flexible masking capability. The masking is controlled by the information in q_info and kv_info.
A SoftMax is applied per row of the Dot matrix to scale the values in the row between 0 and 1.
Figure 6: SoftMax per row of Dot
Part 2.1.1 our_softmax
This code uses a separable form of the softmax calculation. Recall the softmax:
softmax(x_i)=\frac{\exp(x_i)}{\sum_j \exp(x_j)}\tag{1}
This can be alternately implemented as:
logsumexp(x)=\log{({\sum_j \exp(x_j)})}\tag{2}
softmax(x_i)=\exp({x_i - logsumexp(x)})\tag{3}
The work below will maintain a copy of the logsumexp allowing the softmax to be completed in sections. You will see how this is useful later in the LSHSelfAttention class.
We’ll create a routine to implement that here with the addition of a passthrough. The matrix operations we will be working on below are easier to follow if we can maintain integer values. So, for tests, we will skip the softmax in some cases.
The purpose of the dot-product is to ‘focus attention’ on some of the inputs. Dot now has entries appropriately scaled to enhance some values and reduce others. These are now applied to the V entries.

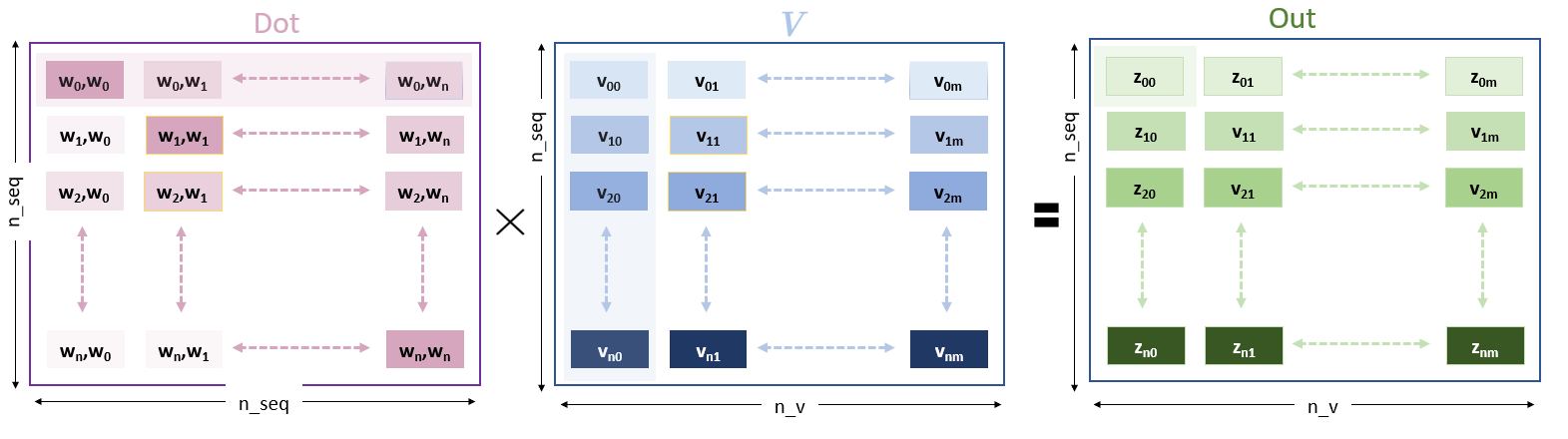

Figure 7: Applying Attention to V
V is of size (n_seq,n_v). Note the shading in the diagram. This is to draw attention to the operation of the matrix multiplication. This is detailed below.

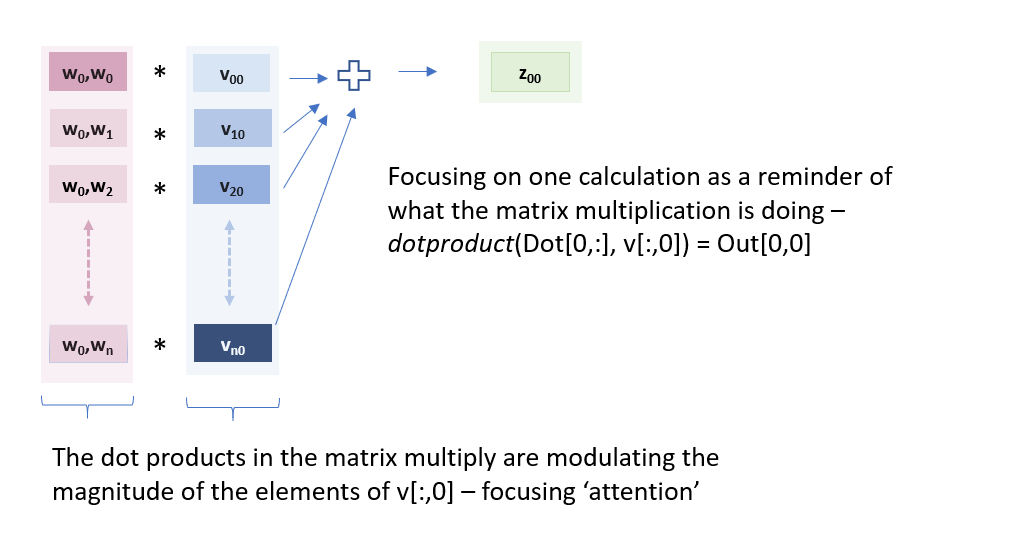

Figure 8: Matrix Multiply
V is formed by a matrix multiply of the input embedding with the weight matrix W^v whose values were set by backpropagation. The row entries of V are then related to the corresponding input embedding. The matrix multiply weights first column of V, representing a section of each of the input embeddings, with the first row of Dot, representing the similarity of W_0 and each word of the input embedding and deposits the value in Z
Part 2.2 our_simple_attend
In this section we’ll work on an implementation of attend whose operations you can see in figure 3. It is a slightly simplified version of the routine in efficient_attention.py. We will fill in a few lines of code. The main goal is to become familiar with the routine. You have implemented similar functionality in a previous assignment.
InstructionsStep 1: matrix multiply (np.matmul) q and the k ‘transpose’ kr. Step 2: use our_softmax() to perform a softmax on masked output of the dot product, dots. Step 3: matrix multiply (np.matmul) dots and v.
def our_simple_attend( q, k=None, v=None, mask_fn=None, q_info=None, kv_info=None, dropout=0.0, rng=None, verbose=False, passthrough=False ):"""Dot-product attention, with masking, without optional chunking and/or. Args: q: Query vectors, shape [q_len, d_qk] k: Key vectors, shape [kv_len, d_qk]; or None v: Value vectors, shape [kv_len, d_v] mask_fn: a function reference that implements masking (e.g. mask_self_attention) q_info: Query-associated metadata for masking kv_info: Key-associated metadata for masking dropout: Dropout rate rng: RNG for dropout Returns: A tuple (output, dots_logsumexp). The output has shape [q_len, d_v], and dots_logsumexp has shape [q_len]. The logsumexp of the attention probabilities is useful for combining multiple rounds of attention (as in LSH attention). """assert v isnotNone share_qk = (k isNone)if share_qk: k = qif kv_info isNone: kv_info = q_infoif share_qk: k = length_normalized(k) k = k / np.sqrt(k.shape[-1])# Dot-product attention. kr = np.swapaxes(k, -1, -2) # note the fancy transpose for later..## Step 1 ## dots = np.matmul(q, kr )if verbose: print("Our attend dots", dots.shape)# Maskingif mask_fn isnotNone: dots = mask_fn(dots, q_info[..., :, None], kv_info[..., None, :])# Softmax.#dots_logsumexp = fastmath.logsumexp(dots, axis=-1, keepdims=True) #original#dots = np.exp(dots - dots_logsumexp) #original## Step 2 ###replace with our_softmax() dots, dots_logsumexp = our_softmax(dots, passthrough=passthrough)if verbose: print("Our attend dots post softmax", dots.shape, dots_logsumexp.shape)if dropout >0.0:assert rng isnotNone# Dropout is broadcast across the bin dimension dropout_shape = (dots.shape[-2], dots.shape[-1]) keep_prob = tie_in(dots, 1.0- dropout) keep = fastmath.random.bernoulli(rng, keep_prob, dropout_shape) multiplier = keep.astype(dots.dtype) / tie_in(keep, keep_prob) dots = dots * multiplier## Step 3 ### The softmax normalizer (dots_logsumexp) is used by multi-round LSH attn. out = np.matmul(dots, v)if verbose: print("Our attend out1", out.shape) out = np.reshape(out, (-1, out.shape[-1]))if verbose: print("Our attend out2", out.shape) dots_logsumexp = np.reshape(dots_logsumexp, (-1,))return out, dots_logsumexp
seq_len =8emb_len =5d_qk =3d_v =4with fastmath.use_backend("jax"): # specify the backend for consistency rng_attend = fastmath.random.get_prng(1) q = k = jax.random.uniform(rng_attend, (seq_len, d_qk), dtype=np.float32) v = jax.random.uniform(rng_attend, (seq_len, d_v), dtype=np.float32) o, logits = our_simple_attend( q, k, v, mask_fn=None, q_info=None, kv_info=None, dropout=0.0, rng=rng_attend, verbose=True, )print(o, "\n", logits)
This notebook is ungraded, so for reference, the completed code follows:
def our_simple_attend(
q, k=None, v=None,
mask_fn=None, q_info=None, kv_info=None,
dropout=0.0, rng=None, verbose=False, passthrough=False
):
"""Dot-product attention, with masking, without optional chunking and/or.
Args:
q: Query vectors, shape [q_len, d_qk]
k: Key vectors, shape [kv_len, d_qk]; or None
v: Value vectors, shape [kv_len, d_v]
mask_fn: a function reference that implements masking (e.g. mask_self_attention)
q_info: Query-associated metadata for masking
kv_info: Key-associated metadata for masking
dropout: Dropout rate
rng: RNG for dropout
Returns:
A tuple (output, dots_logsumexp). The output has shape [q_len, d_v], and
dots_logsumexp has shape [q_len]. The logsumexp of the attention
probabilities is useful for combining multiple rounds of attention (as in
LSH attention).
"""
assert v is not None
share_qk = (k is None)
if share_qk:
k = q
if kv_info is None:
kv_info = q_info
if share_qk:
k = length_normalized(k)
k = k / np.sqrt(k.shape[-1])
# Dot-product attention.
kr = np.swapaxes(k, -1, -2) #note the fancy transpose for later..
## Step 1 ##
dots = np.matmul(q, kr )
if verbose: print("Our attend dots", dots.shape)
# Masking
if mask_fn is not None:
dots = mask_fn(dots, q_info[..., :, None], kv_info[..., None, :])
# Softmax.
#dots_logsumexp = fastmath.logsumexp(dots, axis=-1, keepdims=True) #original
#dots = np.exp(dots - dots_logsumexp) #original
## Step 2 ##
#replace with our_softmax()
dots, dots_logsumexp = our_softmax(dots, passthrough=passthrough)
if verbose: print("Our attend dots post softmax", dots.shape, dots_logsumexp.shape)
if dropout > 0.0:
assert rng is not None
# Dropout is broadcast across the bin dimension
dropout_shape = (dots.shape[-2], dots.shape[-1])
keep_prob = tie_in(dots, 1.0 - dropout)
keep = fastmath.random.bernoulli(rng, keep_prob, dropout_shape)
multiplier = keep.astype(dots.dtype) / tie_in(keep, keep_prob)
dots = dots * multiplier
## Step 3 ##
# The softmax normalizer (dots_logsumexp) is used by multi-round LSH attn.
out = np.matmul(dots, v)
if verbose: print("Our attend out1", out.shape)
out = np.reshape(out, (-1, out.shape[-1]))
if verbose: print("Our attend out2", out.shape)
dots_logsumexp = np.reshape(dots_logsumexp, (-1,))
return out, dots_logsumexp
Part 2.3 Class OurSelfAttention
Here we create our own self attention layer by creating a class OurSelfAttention. The parent class will be the tl.SelfAttention layer in Trax. We will only override the forward_unbatched routine.
We’re not asking you to modify anything in this routine. There are some comments to draw your attention to a few lines.
class OurSelfAttention(tl.SelfAttention):"""Our self-attention. Just the Forward Function."""def forward_unbatched(self, x, mask=None, *, weights, state, rng, update_state, verbose=False ):print("ourSelfAttention:forward_unbatched")del update_state attend_rng, output_rng = fastmath.random.split(rng)ifself.bias:ifself.share_qk: w_q, w_v, w_o, b_q, b_v = weightselse: w_q, w_k, w_v, w_o, b_q, b_k, b_v = weightselse:ifself.share_qk: w_q, w_v, w_o = weightselse: w_q, w_k, w_v, w_o = weightsprint("x.shape,w_q.shape", x.shape, w_q.shape) q = np.matmul(x, w_q) k =Noneifnotself.share_qk: k = np.matmul(x, w_k) v = np.matmul(x, w_v)ifself.bias: q = q + b_qifnotself.share_qk: k = k + b_k v = v + b_v mask_fn = functools.partial( mask_self_attention, causal=self.causal, exclude_self=self.share_qk, masked=self.masked, ) q_info = kv_info = tie_in(x, np.arange(q.shape[-2], dtype=np.int32))assert (mask isnotNone) ==self.maskedifself.masked:# mask is a boolean array (True means "is valid token") ones_like_mask = tie_in(x, np.ones_like(mask, dtype=np.int32)) kv_info = kv_info * np.where(mask, ones_like_mask, -ones_like_mask)# Notice, we are callout our vesion of attend o, _ = our_simple_attend( q, k, v, mask_fn=mask_fn, q_info=q_info, kv_info=kv_info, dropout=self.attention_dropout, rng=attend_rng, verbose=True, )# Notice, wo weight matrix applied to output of attend in forward_unbatched out = np.matmul(o, w_o) out = apply_broadcasted_dropout(out, self.output_dropout, output_rng)return out, state
## Part 3.0 Trax LSHSelfAttention ## Part 3.1 Description The larger the matrix multiply in the previous section is, the more context can be taken into account when making the next decision. However, the self attention dot product grows as the size of the input squared. For example, if one wished to have an input size of 1024, that would result in 1024^2 or over a million dot products for each head! As a result, there has been significant research related to reducing the compute requirements. One such approach is Locality Sensitive Hashing(LSH) Self Attention.
You may recall, earlier in the course you utilized LSH to find similar tweets without resorting to calculating cosine similarity for each pair of embeddings. We will use a similar approach here. It may be best described with an example.

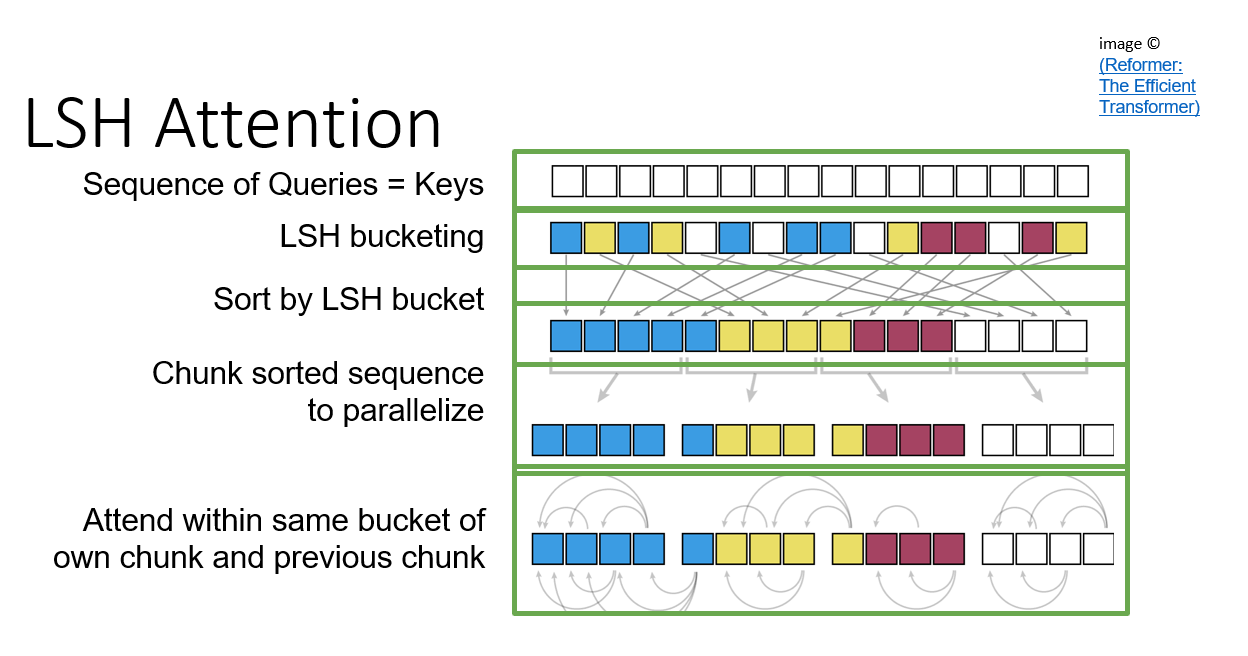

Figure 9: Example of LSH Self Attention
LSH Self attention uses Queries only, no Keys. Attention then generates a metric of the similarity of each value of Q relative to all the other values in Q. An earlier assignment demonstrated that values which hash to the same bucket are likely to be similar. Further, multiple random hashes can improve the chances of finding entries which are similar. This is the approach taken here, though the hash is implemented a bit differently. The values of Q are hashed into buckets using a randomly generated set of hash vectors. Multiple sets of hash vectors are used, generating multiple hash tables. In the figure above, we have 3 hash tables with 4 buckets in each table. Notionally, following the hash, the values of Q have been replicated 3 times and distributed to their appropriate bucket in each of the 3 tables. To find similarity then, one generates dot-products only between members of the buckets. The result of this operation provides information on which entries are similar. As the operation has been distributed over multiple hash tables, these results need to be combined to form a complete picture and this can be used to generate a reduced dot-product attention array. Its clear that because we do not do a compare of every value vs every other value, the size of Dots will be reduced.
The challenge in this approach is getting it to operate efficiently. You may recall from the earlier assignments the buckets were lists of entries and had varying length. This will operate poorly on a vector processing machine such as a GPU or TPU. Ideally, operations are done in large blocks with uniform sizes. While it is straightforward to implement the hash algorithm this way, it is challenging to managed buckets and variable sized dot-products. This will be discussed further below. For now, we will examine and implement the hash function.
## Part 3.2 our_hash_vectors
our_hash_vectors, is a reimplementation of Trax hashvector. It takes in an array of vectors, hashes the entries and returns and array assigning each input vector to n_hash buckets. Hashing is described as creating random rotations, see Practical and Optimal LSH for Angular Distance.
Figure 10: Processing steps in our_hash_vectors
Note, in the diagram, sizes relate to our expected input Q while our_hash_vectors is written assuming a generic input vector
InstructionsStep 1 create an array of random normal vectors which will be our hash vectors. Each vector will be hashed into a hash table and into rot_size//2 buckets. We use rot_size//2 to reduce computation. Later in the routine we will form the negative rotations with a simple negation and concatenate to get a full rot_size number of rotations. * use fastmath.random.normal and create an array of random vectors of shape (vec.shape[-1],n_hashes, rot_size//2)
Step 2 In this step we simply do the matrix multiply. jax has an accelerated version of einsum. Here we will utilize more conventional routines.
Step 2x * 2a: np.reshape random_rotations into a 2 dimensional array ([-1, n_hashes * (rot_size // 2)]) * 2b: np.dot vecs and random_rotations forming our rotated_vecs * 2c: back to 3 dimension with np.reshape [-1, n_hashes, rot_size//2] * 2d: prepare for concatenating by swapping dimensions np.transpose (1, 0, 2) Step 3 Here we concatenate our rotation vectors getting a fullrot_size number of buckets (note, n_buckets = rotsize) * use np.concatenate, [rotated_vecs, -rotated_vecs], axis=-1 Step 4This is the exciting step! You have no doubt been wondering how we will turn these vectors into bucket indexes. By performing np.argmax over the rotations for a given entry, you get the index to the best match! We will use this as a bucket index. * np.argmax(…).astype(np.int32); be sure to use the correct axis! Step 5 In this style of hashing, items which land in bucket 0 of hash table 0 are not necessarily similar to those landing in bucket 0 of hash table 1, so we keep them separate. We do this by offsetting the bucket numbers by ‘n_buckets’. * add buckets and offsets and reshape into a one dimensional array This will return a 1D array of size n_hashes * vec.shape[0].
def our_hash_vectors(vecs, rng, n_buckets, n_hashes, mask=None, verbose=False):""" Args: vecs: tensor of at least 2 dimension, rng: random number generator n_buckets: number of buckets in each hash table n_hashes: the number of hash tables mask: None indicating no mask or a 1D boolean array of length vecs.shape[0], containing the location of padding value verbose: controls prints for debug Returns: A vector of size n_hashes * vecs.shape[0] containing the buckets associated with each input vector per hash table. """# check for even, integer bucket sizesassertisinstance(n_buckets, int) and n_buckets %2==0 rng = fastmath.stop_gradient(tie_in(vecs, rng)) rot_size = n_buckets### Start Code Here### Step 1 ### rotations_shape = (vecs.shape[-1], n_hashes, rot_size //2) random_rotations = fastmath.random.normal(rng, rotations_shape).astype( np.float32)if verbose: print("random.rotations.shape", random_rotations.shape)### Step 2 ###if fastmath.backend_name() =='jax': rotated_vecs = np.einsum('tf,fhb->htb', vecs, random_rotations)if verbose: print("using jax")else:#Step 2a random_rotations = np.reshape(random_rotations, [-1, n_hashes * (rot_size //2)])if verbose: print("random_rotations reshaped", random_rotations.shape)#Step 2b rotated_vecs = np.dot(vecs, random_rotations)if verbose: print("rotated_vecs1", rotated_vecs.shape)#Step 2c rotated_vecs = np.reshape(rotated_vecs, [-1, n_hashes, rot_size//2])if verbose: print("rotated_vecs2", rotated_vecs.shape)#Step 2d rotated_vecs = np.transpose(rotated_vecs, (1, 0, 2))if verbose: print("rotated_vecs3", rotated_vecs.shape)### Step 3 ### rotated_vecs = np.concatenate([rotated_vecs, -rotated_vecs], axis=-1)if verbose: print("rotated_vecs.shape", rotated_vecs.shape)### Step 4 ### buckets = np.argmax(rotated_vecs, axis=-1).astype(np.int32)if verbose: print("buckets.shape", buckets.shape)if verbose: print("buckets", buckets)if mask isnotNone: n_buckets +=1# Create an extra bucket for padding tokens only buckets = np.where(mask[None, :], buckets, n_buckets -1)# buckets is now (n_hashes, seqlen). Next we add offsets so that# bucket numbers from different hashing rounds don't overlap. offsets = tie_in(buckets, np.arange(n_hashes, dtype=np.int32)) offsets = np.reshape(offsets * n_buckets, (-1, 1))### Step 5 ### buckets = np.reshape(buckets + offsets, (-1,))if verbose: print("buckets with offsets", buckets.shape, "\n", buckets)return buckets
# example code. Note for reference, the sizes in this example match the values in the diagram above.ohv_q = np.ones((8, 5)) # (seq_len=8, n_q=5)ohv_n_buckets =4# even numberohv_n_hashes =3with fastmath.use_backend("tf"): ohv_rng = fastmath.random.get_prng(1) ohv = our_hash_vectors( ohv_q, ohv_rng, ohv_n_buckets, ohv_n_hashes, mask=None, verbose=True )print("ohv shape", ohv.shape, "\nohv", ohv) # (ohv_n_hashes * ohv_n_buckets)# note the random number generators do not produce the same results with different backendswith fastmath.use_backend("jax"): ohv_rng = fastmath.random.get_prng(1) ohv = our_hash_vectors(ohv_q, ohv_rng, ohv_n_buckets, ohv_n_hashes, mask=None)print("ohv shape", ohv.shape, "\nohv", ohv) # (ohv_n_hashes * ohv_n_buckets)
---------------------------------------------------------------------------ValueError Traceback (most recent call last)
Cell In[11], line 5 3 ohv_n_buckets =4# even number 4 ohv_n_hashes =3----> 5with fastmath.use_backend("tf"):
6 ohv_rng = fastmath.random.get_prng(1)
7 ohv = our_hash_vectors(
8 ohv_q, ohv_rng, ohv_n_buckets, ohv_n_hashes, mask=None, verbose=True 9 )
File /usr/lib/python3.10/contextlib.py:135, in _GeneratorContextManager.__enter__(self) 133delself.args, self.kwds, self.func
134try:
--> 135returnnext(self.gen) 136exceptStopIteration:
137raiseRuntimeError("generator didn't yield") fromNone
File ~/work/notes/notes-nlp/.venv/lib/python3.10/site-packages/trax/fastmath/ops.py:428, in use_backend(name) 425ifisinstance(name, Backend):
426 name = name.value
--> 428_assert_valid_backend_name(name) 429global override_backend
430 prev_name_or_backend = override_backend
File ~/work/notes/notes-nlp/.venv/lib/python3.10/site-packages/trax/fastmath/ops.py:387, in _assert_valid_backend_name(name) 385if backend_.value == name:
386return--> 387raiseValueError(f'No backend with name {name}')
ValueError: No backend with name tf
since this notebook is ungraded the completed code is provided here for reference
def our_hash_vectors(vecs, rng, n_buckets, n_hashes, mask=None, verbose=False): ““” Args: vecs: tensor of at least 2 dimension, rng: random number generator n_buckets: number of buckets in each hash table n_hashes: the number of hash tables mask: None indicating no mask or a 1D boolean array of length vecs.shape[0], containing the location of padding value verbose: controls prints for debug Returns: A vector of size n_hashes * vecs.shape[0] containing the buckets associated with each input vector per hash table.
"""
# check for even, integer bucket sizes
assert isinstance(n_buckets, int) and n_buckets % 2 == 0
rng = fastmath.stop_gradient(tie_in(vecs, rng))
rot_size = n_buckets
### Start Code Here
### Step 1 ###
rotations_shape = (vecs.shape[-1], n_hashes, rot_size // 2)
random_rotations = fastmath.random.normal(rng, rotations_shape).astype(
np.float32)
if verbose: print("random.rotations.shape", random_rotations.shape)
### Step 2 ###
if fastmath.backend_name() == 'jax':
rotated_vecs = np.einsum('tf,fhb->htb', vecs, random_rotations)
if verbose: print("using jax")
else:
#Step 2a
random_rotations = np.reshape(random_rotations,
[-1, n_hashes * (rot_size // 2)])
if verbose: print("random_rotations reshaped", random_rotations.shape)
#Step 2b
rotated_vecs = np.dot(vecs, random_rotations)
if verbose: print("rotated_vecs1", rotated_vecs.shape)
#Step 2c
rotated_vecs = np.reshape(rotated_vecs, [-1, n_hashes, rot_size//2])
if verbose: print("rotated_vecs2", rotated_vecs.shape)
#Step 2d
rotated_vecs = np.transpose(rotated_vecs, (1, 0, 2))
if verbose: print("rotated_vecs3", rotated_vecs.shape)
### Step 3 ###
rotated_vecs = np.concatenate([rotated_vecs, -rotated_vecs], axis=-1)
if verbose: print("rotated_vecs.shape", rotated_vecs.shape)
### Step 4 ###
buckets = np.argmax(rotated_vecs, axis=-1).astype(np.int32)
if verbose: print("buckets.shape", buckets.shape)
if verbose: print("buckets", buckets)
if mask is not None:
n_buckets += 1 # Create an extra bucket for padding tokens only
buckets = np.where(mask[None, :], buckets, n_buckets - 1)
# buckets is now (n_hashes, seqlen). Next we add offsets so that
# bucket numbers from different hashing rounds don't overlap.
offsets = tie_in(buckets, np.arange(n_hashes, dtype=np.int32))
offsets = np.reshape(offsets * n_buckets, (-1, 1))
### Step 5 ###
buckets = np.reshape(buckets + offsets, (-1,))
if verbose: print("buckets with offsets", buckets.shape, "\n", buckets)
return buckets```
## Part 3.3 Sorting Buckets
Great! Now that we have a hash function, we can work on sorting our buckets and performing our matrix operations. We’ll walk through this algorithm in small steps: * sort_buckets - we’ll perform the sort * softmax * dotandv - do the matrix math to form the dotproduct and output These routines will demonstrate a simplified version of the algorithm. We won’t address masking and variable bucket sizes but will consider how they would be handled.
sort_buckets
At this point, we have called the hash function and were returned the associated buckets. For example, if we started with q[n_seq,n_q], with n_hash = 2; n_buckets = 4; n_seq = 8 we might be returned: bucket = [0,1,2,3,0,1,2,3, 4,5,6,7,4,5,6,7] Note that it is n_hash*n_seq long and that the bucket values for each hash have been offset by n_hash so the numbers do not overlap. Going forward, we going to sort this array of buckets to group together members of the same (hash,bucket) pair.
InstructionsStep 1 Our goal is to sort q rather than the bucket list, so we will need to track the association of the buckets to their elements in q. * using np.arange, create ticker, just a sequence of numbers (0..n_hashed * seqlen) associating members of q with their bucket.
Step 2 This step is provided to you as it is a bit difficult to describe. We want to disambiguate elements that map to the same bucket. When a sorting routine encounters a situation where multiple entries have the same value, it can correctly choose any entry to go first. This makes testing ambiguous. This prevents that. We multiply all the buckets by seqlen and then add ticker % seqlen
Step 3 Here we are! Ready to sort. This is the exciting part. * Utilize fastmath.sort_key_val and sort buckets_and_t and ticker.
Step 4 We need to be able to undo the sort at the end to get things back into their correct locations * sort sticker and ticker to for the reverse map
Step 5 create our sorted q and sorted v * use np.take and st to grab correct values in q for the sorted values, sq. Use axis=0.
Use the example code below the routine to check and help debug your results.
def sort_buckets(buckets, q, v, n_buckets, n_hashes, seqlen, verbose=True):""" Args: buckets: tensor of at least 2 dimension, n_buckets: number of buckets in each hash table n_hashes: the number of hash tables """if verbose: print("---sort_buckets--")## Step 1 ticker = np.arange(n_hashes * seqlen)if verbose: print("ticker",ticker.shape, ticker)## Step 2 buckets_and_t = seqlen * buckets + (ticker % seqlen)if verbose: print("buckets_and_t",buckets_and_t.shape, buckets_and_t)# Hash-based sort ("s" at the start of variable names means "sorted")#Step 3 sbuckets_and_t, sticker = fastmath.sort_key_val( buckets_and_t, ticker, dimension=-1)if verbose: print("sbuckets_and_t",sbuckets_and_t.shape, sbuckets_and_t)if verbose: print("sticker",sticker.shape, sticker)#Step 4 _, undo_sort = fastmath.sort_key_val(sticker, ticker, dimension=-1)if verbose: print("undo_sort",undo_sort.shape, undo_sort)#Step 4 st = (sticker % seqlen) sq = np.take(q, st, axis=0) sv = np.take(v, st, axis=0)return sq, sv, sticker, undo_sort
# since this notebook is ungraded the completed code is provided here for reference
def sort_buckets(buckets, q, v, n_buckets, n_hashes, seqlen, verbose=True):
"""
Args:
buckets: tensor of at least 2 dimension,
n_buckets: number of buckets in each hash table
n_hashes: the number of hash tables
"""
if verbose: print("---sort_buckets--")
## Step 1
ticker = np.arange(n_hashes * seqlen)
if verbose: print("ticker",ticker.shape, ticker)
## Step 2
buckets_and_t = seqlen * buckets + (ticker % seqlen)
if verbose: print("buckets_and_t",buckets_and_t.shape, buckets_and_t)
# Hash-based sort ("s" at the start of variable names means "sorted")
#Step 3
sbuckets_and_t, sticker = fastmath.sort_key_val(
buckets_and_t, ticker, dimension=-1)
if verbose: print("sbuckets_and_t",sbuckets_and_t.shape, sbuckets_and_t)
if verbose: print("sticker",sticker.shape, sticker)
#Step 4
_, undo_sort = fastmath.sort_key_val(sticker, ticker, dimension=-1)
if verbose: print("undo_sort",undo_sort.shape, undo_sort)
#Step 4
st = (sticker % seqlen)
sq = np.take(q, st, axis=0)
sv = np.take(v, st, axis=0)
return sq, sv, sticker, undo_sort
## Part 3.4 Chunked dot product attention
Now let’s create the dot product attention. We have sorted Q so that elements that the hash has determined are likely to be similar are adjacent to each other. We now want to perform the dot-product within those limited regions - in ‘chunks’.
Figure 11: Performing dot product in ‘chunks’
The example we have been working on is shown above, with sequences of 8, 2 hashes, 4 buckets and, conveniently, the content of Q was such that when sorted, there were 2 entries in each bucket. If we reshape Q into a (8,2,n_q), we can use numpy matmul to perform the operation. Numpy matmul will treat the inputs as a stack of matrices residing in the last two indexes. This will allow us to matrix multiply Q with itself in chunks and later can also be used to perform the matrix multiply with v.
We will perform a softmax on the output of the dot product of Q and Q, but in this case, there is a bit more to the story. Recall the output of the hash had multiple hash tables. We will perform softmax on those separately and then must combine them. This is where the form of softmax we defined at the top of the notebook comes into play. The routines below will utilize the logsumexp values that the our_softmax routine calculates.
There is a good deal of reshaping to get things into the right formats. The code has many print statements that match the expected values below. You can use those to check your work as you go along. If you don’t do a lot of 3-dimensional matrix multiplications in your daily life, it might be worthwhile to open a spare cell and practice a few simple examples to get the hang of it! Here is one to start with:
a = np.arange(16*3).reshape((16, 3))chunksize =2ar = np.reshape( a, (-1, chunksize, a.shape[-1])) # the -1 usage is very handy, see numpy reshapeprint(ar.shape)
(8, 2, 3)
InstructionsStep 1 Reshaping Q * np.reshape sq (sorted q) to be 3 dimensions. The middle dimension is the size of the ‘chunk’ specified by kv_chunk_len * np.swapaxes to perform a ‘transpose’ on the reshaped sq, but only on the last two dimension * np.matmul the two values.
Step 2 * use our_softmax to perform the softmax on the dot product. Don’t forget passthrough
Step 3 * np.reshape sv. Like sq, the middle dimension is the size of the ‘chunk’ specified by kv_chunk_len * np.matmul dotlike and the reshaped sv * np.reshape so to a two dimensional array with the last dimension stays the same (so.shape[-1]) * logits also needs reshaping, we’ll do that.
Step 4 Now we can undo the sort. * use np.take and undo_sort and axis = 0 to unsort so * do the same with slogits.
Step 5 This step combines the results of multiple hashes. Recall, the softmax was only over the values in one hash, this extends it to all the hashes. Read through it, the code is provided. Note this is taking place after the matrix multiply with v while the softmax output is used before the multiply. How does this achieve the correct result?
# since this notebook is ungraded the completed code is provided here for reference
def dotandv(sq, sv, undo_sort, kv_chunk_len, n_hashes, seqlen, passthrough, verbose=False ):
# Step 1
rsq = np.reshape(sq,(-1, kv_chunk_len, sq.shape[-1]))
rsqt = np.swapaxes(rsq, -1, -2)
if verbose: print("rsq.shape,rsqt.shape: ", rsq.shape,rsqt.shape)
dotlike = np.matmul(rsq, rsqt)
if verbose: print("dotlike\n", dotlike)
#Step 2
dotlike, slogits = our_softmax(dotlike, passthrough)
if verbose: print("dotlike post softmax\n", dotlike)
#Step 3
vr = np.reshape(sv, (-1, kv_chunk_len, sv.shape[-1]))
if verbose: print("dotlike.shape, vr.shape:", dotlike.shape, vr.shape)
so = np.matmul(dotlike, vr)
if verbose: print("so.shape:", so.shape)
so = np.reshape(so, (-1, so.shape[-1]))
slogits = np.reshape(slogits, (-1,)) # provided
if verbose: print("so.shape,slogits.shape", so.shape, slogits.shape)
#Step 4
o = np.take(so, undo_sort, axis=0)
logits = np.take(slogits, undo_sort, axis=0)
if verbose: print("o.shape,o", o.shape, o)
if verbose: print("logits.shape, logits", logits.shape, logits)
#Step 5 (Provided)
if n_hashes > 1:
o = np.reshape(o, (n_hashes, seqlen, o.shape[-1]))
logits = np.reshape(logits, (n_hashes, seqlen, 1))
probs = np.exp(logits - fastmath.logsumexp(logits, axis=0, keepdims=True))
o = np.sum(o * probs, axis=0)
return(o)
Great! You have now done examples code for most of the operation that are unique to the LSH version of self-attention. I’m sure at this point you are wondering what happens if the number of entries in a bucket is not evenly distributed the way our example is. It is possible, for example for all of the seqlen entries to land in one bucket. Further, since the buckets are not aligned, our ‘chunks’ may be misaligned with the start of the bucket. The implementation addresses this by attending to adjacent chunks as was described in the lecture:
Figure 9: Misaligned Access, looking before and after
Hopefully, having implemented parts of this, you will appreciate this diagram more fully.
Part 3.5 OurLSHSelfAttention
You can examine the full implementations below. Area’s we did not ‘attend to’ in our implementations above include variable bucket sizes and masking. We will instantiate a layer of the full implementation below. We tried to use the same variable names above to make it easier to decipher the full version. Note that some of the functionality we implemented in our routines is split between attend and forward_unbatched. We’ve inserted our version of hash below, but use the original version of attend.
# original version from trax 1.3.4def attend( q, k=None, v=None, q_chunk_len=None, kv_chunk_len=None, n_chunks_before=0, n_chunks_after=0, mask_fn=None, q_info=None, kv_info=None, dropout=0.0, rng=None,):"""Dot-product attention, with optional chunking and/or masking. Args: q: Query vectors, shape [q_len, d_qk] k: Key vectors, shape [kv_len, d_qk]; or None v: Value vectors, shape [kv_len, d_v] q_chunk_len: Set to non-zero to enable chunking for query vectors kv_chunk_len: Set to non-zero to enable chunking for key/value vectors n_chunks_before: Number of adjacent previous chunks to attend to n_chunks_after: Number of adjacent subsequent chunks to attend to mask_fn: TODO(kitaev) doc q_info: Query-associated metadata for masking kv_info: Key-associated metadata for masking dropout: Dropout rate rng: RNG for dropout Returns: A tuple (output, dots_logsumexp). The output has shape [q_len, d_v], and dots_logsumexp has shape [q_len]. The logsumexp of the attention probabilities is useful for combining multiple rounds of attention (as in LSH attention). """assert v isnotNone share_qk = k isNoneif q_info isNone: q_info = np.arange(q.shape[-2], dtype=np.int32)if kv_info isNoneandnot share_qk: kv_info = np.arange(v.shape[-2], dtype=np.int32)# Split q/k/v into chunks along the time axis, if desired.if q_chunk_len isnotNone: q = np.reshape(q, (-1, q_chunk_len, q.shape[-1])) q_info = np.reshape(q_info, (-1, q_chunk_len))if share_qk:assert kv_chunk_len isNoneor kv_chunk_len == q_chunk_len k = q kv_chunk_len = q_chunk_lenif kv_info isNone: kv_info = q_infoelif kv_chunk_len isnotNone:# kv_info is not None, but reshape as required. kv_info = np.reshape(kv_info, (-1, kv_chunk_len))elif kv_chunk_len isnotNone: k = np.reshape(k, (-1, kv_chunk_len, k.shape[-1])) kv_info = np.reshape(kv_info, (-1, kv_chunk_len))if kv_chunk_len isnotNone: v = np.reshape(v, (-1, kv_chunk_len, v.shape[-1]))if share_qk: k = length_normalized(k) k = k / np.sqrt(k.shape[-1])# Optionally include adjacent chunks.if q_chunk_len isnotNoneor kv_chunk_len isnotNone:assert q_chunk_len isnotNoneand kv_chunk_len isnotNoneelse:assert n_chunks_before ==0and n_chunks_after ==0 k = look_adjacent(k, n_chunks_before, n_chunks_after) v = look_adjacent(v, n_chunks_before, n_chunks_after) kv_info = look_adjacent(kv_info, n_chunks_before, n_chunks_after)# Dot-product attention. dots = np.matmul(q, np.swapaxes(k, -1, -2))# Maskingif mask_fn isnotNone: dots = mask_fn(dots, q_info[..., :, None], kv_info[..., None, :])# Softmax. dots_logsumexp = fastmath.logsumexp(dots, axis=-1, keepdims=True) dots = np.exp(dots - dots_logsumexp)if dropout >0.0:assert rng isnotNone# Dropout is broadcast across the bin dimension dropout_shape = (dots.shape[-2], dots.shape[-1])# keep_prob = tie_in(dots, 1.0- dropout) keep = fastmath.random.bernoulli(rng, keep_prob, dropout_shape) multiplier = keep.astype(dots.dtype) / tie_in(keep, keep_prob) dots = dots * multiplier# The softmax normalizer (dots_logsumexp) is used by multi-round LSH attn. out = np.matmul(dots, v) out = np.reshape(out, (-1, out.shape[-1])) dots_logsumexp = np.reshape(dots_logsumexp, (-1,))return out, dots_logsumexp
class OurLSHSelfAttention(tl.LSHSelfAttention):"""Our simplified LSH self-attention """def forward_unbatched(self, x, mask=None, *, weights, state, rng, update_state): attend_rng, output_rng = fastmath.random.split(rng) w_q, w_v, w_o = weights q = np.matmul(x, w_q) v = np.matmul(x, w_v)if update_state: _, old_hash_rng = state hash_rng, hash_subrng = fastmath.random.split(old_hash_rng)# buckets = self.hash_vectors(q, hash_subrng, mask) # original## use our version of hash buckets = our_hash_vectors( q, hash_subrng, self.n_buckets, self.n_hashes, mask=mask ) s_buckets = bucketsifself._max_length_for_buckets: length =self.n_hashes *self._max_length_for_bucketsif buckets.shape[0] < length: s_buckets = np.concatenate( [buckets, np.zeros(length - buckets.shape[0], dtype=np.int32)], axis=0, ) state = (s_buckets, hash_rng)else: buckets, _ = stateifself._max_length_for_buckets: buckets = buckets[: self.n_hashes * x.shape[0]] seqlen = x.shape[0]assertint(buckets.shape[0]) ==self.n_hashes * seqlen ticker = tie_in(x, np.arange(self.n_hashes * seqlen, dtype=np.int32)) buckets_and_t = seqlen * buckets + (ticker % seqlen) buckets_and_t = fastmath.stop_gradient(buckets_and_t)# Hash-based sort ("s" at the start of variable names means "sorted") sbuckets_and_t, sticker = fastmath.sort_key_val( buckets_and_t, ticker, dimension=-1 ) _, undo_sort = fastmath.sort_key_val(sticker, ticker, dimension=-1) sbuckets_and_t = fastmath.stop_gradient(sbuckets_and_t) sticker = fastmath.stop_gradient(sticker) undo_sort = fastmath.stop_gradient(undo_sort) st = sticker % seqlen sq = np.take(q, st, axis=0) sv = np.take(v, st, axis=0) mask_fn = functools.partial( mask_self_attention, causal=self.causal, exclude_self=True, masked=self.masked, ) q_info = stassert (mask isnotNone) ==self.masked kv_info =Noneifself.masked:# mask is a boolean array (True means "is valid token") smask = np.take(mask, st, axis=0) ones_like_mask = tie_in(x, np.ones_like(smask, dtype=np.int32)) kv_info = q_info * np.where(smask, ones_like_mask, -ones_like_mask)## use original version of attend (could use ours but lacks masks and masking) so, slogits = attend( sq, k=None, v=sv, q_chunk_len=self.chunk_len, n_chunks_before=self.n_chunks_before, n_chunks_after=self.n_chunks_after, mask_fn=mask_fn, q_info=q_info, kv_info=kv_info, dropout=self.attention_dropout, rng=attend_rng, )# np.take(so, undo_sort, axis=0); np.take(slogits, undo_sort, axis=0) would# also work, but these helpers include performance optimizations for TPU. o = permute_via_gather(so, undo_sort, sticker, axis=0) logits = permute_via_sort(slogits, sticker, buckets_and_t, axis=-1)ifself.n_hashes >1: o = np.reshape(o, (self.n_hashes, seqlen, o.shape[-1])) logits = np.reshape(logits, (self.n_hashes, seqlen, 1)) probs = np.exp(logits - fastmath.logsumexp(logits, axis=0, keepdims=True)) o = np.sum(o * probs, axis=0)assert o.shape == (seqlen, w_v.shape[-1]) out = np.matmul(o, w_o) out = apply_broadcasted_dropout(out, self.output_dropout, output_rng)return out, state
